PRC-16-205
SKU: 91340017
ShippingPowered Rackmount Cage for 16 extenders
Interested in this product?
Powered Rackmount Cage for 16 extenders
Details
Elevate Your Installation with Reliable Rack-Mount Solutions
PRC-16-205 is a rack mount cage accessory enclosing up to 16x VINX-120-HDMI-ENC or VINX-110-HDMI-DEC units in any combination, also providing power source for every installed device.
Reliable, safe, and secure operation is assured by numerous built-in protections against short circuits and overloads.
Specification Table
| Specifications | |
| DC output number | 16 |
| Nominal power | 200 W |
| DC output voltage | 5V |
| Rated current per output port | 2.5 A |
| Input voltage rang, nominal | 100 - 240 VAC |
| Input frequency range | 47 - 63 Hz |
| Operating temperature range | Between 0 and +50 °C (+32 .. +122 °F) |
| Rack height | 3RU |
| Dimensions | 482.4 x 319 x 132.5mm |
| Weight | 7.8 kg |
| Compliance | CE |
| Warranty | 3 years |

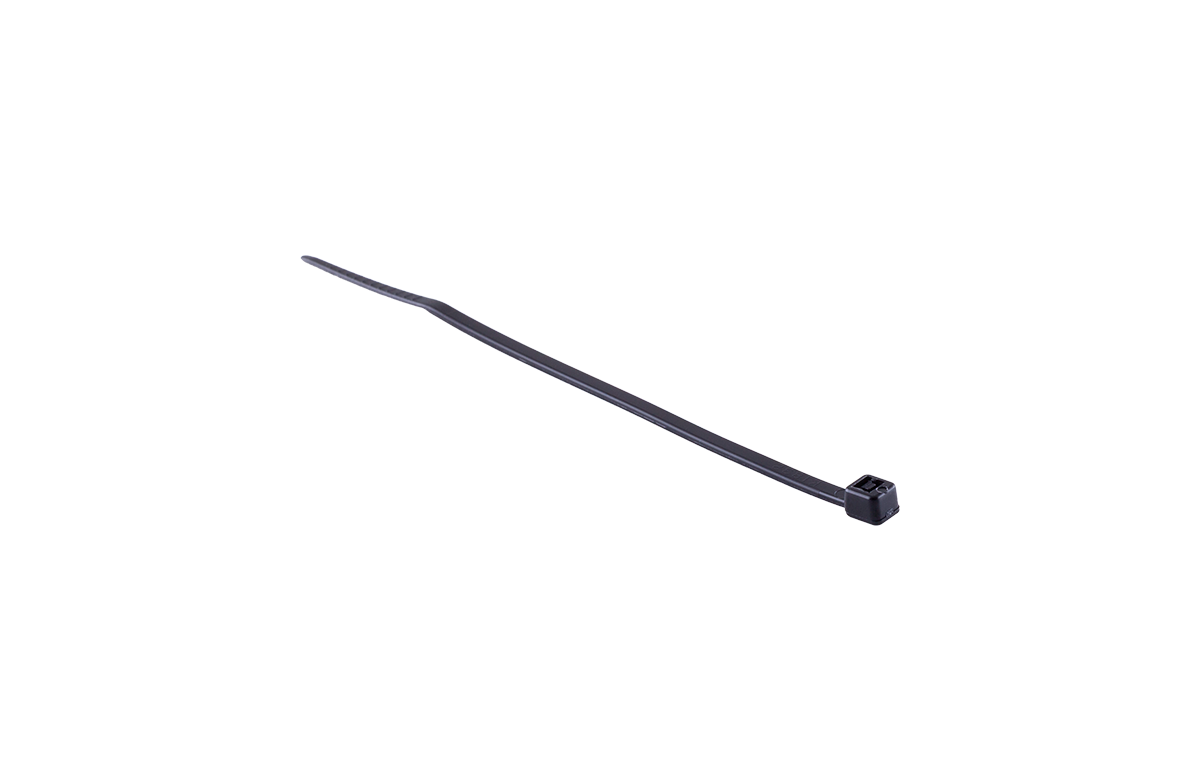

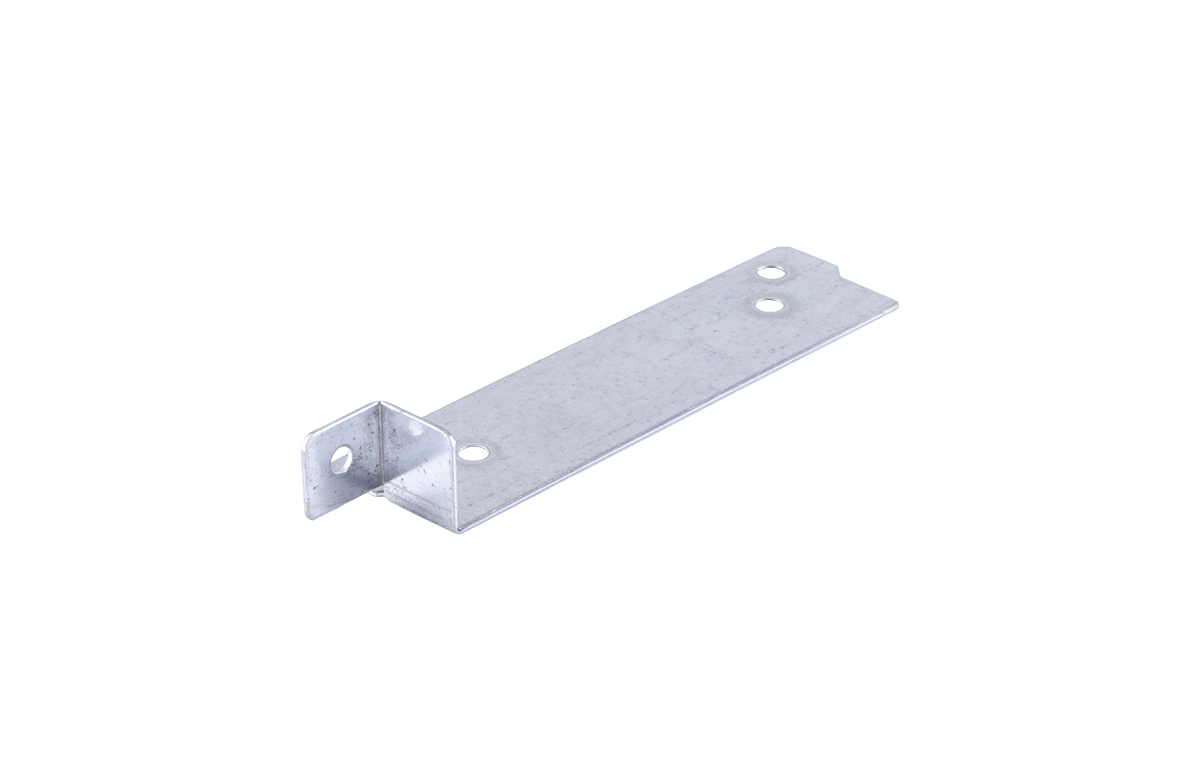

Supplied Accessories
4 products
