CAB-HDMI20-AOC5000H
SKU: 13750097
ShippingInterested in this product?

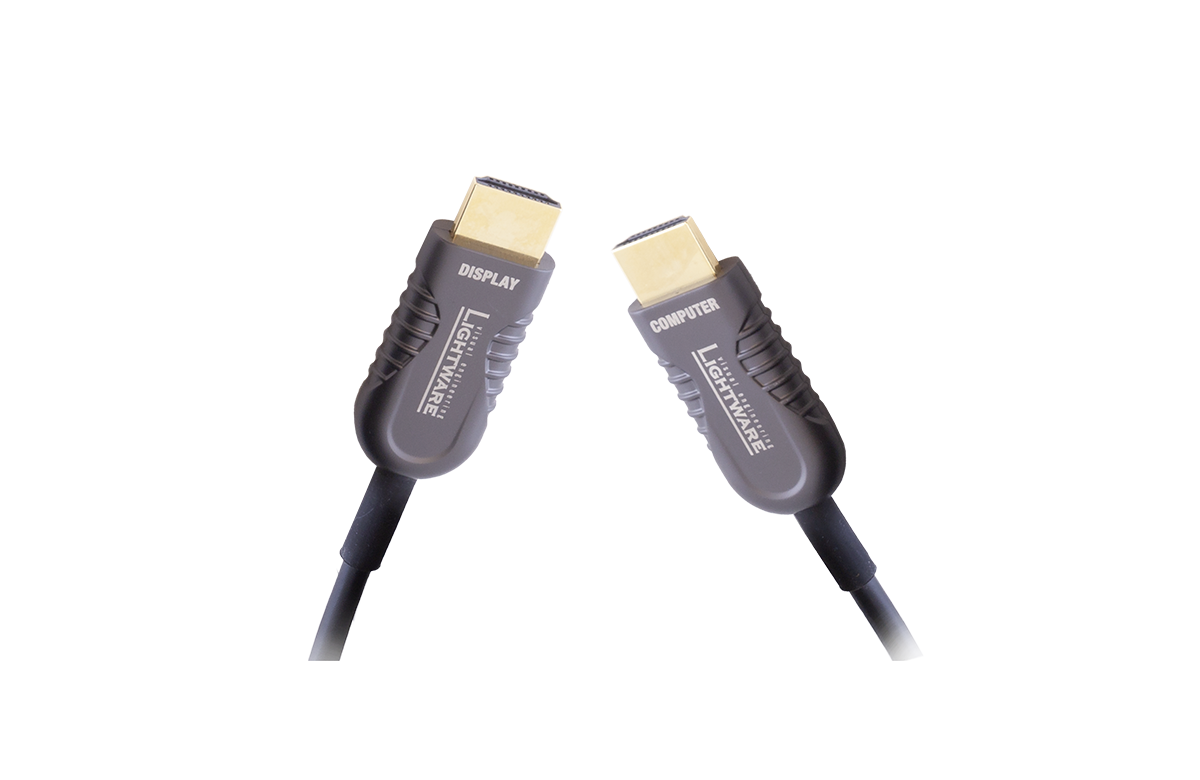

50m (164.04ft) Premium High Speed HDMI 2.0b Active Optical cable
Details
Featuring our HDMI 2.0 Active Optical Cabels and backward compatibility for crystal-clear digital images. Supports EDID, HDCP2.2, HDR, CEC, ARC.Built-in buffer chip for robust signal integrity and reliable connection. Strong zinc alloy housing and durable gold-plated connectors. Available in 10m, 15m, 20m, 30m, 50m lengths.
Specification Table
| Interface | Connectors | 2 × HDMI Type-A male |
| Technical parameters | HDMI standard | HDMI 2.0b |
| Video format | Up to 4096×2160@60Hz at RGB 4:4:4 and 5120×2160@30Hz at RGB 4:4:4 | |
| Data rate | 18 Gbps | |
| Control signal | HDCP 2.2, EDID, CEC, DDC, HEC, HDR | |
| Audio support | Multichannel Audio, Dolby TrueHD, DTS-HD Master Audio, ARC | |
| Power | No external power required | |
| Operating temperature | 0 °C to +50 °C | |
| Flammability | VW-1 |
| Physical parameters | Length | 50 m |
| Cable diameter | 4.5 mm | |
| Wire material | OM3 fiber, copper | |
| Jacket material | PVC | |
| Mold material | Metal | |
| Pin coating | Gold-plated | |
| Bending radius | 45 mm | |
| Humidity | 0 % to 80 % RH | |
| Cable filler | Kevlar | |
| Compliance | RoHS, REACH (EC 1907/2006) | |
| Color | Black |
Features
Bandwidth up to 18Gbps
Up to 4096x2160@60Hz
at RGB 4:4:4 video resolution
Built-in buffer chip provides signal integrity
and reliable connection
No external power needed
