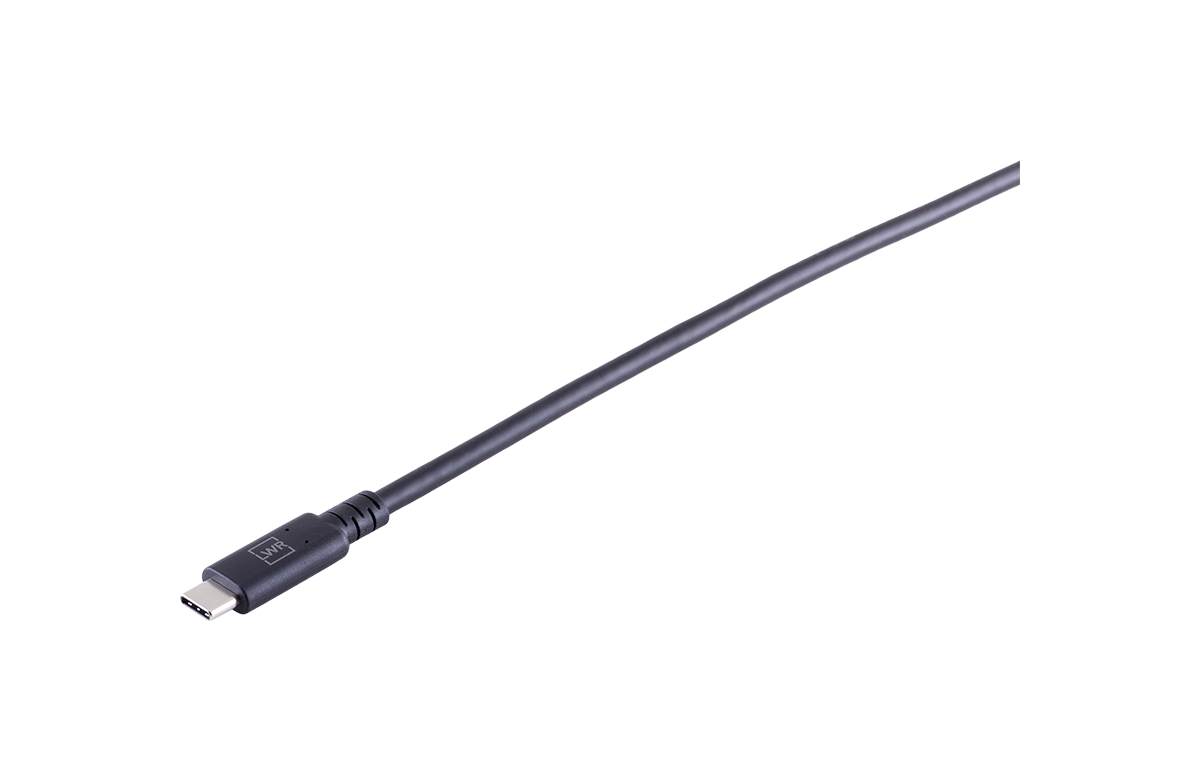

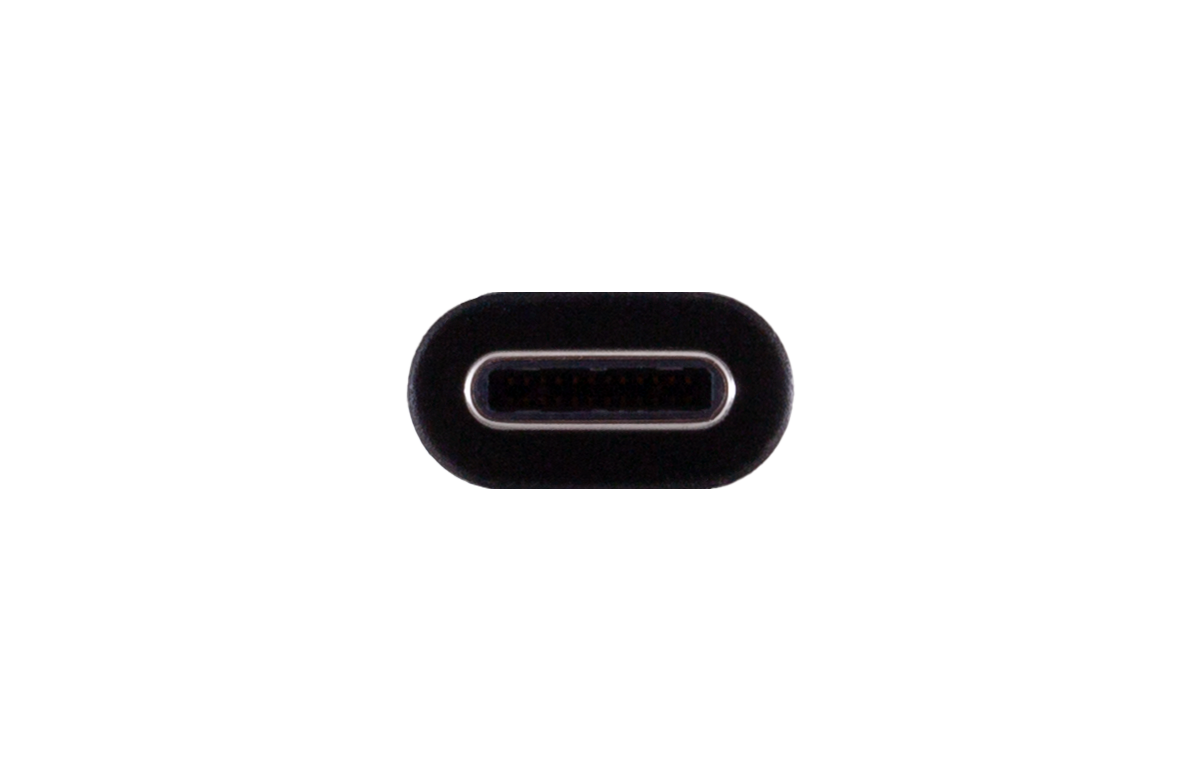

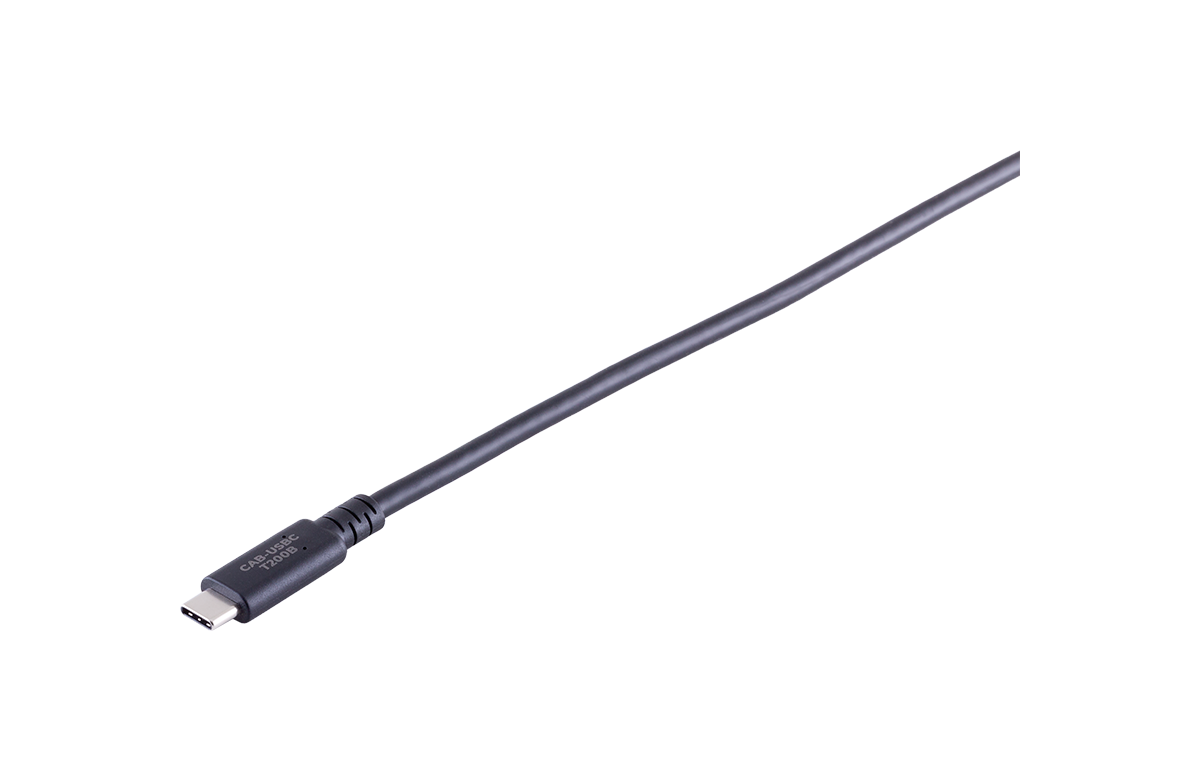

CAB-USBC-T200B
SKU: 13740017
Shipping2m (6.56ft) Full-Featured USB-C cable for USB3.2 Gen 2x2, 4K60 Video and 60W/3A Charging
Details
Specification Table
| Interface | Connectors | 2 × USB Type-C male |
| Technical parameters | Maximum data speed | 10 Gbps (5 Gbps/lane) |
| Data type | USB 3.2 Gen 1×2, USB 2.0, USB 1.1 | |
| eMarker chip | Yes | |
| Displayport alternate mode | Yes, HBR2, 2-4-lane | |
| Video format | Up to 4096×2160@60Hz at RGB 4:4:4 and 5120×2160@30Hz at RGB 4:4:4 | |
| Number of USB3 tier | 0 | |
| Number of USB2 tier | 0 | |
| Rated voltage | 20 V | |
| Rated current | 3 A | |
| Operating temperature | –10 °C to +60 °C | |
| Flammability | TBD |
| Physical parameters | Length | 2 m |
| Cable diameter | 4.8 mm | |
| Jacket material | PVC | |
| Wire material | Copper, 32 AWG | |
| Mold material | PVC | |
| Pin coating | Gold-plated | |
| Bending radius | 19.2 mm | |
| Pulling force | 4 kg | |
| Compliance | RoHS, REACH (EC 1907/2006) | |
| Color | Black |
This full-featured USB-C cable transmits USB 3.2 Gen 2x2 (20Gbps) data, USB 2.0, DisplayPort Alternate Mode video, and up to 60W USB Power Delivery (PD) to keep presenter laptops charged over a single, short-distance connection. The cable adds tiers neither to USB2 nor to USB3 topology. Both the 2-lane and 4-lane DP Alt mode signals are handled.
The cable proved itself to work with great efficiency with our USB-C capable Taurus UCX as well as with various source devices. Its reliability, build-quality and technical parameters make this accessory our number one choice for projects involving USB-C connectivity. The soft-touch TPE outer jacket and gold-plated connectors provide a premium look and feel to this 2-meter cable.
The cable has been fully tested and optimized for out-of-the-box reliability with the Lightware Taurus product family and a wide range of global source devices.
Premium Companion Accessories (sold separately)
C-PopUp-20 Enclosure: A sleek, desk-mounted pop-up interface that hides cables beneath the table surface or podium when not in use, preserving clean, premium executive aesthetics.
C-LOCK Cable flange: This accessory enhances safety and reliability by offering a 2-point securing for connected USB-C cables.
Features
Full-Featured USB-C
USB3.2 Gen 1x2 10Gbps
60W/3A Charging
