CAB-USBCM-USBCF-L150B
SKU: 13740040
Shipping1.5m (4.92ft) USB-C PORTSAVER cable for USB3.2 Gen 1x1, 4K Video and 60W/3A Charging, for Lightware USB-C AOC cables
Details
Specification Table

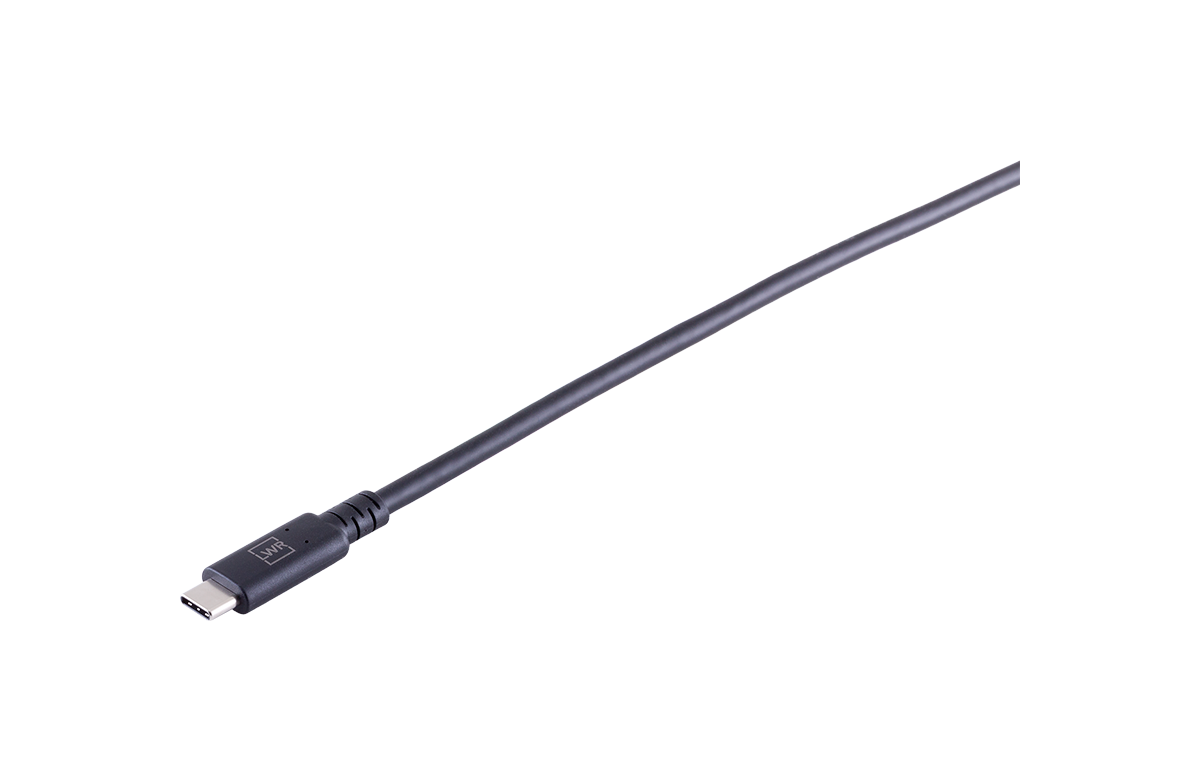

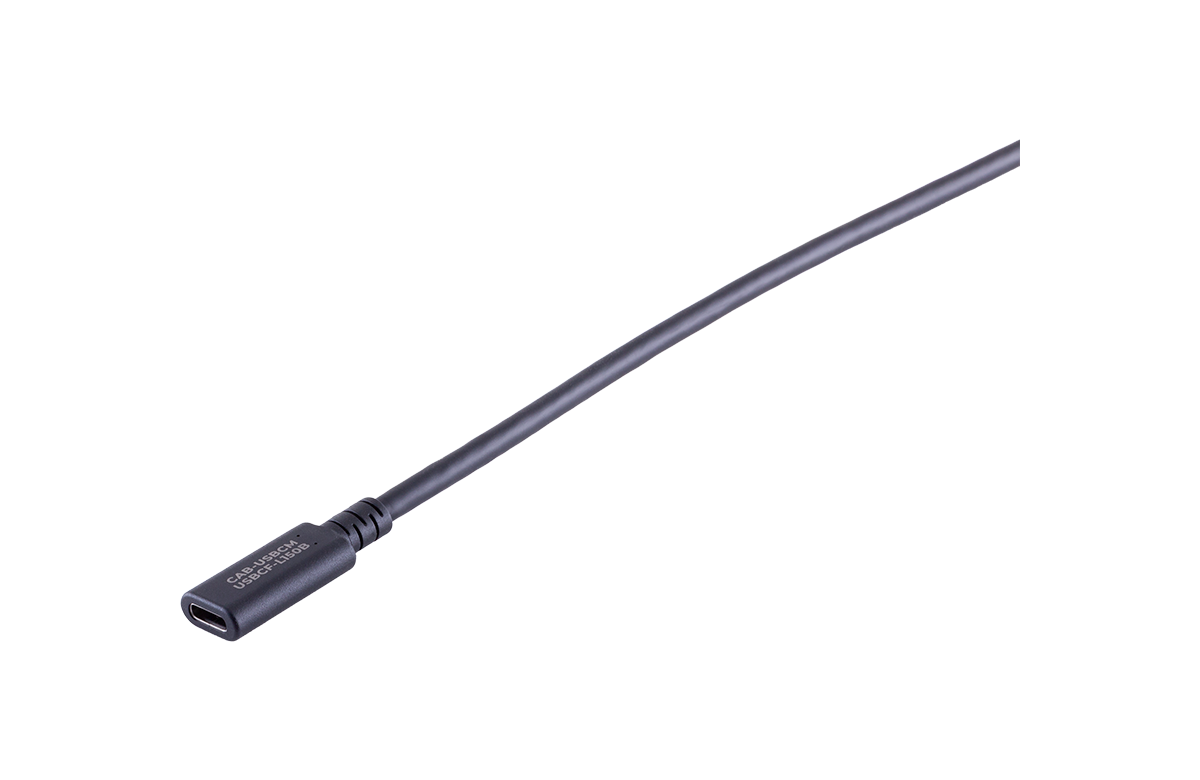

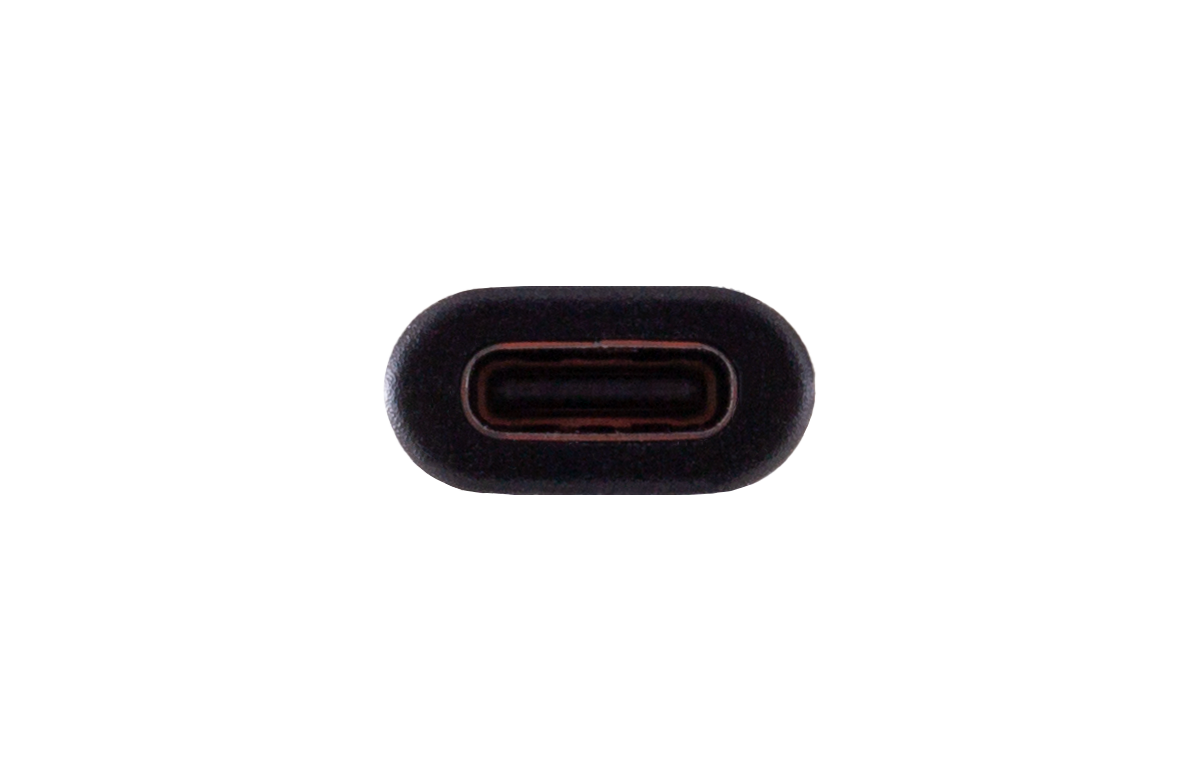

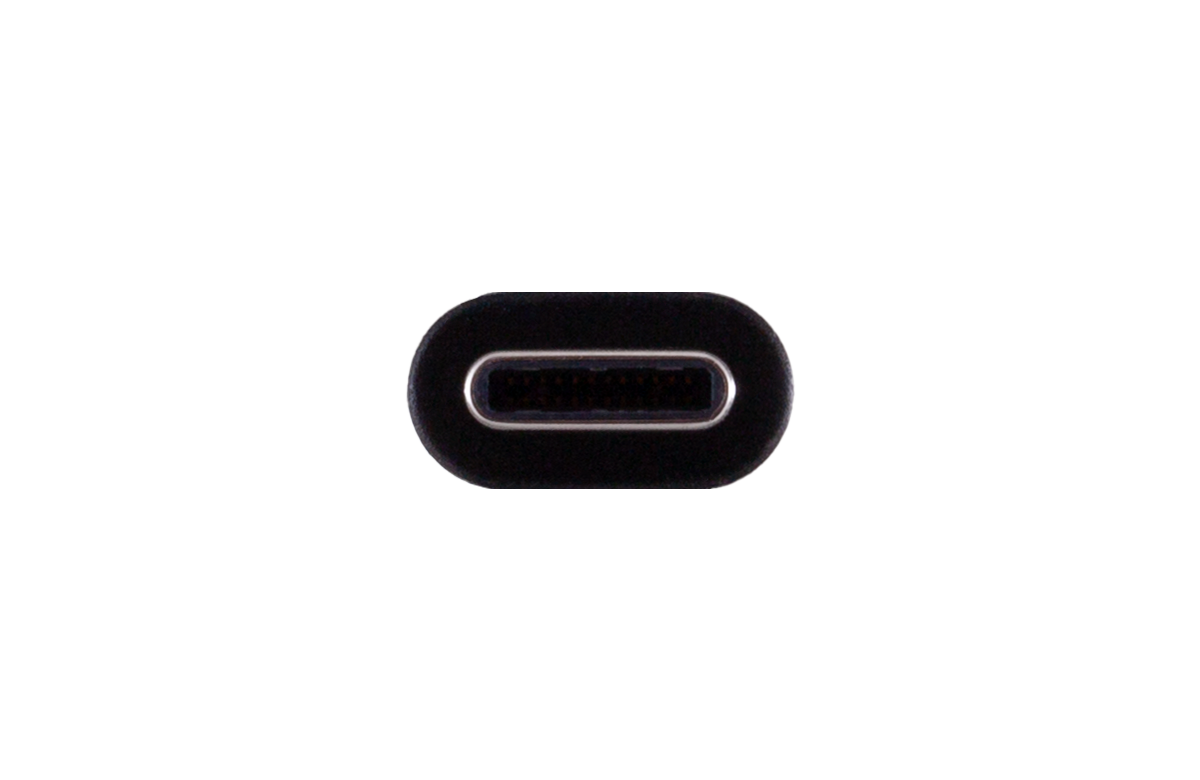

| Interface | Connectors | 1 × USB Type-C male, 1 × USB Type-C female |
| Technical parameters | Maximum data speed | 5 Gbps (5 Gbps/lane) |
| Data type | USB 3.2 Gen 1×1, USB 2.0, USB 1.1 | |
| Displayport alternate mode | Yes, HBR3, 2-lane | |
| Video format | Up to 4096×2160@60Hz at RGB 4:4:4 and 5120×2160@30Hz at RGB 4:4:4 | |
| Number of USB3 tier | 0 | |
| Number of USB2 tier | 0 | |
| Rated voltage | 20 V | |
| Rated current | 3 A | |
| Operating temperature | –10 °C to +60 °C | |
| Flammability | VW-1 |
| Physical parameters | Length | 1.5 m |
| Cable diameter | 5.0 mm | |
| Jacket material | TPE | |
| Wire material | Copper, 31 AWG | |
| Mold material | PVC | |
| Pin coating | Gold-plated | |
| Bending radius | 20.0 mm | |
| Pulling force | 4 kg | |
| Compliance | RoHS, REACH | |
| Color | Black |
| Note | On some hosts, USB 2.0 data may not work unless the connector at the extension point is flipped (reversed orientation) |

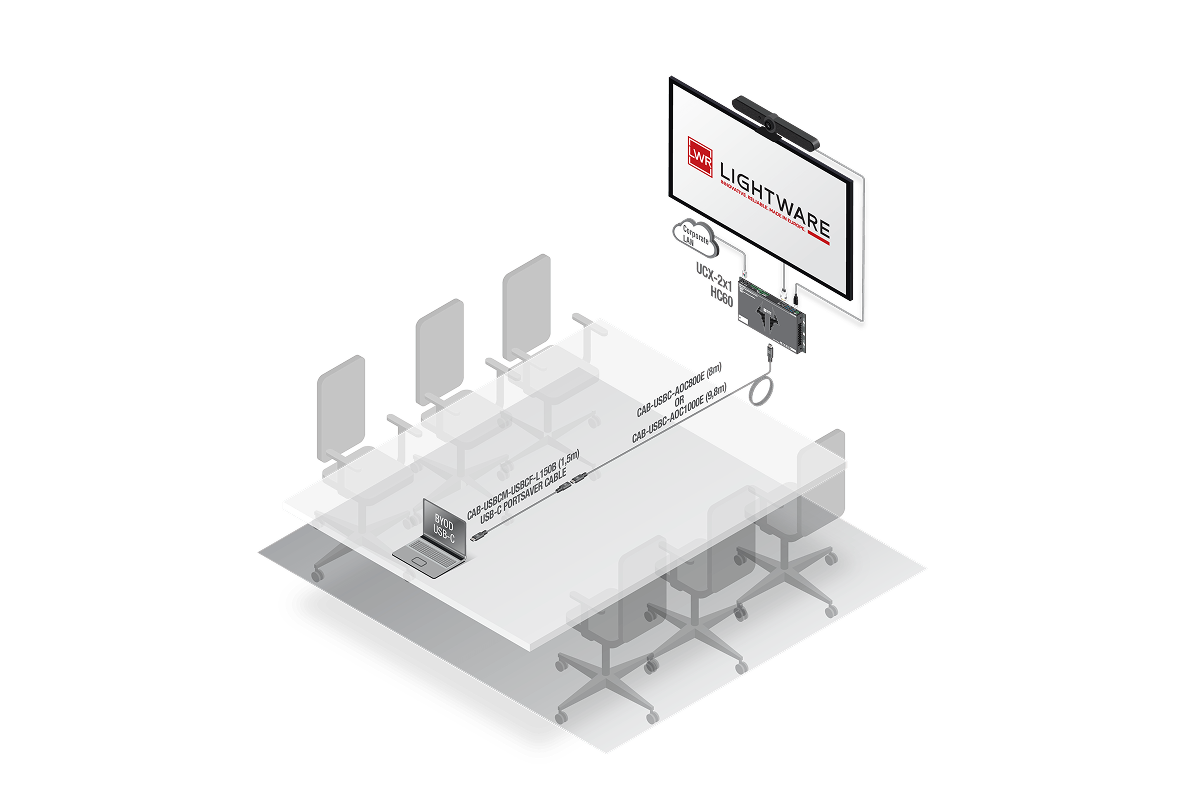

This full-featured USB-C extension cable transmits USB 3.2 Gen 1x1 data, USB 2.0, DisplayPort Alternate Mode video, and up to 60W USB Power Delivery (PD). It is specifically designed to protect the connectors of Lightware’s USB-C Active Optical Cables from daily wear and tear while extending reach. Its compact connector housing easily fits displays and wall plates where bulky USB-C plugs cannot fit.
The cable operates transparently, introducing no additional tiers to either USB 2.0 or USB 3.x topologies, and seamlessly supports both 2-lane and 4-lane DP Alt Mode signals. Featuring a soft-touch TPE outer jacket and gold-plated connectors, this 1.5-meter cable delivers a premium look and feel, and is fully tested and optimized for out-of-the-box reliability with the Taurus UCX family and a wide range of source devices.
Premium Companion Accessories (sold separately)
C-LOCK Cable flange: This accessory enhances safety and reliability by offering a 2-point securing for connected USB-C cables.
Features
Full-Featured USB-C
Portsaver
60W/3A Charging
