UCX-4x3-TPX-TX30-R
SKU: 91310106
Coming soonRack-mountable USB Type-C and HDMI Matrix Switcher Transmitter
Details
The UCX-4×3-TPX-TX30-R is a rack-mountable Taurus transmitter designed for dedicated point-to-point AV extension. Built on the Taurus TPX platform, it delivers the full UCX feature set over a direct SDVoE connection, providing deterministic, low-latency signal transmission between a transmitter and a receiver without the need for a network switch.
Its rack-mountable design, rear-facing connectors, and internal power supply support clean and reliable installation in AV racks, lecterns, or credenzas. The high-performance built-in power adapter enables up to 2x 100W power delivery on both USB-C ports, while it can simultaneously provide 2x 30W PoE+ power to the connected devices, simplifying system design and reducing the need for external power supplies.

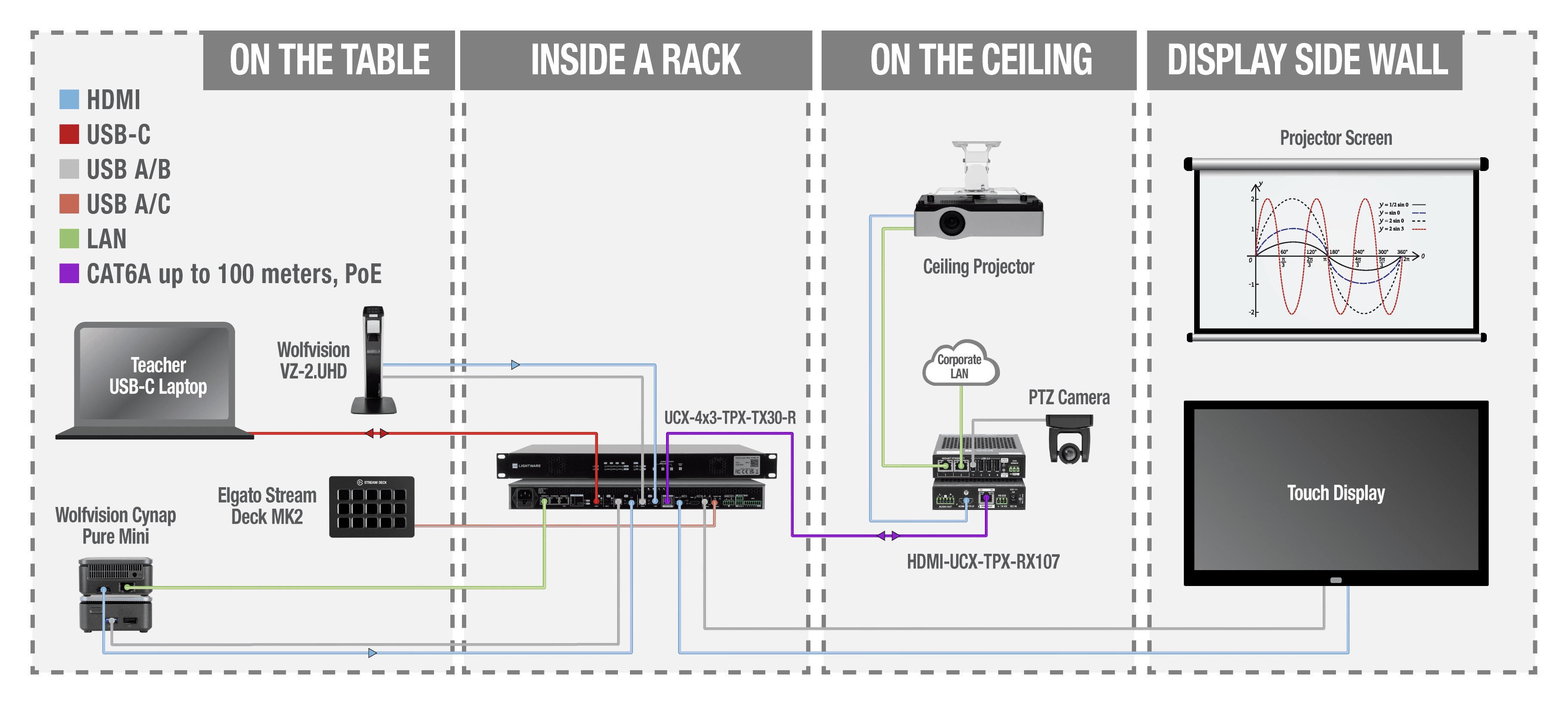

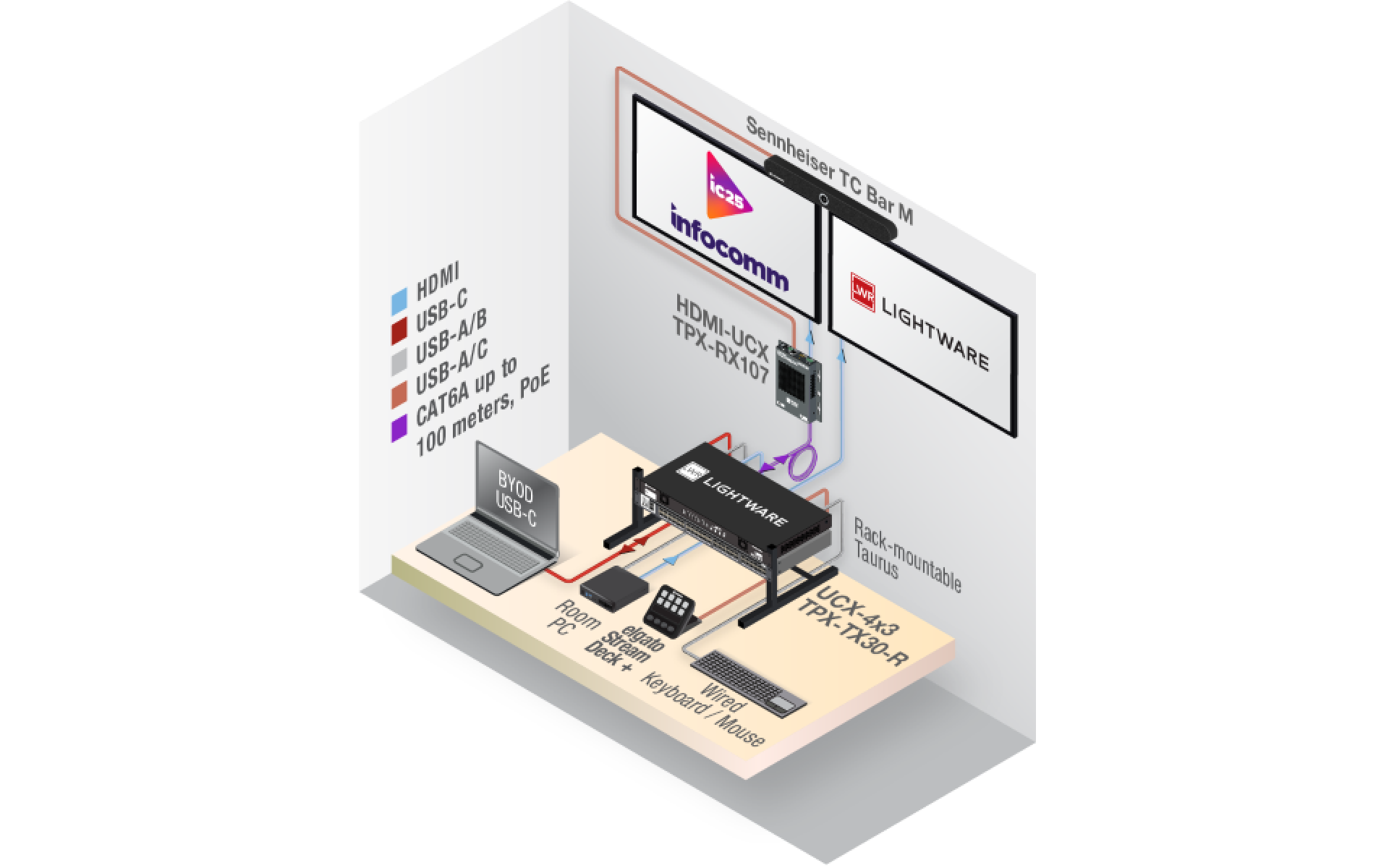

The solution overcomes the distance limitations of traditional USB and HDMI cabling, allowing video, audio, and control signals to be transmitted in one direction and USB 2.0 data in the other, over distances of up to 100 meters through a single direct link.
Specification Table
| General | Compliance | CE; UKCA | |
| Electrical safety | EN 62368-1:2024 | ||
| EMC (emission) | EN 55032:2015+A1:2020 | ||
| EMC (immunity) | EN 55035:2017+A11:2020 | ||
| FCC Compliance | FCC CFR Title 47, Part 15, Subpart B | ||
| RoHS | EN 63000:2018 | ||
| Warranty | 3 years | ||
| Operating temperature | 0° to +50°C (+32° to +122°F) | ||
| Operating humidity | 10% to 90%, non-condensing | ||
| Cooling | Cooling fan | ||
| Power | Power supply option | 1x Internal PSU, AC/DC 24V 20,9A 1x Internal PSU, AC/DC 54V 3,8A 200W |
|
| Supported power source | 100-230 V AC; 50-60 Hz | ||
| AC power plug | Interchangeable (EU, UK, JP/US, AUS/NZ) | ||
| Battery cell type | BR1632A | ||
| Enclosure | Enclosure material | 1 mm steel | |
| Dimensions in mm | 440.5 (W) x 278.8 (D) x 43.9 (H) | ||
| Dimensions in inch | 17.34 (W) x 10.96 (D) x 1.73 (H) | ||
| Weight | 3.73 kg | ||
| Video Inputs | USB-C input | Connector type | 24-pole USB type C receptacle |
| A/V standard | DP 1.2a | ||
| HDCP compliance | HDCP 1.4, HDCP 2.2 | ||
| Color space | RGB, YCbCr | ||
| Video delay | O frame | ||
| Max. video resolution | 4096x2160@60Hz RGB 4:4:4 (up to 600MHz pixel clock);1920x1080@120 Hz, 36 bit | ||
| Audio formats | all formats in line with HDMI 2.0 standard | ||
| 3D support | yes | ||
| HDMI input | Connector type | 19-pole HDMI Type A receptacle (with screw locking option) | |
| A/V standard | DVI 1.0, HDMI 1.4, HDMI 2.0 | ||
| Maximum data rate | 18Gbps | ||
| Maximum pixel clock | 597MHz | ||
| HDCP compliance | HDCP 1.4, HDCP 2.2 | ||
| Color space | RGB, YCbCr | ||
| Video delay | O frame | ||
| Max. video resolution | 4096x2160@60Hz RGB 4:4:4 (up to 600MHz pixel clock);1920x1080@120 Hz, 36 bit | ||
|
5K Resolution |
5120×2160 HDMI 2.0: 30hz 4:4:4 or 60hz 4:2:0 |
||
| Max. input HDMI cable length (with premium certified cable) at 3840x2160@60Hz 4:4:4 | 5m | ||
| Re-clocking | Pixel Accurate Re-clocking | ||
| 3D support | yes | ||
| Audio mode | Simultaneous pass-through and de-embedding to the Audio layer | ||
| Supported audio formats for pass-through | All HDMI2.0 audio formats | ||
| Supported audio formats for de-embedding | Uncompressed | ||
| Compressed | Dolby Digital, DTS; Compressed HBR; Dolby TrueHD, DTS-HD | ||
| Video Outputs | HDMI output | Connector type | 19-pole HDMI Type A receptacle |
| A/V standard | DVI 1.0, HDMI 1.4, HDMI 2.0 | ||
| 5K Resolution | 5120×2160 HDMI 2.0: 30hz 4:4:4 or 60hz 4:2:0 | ||
| HDCP compliance | HDCP 1.4, HDCP 2.2 | ||
| Color space | RGB, YCbCr | ||
| Supported resolutions | Up to UHD/4k@60Hz 4:4:4 | ||
| Audio formats | 8 channel PCM, Dolby TrueHD; DTS-HD Master Audio 7.1 | ||
| TPX output | Connector type | RJ45 connector | |
| Power over Ethernet | POE+ PD (IEEE802.3at) | ||
| Data rate | 10GBase-T | ||
| Compliance | AVXT | ||
| HDCP compliance | HDCP 2.3 | ||
| Transferred signals | Video, Audio, USB 2.0, RS-232, OCS, Ethernet | ||
| Color space | RGB, YCbCr | ||
| Supported resolutions at 8 bits/color | up to 4096x2160@60Hz (4:4:4) | ||
| Audio formats | 8-channel PCM, Dolby TrueHD, DTS-HD Master Audio 7.1 | ||
| Audio Ports | Analog audio output | Connector type | 5-pole Phoenix connector |
| Audio formats | 2-ch PCM | ||
| Sampling frequency | 48 kHz | ||
| Volume | -95.62 dB-0 dB | ||
| Balance | -100 +100 (0 = center) | ||
| USB Ports | Host port (UFP) | Connector type | C-type receptacle |
| USB compliance | USB 2.0 | ||
| Connector type | B-type receptacle | ||
| USB compliance | USB 2.0 | ||
| Device port (DFP) | Connector type | 2x USB-A and 2x USB-C type receptacle | |
| USB compliance | USB 2.0 | ||
| Control ports | Ethernet port | Connector type | RJ45 female connector |
| Ethernet data rate | 1 Gbit/sec | ||
| Power over Ethernet (PoE+) | supported on 1x RJ45 connector | ||
| PoE+ | 2x 30W (TPX out and Ethernet 3) | ||
| USB port | Connector type | A-type receptacle | |
| USB compliance | USB 2.0 | ||
| Connector type | mini B-type | ||
| USB compliance | USB 2.0 | ||
| RS-232 port | Connector type | 3-pole Phoenix connector | |
| Baud rates | between 9600 and 115200 baud | ||
| Data bits | 8 | ||
| Parity | None, Odd/Even | ||
| Stop bits | 1/2 | ||
| Output voltage: Low level | 3-15V | ||
| Output voltage: High level | -15V to -3V | ||
| GPIO Port | Connector type | 8-pole Phoenix | |
| Function (pin 1-6) | Configurable (input/output) | ||
| Function (pin 7) | 5V output | ||
| Function (pin 8) | Ground | ||
| Maximum Total Current | 180mA | ||
Features

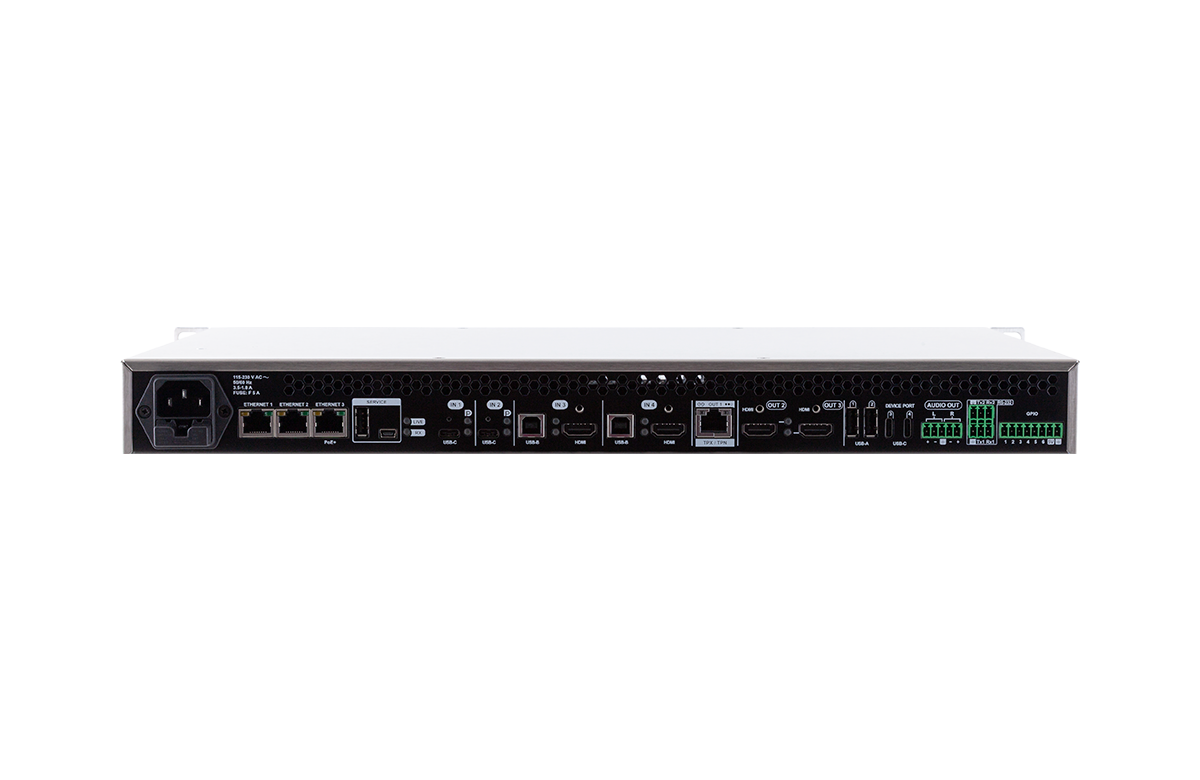

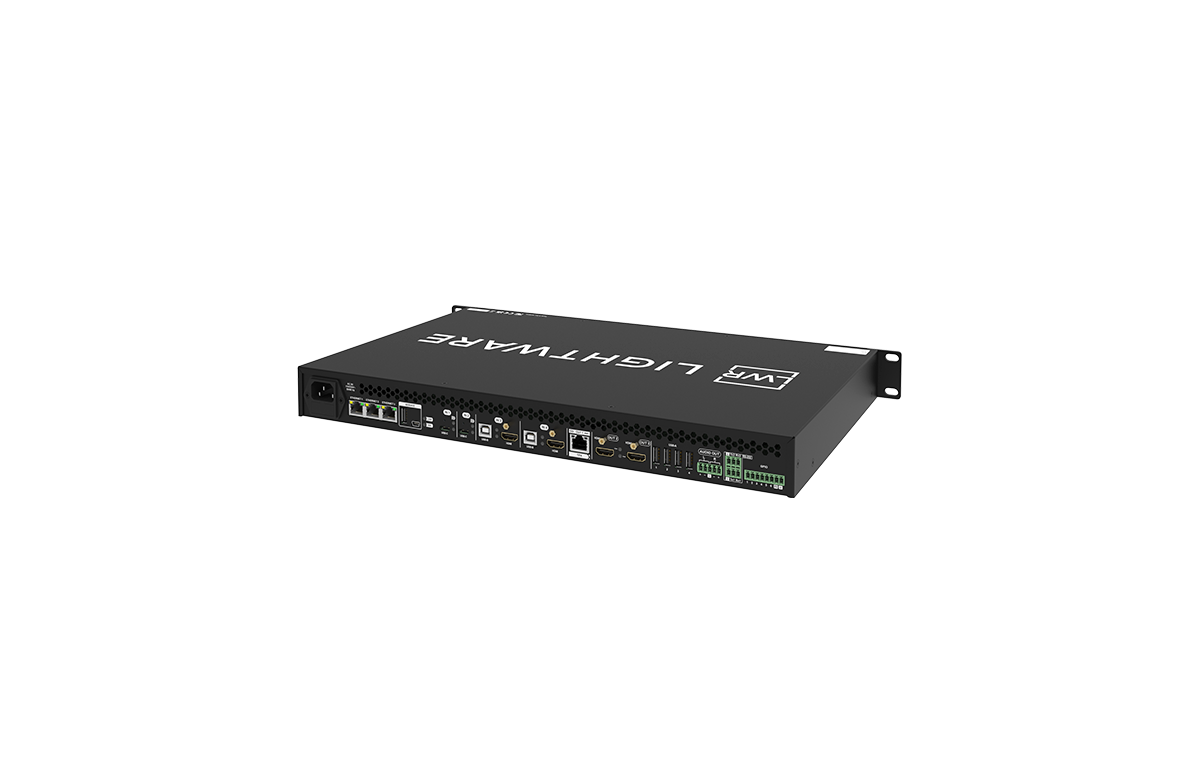

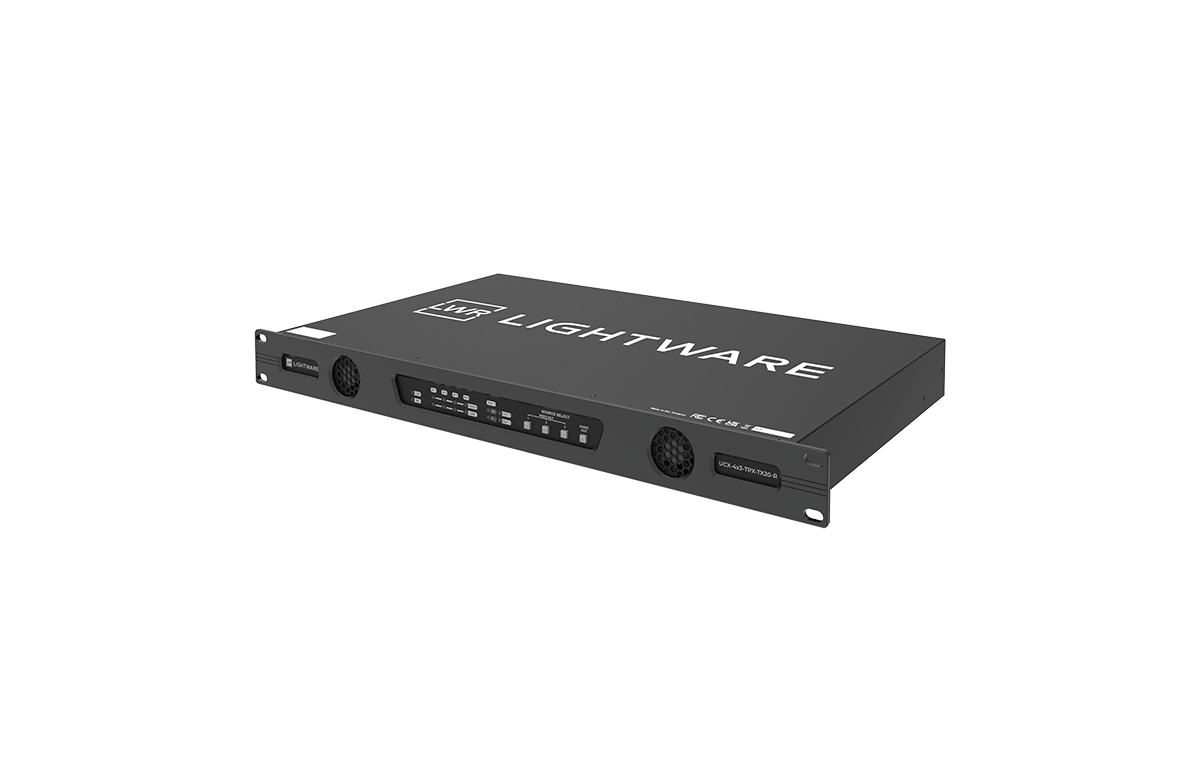

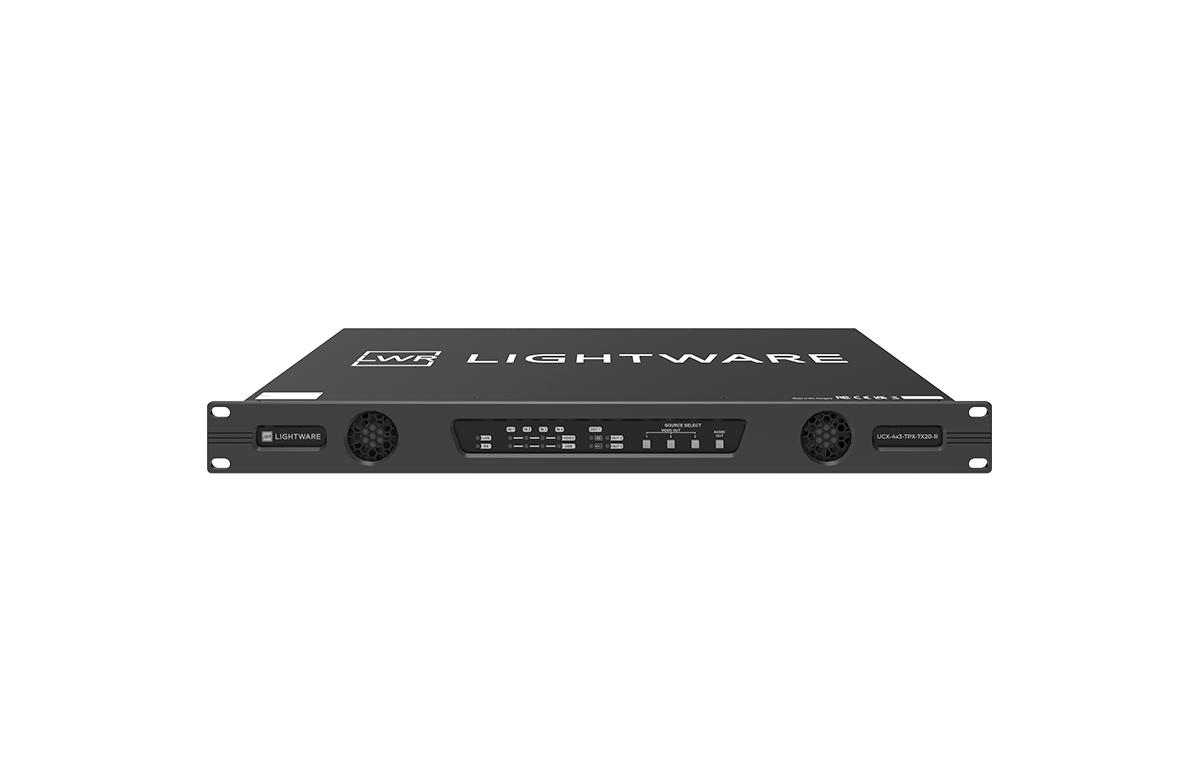

Rack-Mount Universal Transmitter
Rack-mountable transmitter for networked AV systems.
One-Side Cabling

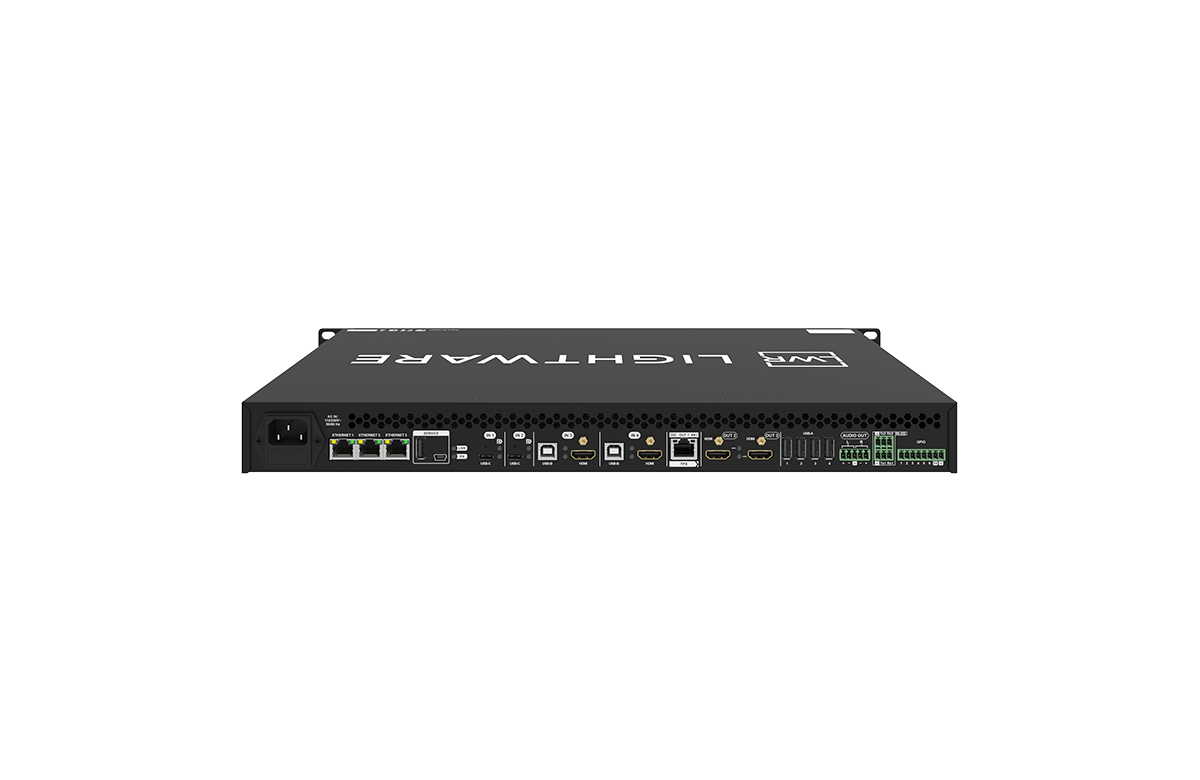

All connectors on one side for clean and simple rack wiring.
Built-In Power Supply
Integrated high-performance power supply for rack installations.
Powerful USB-C Charging & PoE+
100W charging on USB-C inputs and 2x 30W PoE+
Independent USB Host Switching
Flexible switching for multiple connected sources.
5K HDMI Support
5120×2160 at 30 Hz 4:4:4 or 60 Hz 4:2:0 via HDMI 2.0.
Receiver-Agnostic Compatibility
Compatible with any TPX receiver of your choice.
USB 2.0 Device Connectivity
Connect cameras, touch displays, or other USB devices.
Other Features
Room device control via Ethernet (TCP/IP) or Serial (2x at TX device, 1x at RX device)
Independent USB Host switching layer for multiple USB hosts, up to 8 devices (4x at the TX side, 4x at the RX side)
Variant available with NIST FIPS 140-2 certified Lightware Crypto Core (UCX-4x3-TPX-TX20-LCC, SKU: 91360034)
Built-in SDVoE Control Server enables centralized device management, routing, and system control across the network.
