UCX-1x1-C60
SKU: 91310115
ShippingUSB Type-C Docking Station
Details
Bring Collaboration Spaces to the Next Level

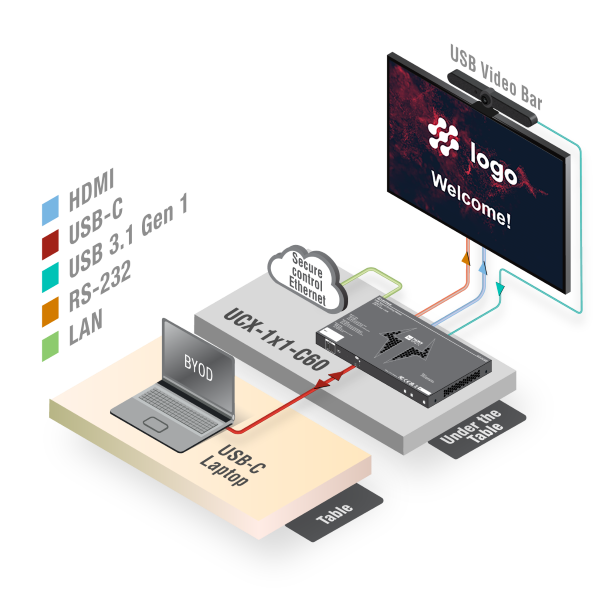

The UCX-1x1-C60 USB Type-C docking station enhances and extends the possibilities of a meeting room and allows meeting participants to easily use their own devices such as laptops, and preferred video conference platforms while also utilizing the available assets of the meeting space, just like the HDMI displays, room cameras and other USB peripherals.
Optionally, a configurable welcome screen can create a professional corporate impression and/or help the user set up the room.
Supporting 5K
Taurus devices deliver flawless switching for 5K 21:9 ultrawide displays, unlocking a new level of visual performance for modern meeting and control environments. Designed to enhance layouts like Microsoft Teams Front Row and other collaboration platforms, Taurus provides expanded screen real estate for design, data visualization, and multi-window workflows. With uncompressed HDMI 2.0 video and ultra-low latency, it’s the ideal choice for simulation, engineering, broadcast, and executive boardroom applications.
DSC Support — High-Performance Video & USB3, Finally Together
In its class of professional BYOD USB-C matrix switchers, the HC60 series uniquely combines DSC over DP Alt Mode, full-bandwidth USB 3, host switching, and integrated Ethernet. DSC (Display Stream Compression) enables 4K60 4:4:4 video on just two DP lanes, leaving the remaining lanes available for super-speed USB 3, so a single USB-C cable can deliver premium video and professional-grade USB peripherals simultaneously.
This is a major advantage, ensuring smooth operation of USB3 cameras, audio devices, and touch displays while maintaining perfect 4K60 image quality. It also provides a more reliable BYOD experience in modern hybrid meeting rooms, even when laptops have limited DP bandwidth, and improves stability with long or lower-quality USB-C cables by reducing video bandwidth load.
macOS supports DSC at the hardware level, though the OS may still restrict certain high-resolution or HDR modes, and DSC behavior can vary across versions. To work properly, the laptop must support DSC and the connection must use DP Alt Mode.
Exploit the Possibilities of USB connectivity
The device utilizes USB-C connectivity for simplified transmission of video, audio, control signals, and power, supporting data speeds of up to 5 Gbps under USB 3.1 Gen1. It enables video resolutions up to 5K (5120×2160) via HDMI 2.0 at 30Hz 4:4:4 or 60Hz 4:2:0, as well as 4K@60Hz at 4:4:4. Users who connect their laptop or other mobile device via USB-C can also enjoy charging up to 100W, thus eliminating the need to look for a wall plug and to avoid sudden interruption of meetings.
The device is designed to be a centerpiece of any collaboration space, and can be connected to three USB peripherals via 1x USB-A type and 2 USB-C connectors.
Additional Features and Capabilities
Security is always a key concern to our customers, therefore our engineers ensured that the UCX-1x1-C60 adheres to the strictest security standards.
The Taurus UCX offers noiseless operation, no fan in the device.
In today’s collaboration environments, it is key that the technology offers flexible and versatile ways for participants to unlock the full potential of a collaboration space and to not be limited by the default options offered by their meeting rooms.
The Taurus UCX product family is Lightware’s ground-breaking innovation offered for the increasingly growing demand for cutting-edge solutions in the world of Unified Communications.
Remote System Logging (Syslog)
Taurus devices now support remote system logging via industry-standard Syslog protocols (RFC3164 and RFC5424). This allows seamless integration with external SIEM and log monitoring systems.
- Forward logs via TCP, UDP, TLS
- Choose between human-readable and structured formats
- Easy configuration via LW3 protocol
- Local journald logging remains unaffected
The Smart Solution for Streamlined Collaboration
Meet the Taurus Smart Dock
Simplify your workspace with the Taurus Smart Dock, a powerful USB-C docking station that connects your laptop to room systems with just one cable.
Specification Table
| Video | ||
| Resolution | Up to UHD/4k@60Hz 4:4:4 | |
|
5K Resolution |
5120×2160 HDMI 2.0: 30hz 4:4:4 or 60hz 4:2:0 |
|
| Signal Type | DP Alt Mode, HDMI 2.0, HDMI 1.x, DVI | |
| Maximum data rate | 18 Gbps | |
| Maximum pixel clock | 597 MHz | |
| Content protections | HDCP 1.x, HDCP 2.2 | |
| Connector type (IN) | 1x USB-C receptacle with screw locking option | |
| Connector type (OUT) | 1x HDMI receptacle type A with screw locking option | |
| Video processing | Signal parameter measurement | |
| Audio | ||
| Audio mode | Pass-through to the Audio layer | |
| Supported audio formats for pass-through | All HDMI2.0 audio formats | |
| Control | ||
| Ethernet | Connector type | RJ45 female connector |
| Ethernet data rate | 1 Gigabit Ethernet | |
| Control | 1x 1000Base-T via RJ-45 for Secure Control | |
| USB | Connector | 1x USB Type A for peripherials |
| 2x USB Type C for peripherials | ||
| RS232 | Connector | 1x 3Pol Phoenix |
| Symbol rate | between 9600 and 115200 baud | |
| Configuration | Parity: none, odd or ever Stopbits: 1 or 2 |
|
| General | ||
| Powering | External 160W power supply | |
| Dimensions | Width | 246 mm |
| Height | 26 mm | |
| Depth | 150 mm | |
| Operating conditions | Ambient temperature | 0-50oC |
| Relative humidity | 0-90% (non-condensing) | |
| Transportation conditions | Ambient temperature | -20-70oC |
| Relative humidity | 0-95% (non-condensing) | |
| Complience | EN 55032:2015 | |
| IEC 61000-3-3:2013+AMD1:2017 | ||
| FCC CFR Title 47, Part 15, Subpart B | ||
| Warranty | 3 years | |
Comparison Table
| Variant | DCX-3x1-HC21 | UCX-1x1-C60 | UCX-2x1-HC60 | UCX-2x2-H60 | UCX-4x2-HC60 | UCX-4x3-HC60 | UCX-4x2-HC60D | UCX-4x3-HC60-BD |
| HDMI input | 2 | 1 | 2 | 2 | 2 | 2 | 2 | |
| USB-C connectivity (4K Video, Audio, Data, Power charge) | 1 | 1 | 1 | 2 | 2 | 2 | 2 | |
| HDMI output | 1 | 1 | 1 | 2 | 2 | 3 | 2 | 3 |
| USB-A 3.1 Gen1 Connection (for USB Devices) | 1 | 2 | 2 | 2 | 2 | 2 | 2 | |
| USB-C 3.1 Gen1 Connection (for USB Devices) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| USB-B 3.1 Gen1 Connection (for PC hosts) | 1 | 1 | 1 | 1 | 1 | 1 | ||
| USB-C Gen1 Connection (for PC hosts) USB Data only | 1 | 1 | 1 | 1 | 1 | |||
| USB host switching | ||||||||
| DANTE/AES67 audio support | ||||||||
| Analog audio de-embedding (5-pole Phoenix) | ||||||||
| Secure control Ethernet | ||||||||
| Configurable Ethernet | 2 | 2 | 2 | 2 | 2 | 2 | ||
| GPIO connection | 6 | 6 | 6 | 6 | 6 | 6 | ||
| Occupancy sensor connection | ||||||||
| RS-232 connection | 1 | 1 | 2 | 2 | 2 | 2 | 2 | |
| Welcome Screen | ||||||||
| Remote Syslog support |
Features
Windows & macOS support
Seamless performance on both platforms
USB-C lane management
Set video or data priority on USB-C
Remote device management
LDC & LDU: remote config and FW updates
USB-C & USB-A charging
100W for BYOD, 1A for peripherals
Smart room automation
LARA triggers CEC, RS-232, relay, and shutdown
USB-C 5-in-1 connection
Video, audio, data, power and Ethernet via one cable
Secure USB-C Connectivity with 802.1x support
Supports HDMI 5K signal formats
5120×2160 HDMI 2.0: 30hz 4:4:4 or 60hz 4:2:0
Other Features
Flexible cabling options for any setup up to 10 m
HDMI output supports 4K UHD @60Hz (RGB 4:4:4) up to 18 Gbps
Passive noiseless cooling
Ensure cable connection with USB-C lock or screw lock
10-meter USB-C Active Optical Cable available (60W/3A charging)
Configurable welcome screen
Remote system logging
Smart HDMI 5V Signal Tracking
The “Follow Signal Present” mode powers the 5V output
Secure and Flexible Room LAN
Isolated VLAN network for secure room control
