UCX-2x2-H60

SKU: 91310117

Shipping

Universal Matrix Switcher with HDMI 2.0 connectivity and USB 3.1 Gen1 features

Interested in this product?

Lightware’s universal matrix switcher allowing users to switch between hosts and BYOD devices using a combination of HDMI 2.0 and USB 3.1 Gen1 connections, with video and audio signals up to 4k@60Hz 4:4:4 and data speeds up to 5 Gbps.

User Manual

Firmware

Details

Bring Collaboration Spaces to the Next Level

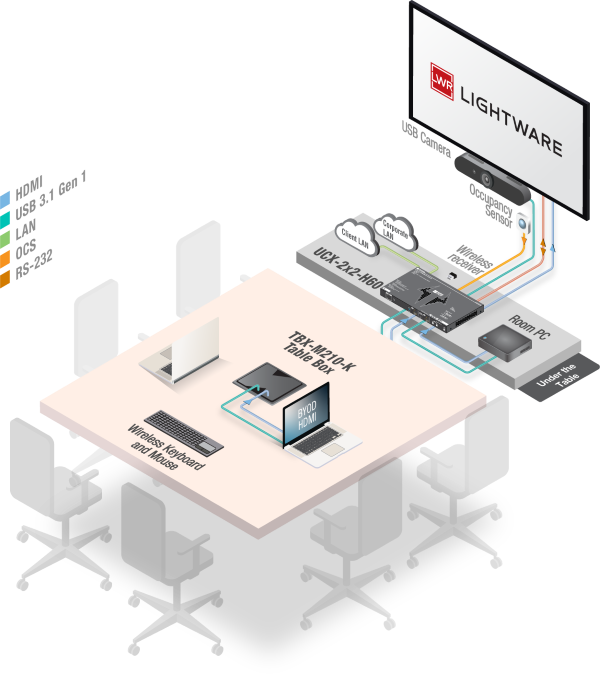

The UCX-2x2-H60 universal matrix switcher enhances and extends the possibilities of a meeting room and allows meeting participants to easily use their own devices such as laptops, and preferred video conference platforms while also to utilize the available assets of the meeting space, just like the HDMI displays, room cameras and other USB peripherals.

Supporting 5K

Taurus devices deliver flawless switching for 5K 21:9 ultrawide displays, unlocking a new level of visual performance for modern meeting and control environments. Designed to enhance layouts like Microsoft Teams Front Row and other collaboration platforms, Taurus provides expanded screen real estate for design, data visualization, and multi-window workflows. With uncompressed HDMI 2.0 video and ultra-low latency, it’s the ideal choice for simulation, engineering, broadcast, and executive boardroom applications.

Exploit the Possibilities of USB connectivity

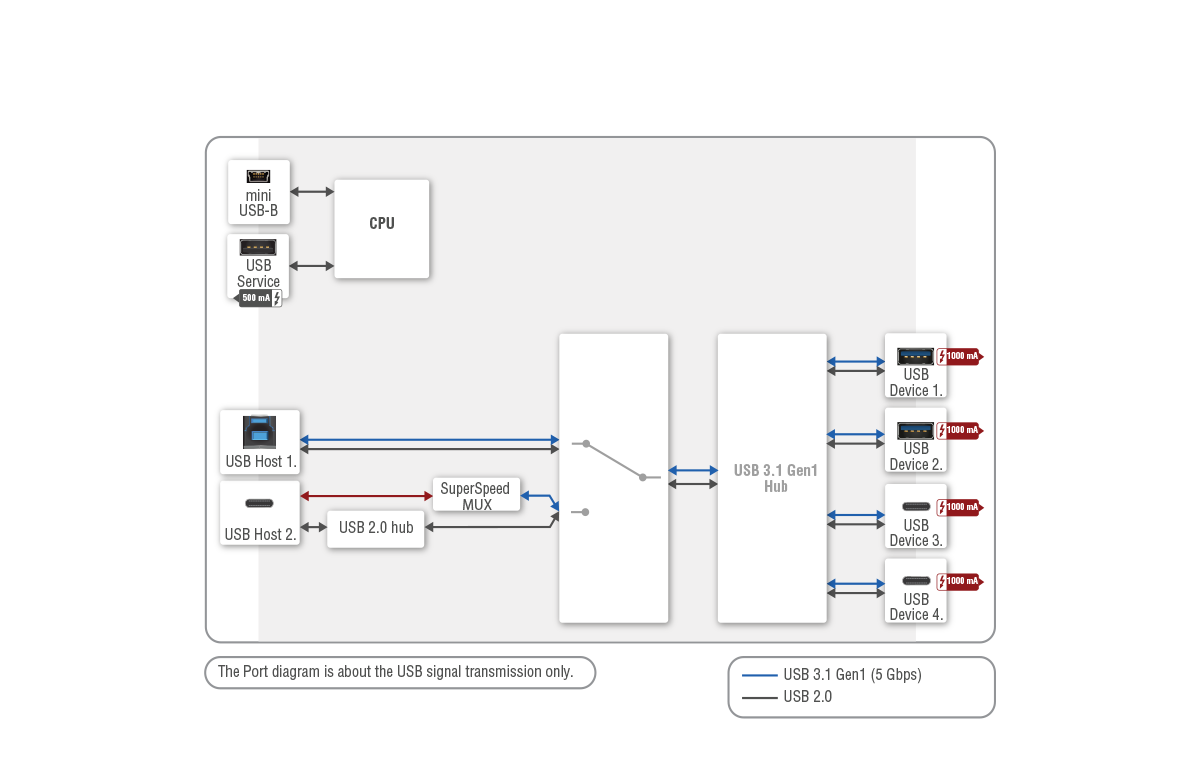

The device is designed to be a centerpiece of any collaboration space, and can be connected to four USB peripherals via 2x USB-A type and 2 USB-C connectors.

Hosts then can connect their own devices to the UCX-2x2-H60 and gain control over the rooms peripherals. By simply using a combination of HDMI 2.0 and USB 3.1 Gen1 connections, video and audio signals can be transferred up to a resolution of 5K (5120×2160) via HDMI 2.0 at 30Hz 4:4:4 or 60Hz 4:2:0, as well as 4K@60Hz at 4:4:4. and data speeds up to 5 Gbps.

The device allows up to two hosts to be connected to the system, and also ensures quick and easy switching between the users. Two sets of HDMI 2.0 and USB inputs makes this universal matrix switcher a perfect fit for smaller meeting areas, involving 4-8 people.

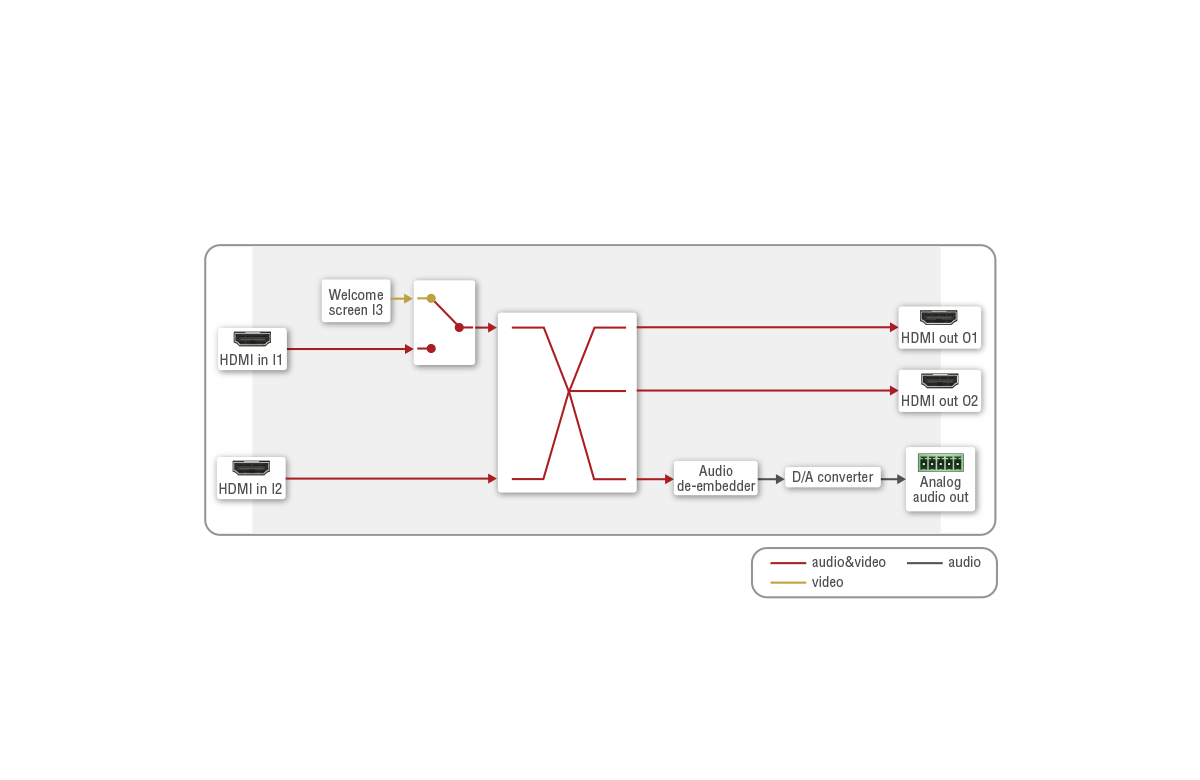

Automated room control features are also included through GPIO ports, besides of RS-232 and occupancy sensor connectivity. The switcher also thrives when it comes to audio capabilities, offering analog audio de-embedding feature.

Additional Features and Capabilities

Security is always a key concern to our customers, therefore our engineers ensured that the UCX-2x2-H60 adheres to the strictest security standards. A secure corporate Ethernet interface ensures secure device control and configuration under the SSH, SSL and HTTPS standards.

The Taurus UCX offers noiseless operation, no fan in the device..

In today’s collaboration environments, it is key that the technology offers flexible and versatile ways for participants to unlock the full potential of a collaboration space and they clearly demand to not be limited by the default options offered by their meeting rooms.

The TAURUS UCX product family is Lightware’s ground-breaking innovation offered for this increasingly growing demand for cutting-edge solutions in the world of Unified Communications.

Also available with NIST FIPS 140-2 certified cryptography (SKU: 91360025)

Remote System Logging (Syslog)

Taurus devices now support remote system logging via industry-standard Syslog protocols (RFC3164 and RFC5424). This allows seamless integration with external SIEM and log monitoring systems.

Forward logs via TCP, UDP, TLS

Choose between human-readable and structured formats

Easy configuration via LW3 protocol

Local journald logging remains unaffected

Password Protection on Taurus UCX-HC60 Devices

Lightware’s new Taurus UCX-HC60 devices, as well as the DCX-3x1-HC21, are password-protected and come with a unique, factory-generated password.

This improvement ensures that the HC60 devices are ‘secure by design’ and better align with the requirements of various cybersecurity regulations, including the EU Cyber Resilience Act (CRA).

Read our guide for important information about how the new unique password protection works, where to find the devices’ login credentials and what to do if you encounter any password-related issues.

Password Guide

The Ultimate Collaboration for Modern Workspaces

Here's the New Taurus UCX

Experience simple USB-C connectivity with Taurus UCX, offering easy 4K video, switching, and USB peripheral support for meeting rooms and huddle spaces.

Discover Taurus UCX

Specification Table

Video
Resolution	Up to UHD/4k@60Hz 4:4:4
5K Resolution	5120×2160 HDMI 2.0: 30hz 4:4:4 or 60hz 4:2:0
Signal Type	HDMI 2.0, HDMI 1.x, DVI
Maximum data rate	18 Gbps
Maximum pixel clock	597 MHz
Content protections	HDCP 1.x, HDCP 2.2
Connector type (IN)	2x HDMI receptacle type A with screw locking option
Connector type (OUT)	2x HDMI receptacle type A with screw locking option
Video processing	Signal parameter measurement

Audio
Audio mode		Simultaneous pass-through and de-embedding to the Audio layer
Supported audio formats for pass-through		All HDMI2.0 audio formats
Supported audio formats for de-embedding	Uncompressed	LPCM (up to 2 channels, 192 kHz, 24 bits per sample)

Control
Ethernet	Control	1x 1000Base-T via RJ-45 for Secure Control
	Connector type	RJ45 female connector
	Ethernet data rate	1 Gigabit Ethernet
RS232	Connector	2x 3Pol Phoenix
	Symbol rate	between 9600 and 115200 baud
	Configuration	Parity: none, odd or ever Stopbits: 1 or 2
USB	Connectors
		1x mini USB Type B (reserved for service)
		1x USB Type A (reserved for future developments)
		1x USB-B + 1x USB-C data for host devices
		2x USB Type A for peripherals
2x USB Type C for peripherals
Room Occupancy Sensor	Connector	3Pol Phoenix
GPIO	Connector	8Pol Phoenix

General
Powering		External 120W power supply
Power consumption (max)		13.3 W
Heat dissipation		46 BTU/h (max)
Dimensions	Width	246 mm
	Height	26 mm
	Depth	140.3 mm
Weight		898 g
Operating conditions	Ambient temperature	0-50^oC
Operating conditions	Relative humidity	0-90% (non-condensing)
Transportation conditions	Ambient temperature	-20-70^oC
Transportation conditions	Relative humidity	0-95% (non-condensing)
Complience		EN 55032:2015 IEC 61000-3-3:2013+AMD1:2017 FCC CFR Title 47, Part 15, Subpart B
Warranty		3 years

Comparison Table

Variant	DCX-3x1-HC21	UCX-1x1-C60	UCX-2x1-HC60	UCX-2x2-H60	UCX-4x2-HC60	UCX-4x3-HC60	UCX-4x2-HC60D	UCX-4x3-HC60-BD
HDMI input	2		1	2	2	2	2	2
USB-C connectivity (4K Video, Audio, Data, Power charge)	1	1	1		2	2	2	2
HDMI output	1	1	1	2	2	3	2	3
USB-A 3.1 Gen1 Connection (for USB Devices)		1	2	2	2	2	2	2
USB-C 3.1 Gen1 Connection (for USB Devices)		2	2	2	2	2	2	2
USB-B 3.1 Gen1 Connection (for PC hosts)			1	1	1	1	1	1
USB-C Gen1 Connection (for PC hosts) USB Data only				1	1	1	1	1
USB host switching
DANTE/AES67 audio support
Analog audio de-embedding (5-pole Phoenix)
Secure control Ethernet
Configurable Ethernet	2		2		2	2	2	2
GPIO connection			6	6	6	6	6	6
Occupancy sensor connection
RS-232 connection	1		1	2	2	2	2	2
Welcome Screen
Remote Syslog support
