CAB-USBC-AOC1000K
SKU: 91570006
DiscontinuedUSB-C Active Optical cable for USB3.2
Details
Recommended Replacement
1 product
This Type-C to Type-C USB cable offers data speeds up to 5Gbps and allows users to connect their laptop or other devices to Lightware’s USB-C compatible extenders and switchers. The cable’s length of 8m is ideal for most meeting room and presenter’s desk applications.
The cable proved itself to work with great efficiency with our new USB-C capable Taurus UCX as well as with various source devices. Its reliability, build-quality and technical parameters make this accessory our number one choice for projects involving USB-C connectivity.

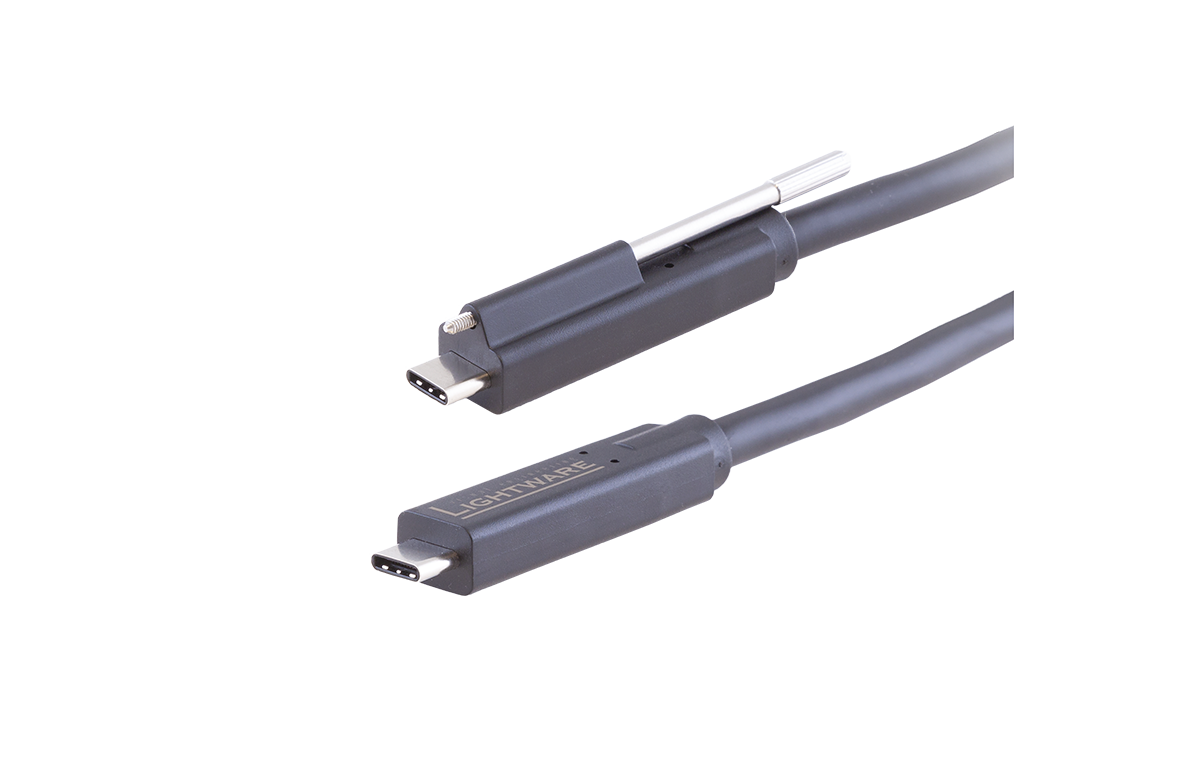

The cables are equipped with a Screw Lock USB-C plug that ensures a secure connection to the Taurus UCX. The plug is designed to prevent accidental disconnections during operation, providing users with a reliable and stable connection.
Specification Table
| Interface | |
| Connectors | 1xUSB Type-C™ plug & 1xUSB Type-C™ plug with flange |
| Technical characteristics | |
| Data Speed | 5Gbps (5Gbps/lane) |
| Maximum Current | 3 A |
| Electronically marked | Yes |
| Compatible with Displayport Alternate Mode | Yes |
| Displayport Alternate Mode | 2lane HBR3 (8.1Gbps/lane) |
| Number of TIER to USB3.1 layer | 0 |
| Number of TIER to USB2.0 layer | 2 |
| Rating temperature | 60°C |
| VW-1 flame test | Yes |
| Physical characteristics | |
| Cable diameter | 6,5 mm |
| Pin coating | Gold-plated |
| Length | 10 m |
| Bending radius | 50 mm |
| Tensile Strenght | 200 N |
| Color | black |
Features
USB 3.2 Gen1x1 5Gbps “SuperSpeed”
4K Webcam, SSD storage
Active Optical USB-C extension cable
9.8m extension distance
Only one added tier
to USB2.0 topology
Supporting peripherals via USB 2.0 and USB 1.1
up to 480 Mbps (Mouse, Keyboard, Thumb Drive, Speakerphone and Webcam)
Screw Lock USB-C plug
secures connection to Taurus UCX products
2 lane Displayport 1.4 Alt mode
supports up to 4K30Hz@HBR2 and 4K60Hz@HBR3 video resolutions
60Watt / 3A charging and eMarker
Fast Charging of Laptops, tablets and phones
