DP-TPS-TX220
SKU: 91540018
DiscontinuedTPS (HDBaseT™) DisplayPort Extender with Local Monitor Out
Interested in this product?
DP-TPS-TX210 can transmit universal video, audio and control up to a 170 meter distance over a single CAT cable. The extender was designed to handle DP1.1 digital video signals and analog stereo audio from local inputs or DP Embedded Audio up to eight channel PCM or HBR audio.
Details
Specification Table
| Specifications | |
| Resolution: | Up to 4K UHD 3840×2160@30Hz, 1600x1200@60Hz, FullHD 1920x1080@60Hz |
| Digital audio formats: | Supports up to 8 channel PCM, Dolby TrueHD and DTS-HD Master Audio 7.1 formats |
| Input cable equalization: | Adaptive, automatic |
| EDID emulation: | Yes, Advanced EDID Management |
| EDID memory: | 120 factory preset, 15 user programmable |
| HDCP pass-through: | Yes |
| RS-232 pass-through: | Yes, configurable |
| RS-232 (control option): | 9600, 19200, 38400, 57600, 115200 Baud Rx,Tx (through CATx)(default: 57600) |
| Local power: | Universal power adaptor, DC 12V 2.5A |
| Power over TPS: | DC 48V 1 A |
| Power consumption: | 8W (typ) |
| Enclosure: | 1 mm metal |
| Dimensions: | 221 W x 100.4 D x 26 H mm |
| Compliance: | CE |
| Warranty: | 3 years |

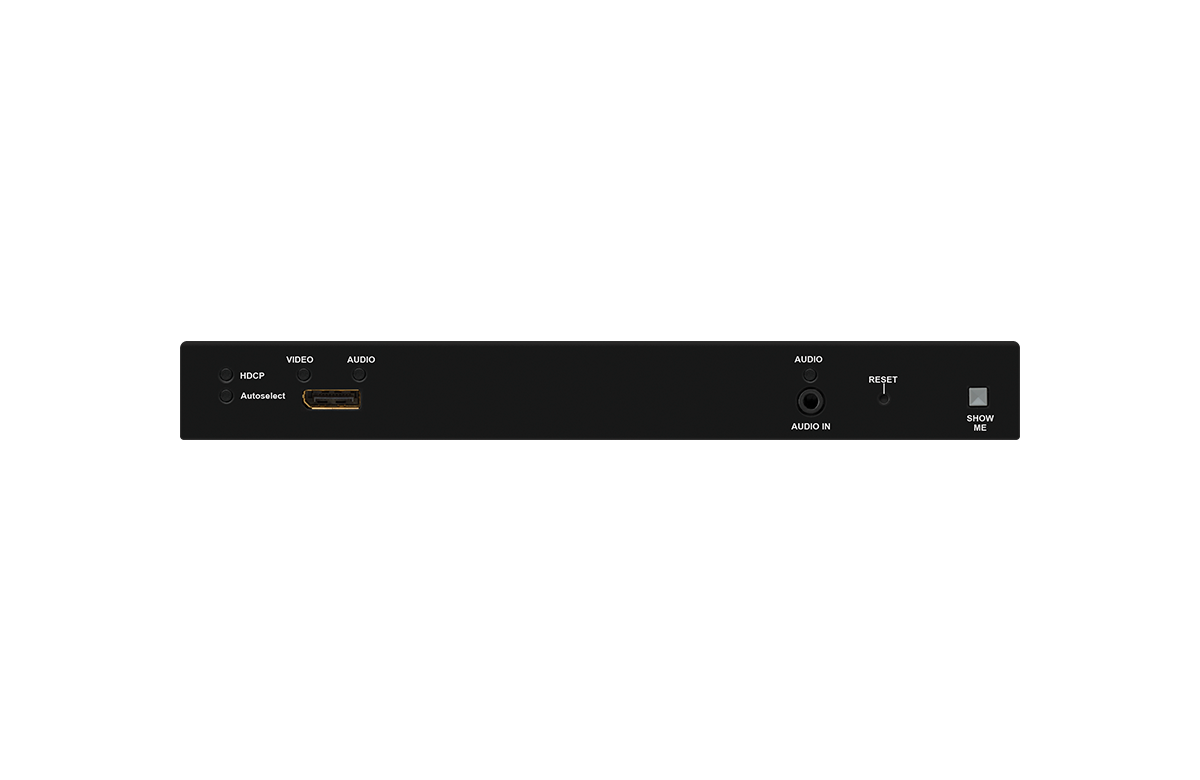

| Connectors | |
| Digital video input: | DisplayPort connector |
| Digital video output: | HDMI connector |
| Audio input: | 3.5 mm stereo jack |
| Ethernet: | 1 x RJ45 |
| GPIO: | 8-pole PHOENIX |
| IR: | 3.5 mm jack |
| TPS output: | 1 x RJ45 |
| Serial port: | 3-pole PHOENIX |
| Power: | Locking DC connector (2.1 / 5.5 mm) |
| Max cable lengths with the available firmware versions | ||||
| Resolution | Pixel clock rate | Cable lengths (Auto / LR link mode) | ||
| CAT5e AWG24 | CAT7 AWG26** | CAT7 AWG23 | ||
| 1024x768@60Hz | 65 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1280x720p@60Hz | 73,8 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1920x1080p@60Hz / 24bpp | 148,5 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1920x1200@60Hz | 152,9 MHz | 100 m / NA | 90 m / NA | 120 m / NA |
| 1600x1200@60Hz | 162 MHz | 100 m / NA | 90 m / NA | 120 m / NA |
| 1920x1080@60Hz / 36bpp | 223 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| 3840x2160@30Hz UHD | 297 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| 4096x2160@30Hz 4K | 297 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| *with long reach firmware option. Long reach firmware supports pixel clock frequencies up to 148,5 MHz. **Distances are 20% shorter if remote powering used. AWG 26 cables are not recommended with remote powering. |
||||
Features
Built-in Event Manager control automation
1920x1080@120Hz/4:4:4
4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
Ethernet extension (100 Mbps)
Command injection on RS-232 and IR ports
Bi-directional RS-232 and IR extension
pass-through and control
Extends DP 1.1 + Audio + Ethernet
