DVI-HDCP-TPS-RX97
SKU: 91540025
DiscontinuedInterested in this product?

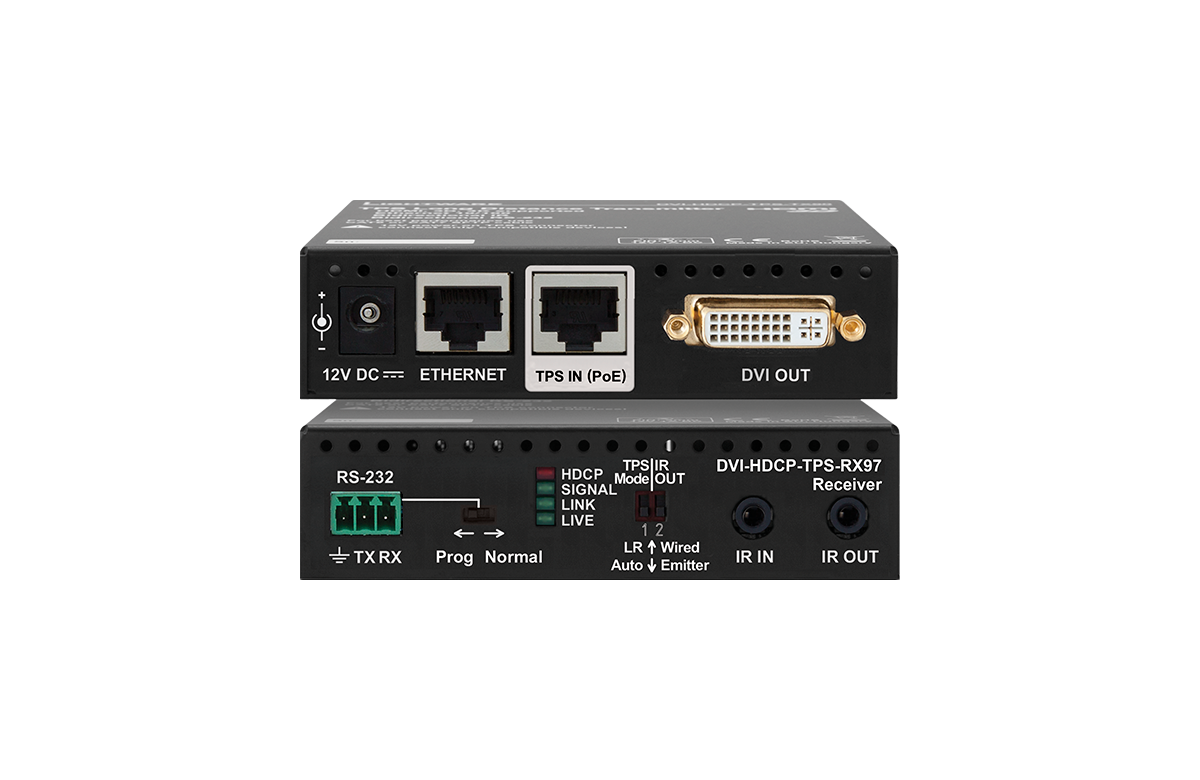

DVI-HDCP-TPS-TX97 and DVI-HDCP-TPS-RX97 twisted pair HDBaseTTM extenders transfer uncompressed 4K/UHD video with embedded audio (up to eight channel PCM or HBR audio) over a single CATx cable.
Details
Recommended Alternative
1 product
Specification Table
| Specifications | |
| Data rate: | 3.4 Gbps per color |
| Resolution: | All HDMI 1.4a resolutions supported |
| Equalization: | adaptive, automatic |
| EDID support: | transparent |
| HDCP pass-through: | yes |
| Ethernet pass-through: | yes |
| RS-232 pass-through: | yes |
| IR pass-through: | yes |
| Overall signal delay: | 10µs (including 100m CATx cable) |
| Power: | universal power adaptor, DC 12 V 2.5 A |
| Power consumption (-TX): | 3.6 W (typ) 4.2 W (max) |
| Power consumption (-RX): | 5.3 W (typ) 6.1 W (max) |
| Enclosure: | 1 mm metal |
| Dimensions: | 100.4 W x 100.4 D x 26 H mm |
| Net weight: | 330 g / product |
| Compliance: | CE |
| Warranty: | 3 years |
| Connectors | |
| TX input, RX output: | HDMI connector |
| TX output, RX input: | RJ45 (TPS interface) |
| Ethernet: | RJ45 |
| IR in, out: | 3.5 mm TRS connector (1/8'' mini-jack) |
| Serial port: | 9-pole D-sub |
| Power: | locking DC connector (2.1 / 5.5 mm) |
| Max Cable Lengths with the Available Firmware Versions | ||||
| Resolution | Pixel clock rate | Cable lengths (Auto / LR link mode) | ||
| CAT5e AWG24 | CAT7 AWG26** | CAT7 AWG23 | ||
| 1024x768@60Hz | 65 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1280x720p@60Hz | 73,8 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1920x1080p@60Hz / 24bpp | 148,5 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1920x1200@60Hz | 152,9 MHz | 100 m / NA | 90 m / NA | 120 m / NA |
| 1600x1200@60Hz | 162 MHz | 100 m / NA | 90 m / NA | 120 m / NA |
| 1920x1080@60Hz / 36bpp | 223 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| 3840x2160@30Hz UHD | 297 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| 4096x2160@30Hz 4K | 297 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
* with Long reach operation mode which supports pixel clock frequencies up to 148,5 MHz
** when remote powering is used with AWG26 cables, distances are 20% shorter.
Features
Ethernet extension (100 Mbps)
Selectable IR output mode
for emitter or wired connectivity
Bi-directional RS-232
and IR extension (pass-through)
Extends DVI or HDMI 1.4
#ERROR!
