MX-AUDIO-OB-A
SKU: 91130045
DiscontinuedAnalog Audio Output Board

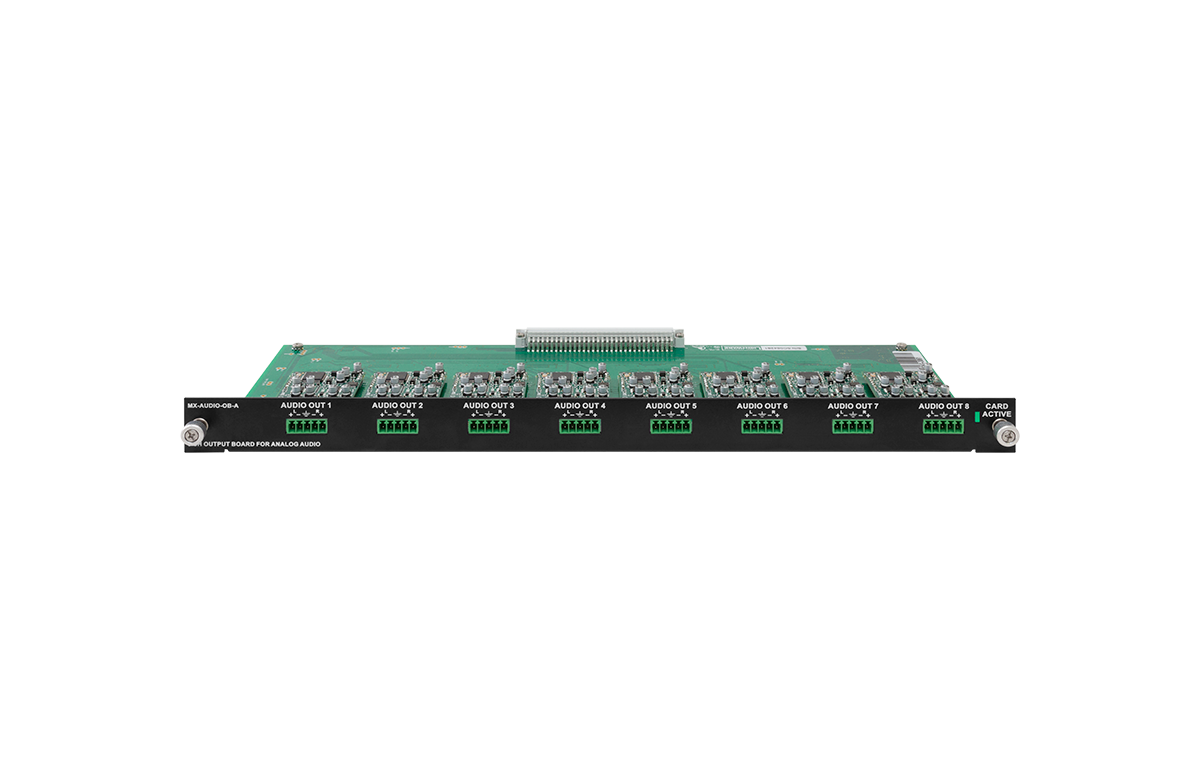

MX‑AUDIO‑OB‑A is an eight‑channel analog audio output board to switch audio de‑embedded from a video signal to an output port. The board has adjustable audio setting options.
Details
Specification Table
| Specifications | |
| Power consumption (3.3 V): | 1.03 A (typ.), 1.72 A (max.) |
| Power consumption (5 V): | 0.56 A (typ.), 0.93 A (max.) |
| Calculated AC Power (W): | 8.9 W (typ.), 14.8 W (max.) |
| Heat dissipation (BTU/h): | 33 BTU/h (typ.), 54 BTU/h (max.) |
| Weight: | 855 g |
| Output connectors: | 8 x Phoenix type |
| Analog audio outputs | |
| Volume: | -78 .. 0 dB |
| Bass: | 0 .. 24 dB |
| Treble: | 0 .. 6 dB |
| Balance: | 0 .. 100% |
| Phase invert: | On/Off |
| De-emphasis: | On/Off |
Discover the MX Series
Versatile, High-Performance Video Switching Solutions
The MX Series features advanced matrix switchers for simple 4K UHD video and audio management, perfect for conference rooms, event venues, and operation centers.
Discover MX
Features
Audio de-embedding
Balanced analog audio output
for audio de-embedding
Adjustable analog audio settings
(volume, gain, balance)
5-pole Phoenix analog connectors
No video compression
No signal latency, zero frame delay
