MX16x16DVI-Plus

SKU: 91310007

Discontinued

DVI Matrix Switcher

Interested in this product?

The MX16x16DVI‑Plus cost‑effective matrix switcher range from 16 input 16 output. The Plus series switchers are based on the Slim matrices with the added benefits of the integrated power supply insuring reliable performance in the most harshest environments. The 7 inch depth, 4 RU high body and low noise fan design makes it ideal for many space and noise sensitive applications.

Details

Recommended Alternative

MX2-16x16-HDMI20

The MX2-16x16-HDMI20 is a member of the Lightware HDMI 2.0 standalone matrix switcher family supporting uncompromised 4K UHD resolution at 60Hz 4:4:4.

Go to Product

1 product

Specification Table

Specifications
Routing:	16x16 non-blocking any input to any output(s)
Data rate:	2.25 Gbit/s per color
Resolution:	640x480 to 1920x1200 or 2048x1080
Input cable equalization:	+12 dB
Pre-emphasis on outputs:	+6 dB
EDID memory:	50 factory preset and 50 user programmable
EDID emulation:	256-byte extended EDID v1.3
HDCP compliant:	no
Power:	100 to 240 V AC internal power supply
Power consumption (9x9):	27 W (typ), 36 W (max)*
Power consumption (12x12):	31 W (typ), 44 W (max)*
Power consumption (16x16):	36 W (typ), 53 W (max)*
Heat dissipation (9x9):	92 BTU (typ), 123 BTU (max)*
Heat dissipation (12x12):	106 BTU (typ), 150 BTU (max)*
Heat dissipation (16x16):	123 BTU (typ), 181 BTU (max)*
Dimensions:	440 (482) W × 160 D × 176,5 H mm
Weight:	5 kg / product
Compliancy:	CE
Warranty:	3 years
*Maximum values are calculated when DVI +5V supplied for external devices but these values include only the consumption of the matrix itself.

Control
Front panel buttons:	yes
RS-232 / RS-422:	9600 Baud Rx; Tx
LAN:	Ethernet 10Base-T or 100Base-TX (Auto-Sensing)
WEB:	built-in website

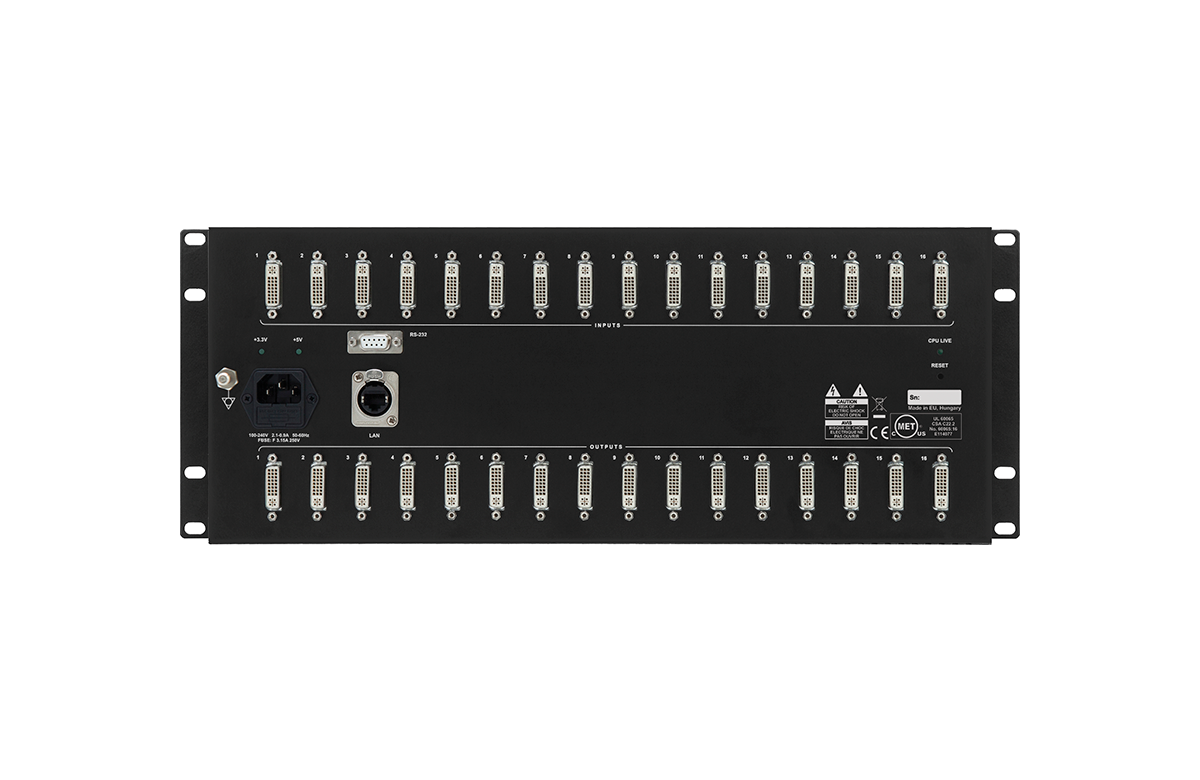

Connectors
Inputs/outputs:	29-pole DVI-I digital only
Ethernet:	Neutrik EtherCON
Serial port:	9-pole standard D-sub female
Power:	IEC C14 standard connector

The 7 inch depth, 4 RU high body and low noise fan design makes it ideal for many space and noise sensitive applications. The frames incorporate Lightware’s Advanced EDID Management function. The user can emulate any EDID on the switcher's inputs independently, read out and store any attached monitor's EDID in 100 internal memory locations, upload and download EDID files using Remote Control software. The crosspoint switcher can be controlled through a 9-pole D-sub connector via RS-232 or RS-422 protocol, and IP based Ethernet connection including web access through a Neutrik EtherCON connector which ensures a robust connection at all times.

Features

High power DVI 5V output

(for fiber adapters, etc)

Active fan cooling

Compact size

Directly mountable in 19" rack

EtherCON ruggedized LAN connector

Built-in universal power supply

Maximum resolution

1920x1200 or 2048x1080 (165MHz)

Uncompressed video up to 6.75 Gbps

(225 MHz pixel clock)

Other Features

Vista Spyder and Barco Encore

Available in 9x9, 12x12 + 16x16 I/O

Device control via Ethernet

and RS-232

Advanced EDID Management

Save and reload

full crosspoint configurations as preset

Intuitive control software

for device configuration

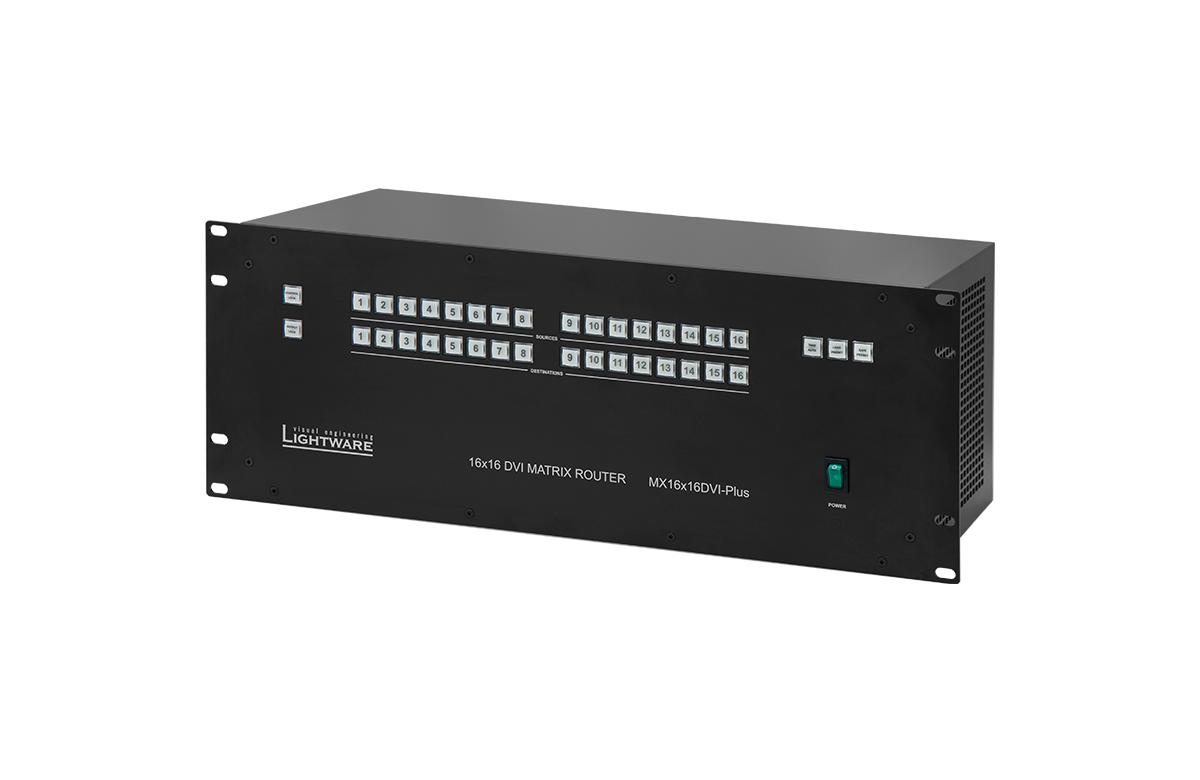

Front panel for crosspoint control

Routes DVI signals

from 16 inputs to 16 outputs

Non-blocking switching architecture

Built-in website for configuration

Routing HDMI 1.3 signals

(with embedded audio) without HDCP

No video compression

Firmware upgrade through Ethernet

No signal latency, zero frame delay
