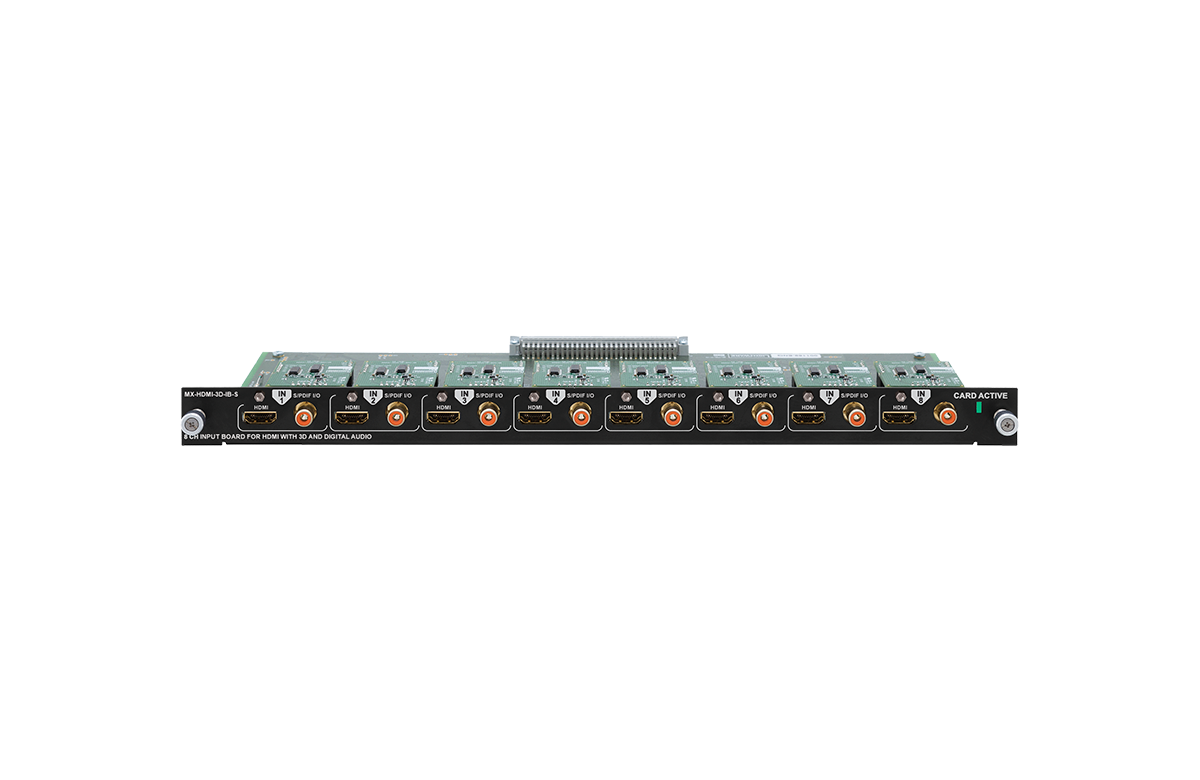

MX-HDMI-3D-IB-S
SKU: 91120009
DiscontinuedMX HDMI Input Board
Interested in this product?
MX HDMI Input Board MX‑HDMI‑3D‑IB-A provides eight channel HDMI 1.4 extension with 4K resolution, 3D formats and local audio support.
Details
Discover the MX Series
Versatile, High-Performance Video Switching Solutions
The MX Series features advanced matrix switchers for simple 4K UHD video and audio management, perfect for conference rooms, event venues, and operation centers.
Discover MX
Specification Table
| Specifications | |
| HDCP compliancy: | yes |
| Max resolution: | up to 4096 x 2160 |
| 3D signal compatibility: | frame packing, side-by-side, top-bottom |
| Input cable equalization: | 20 dB |
| Power consumption (3.3 V): | 0.79 A (typ.), 1.32 A (max.) |
| Power consumption (5 V): | 0.56 A (typ.), 0.93 A (max.) |
| Calculated AC Power (W): | 7.7 (typ.), 12.9 (max.) |
| Heat dissipation (BTU): | 28 (typ.), 47 (max.) |
| Weight: | 809 g |
| Input connectors: | HDMI, S/PDIF, PHOENIX |
| Analog audio inputs | |
| Volume: | -63 .. 0 dB |
| Gain: | 0 .. 24 dB |
| Balance: | 0 .. 100% |
| Phase invert: | On/Off |
| Analog audio outputs | |
| Volume: | -78 .. 0 dB |
| Bass: | 0 .. 24 dB |
| Treble: | 0 .. 6 dB |
| Balance: | 0 .. 100% |
| Phase invert: | On/Off |
| De-emphasis: | On/Off |
