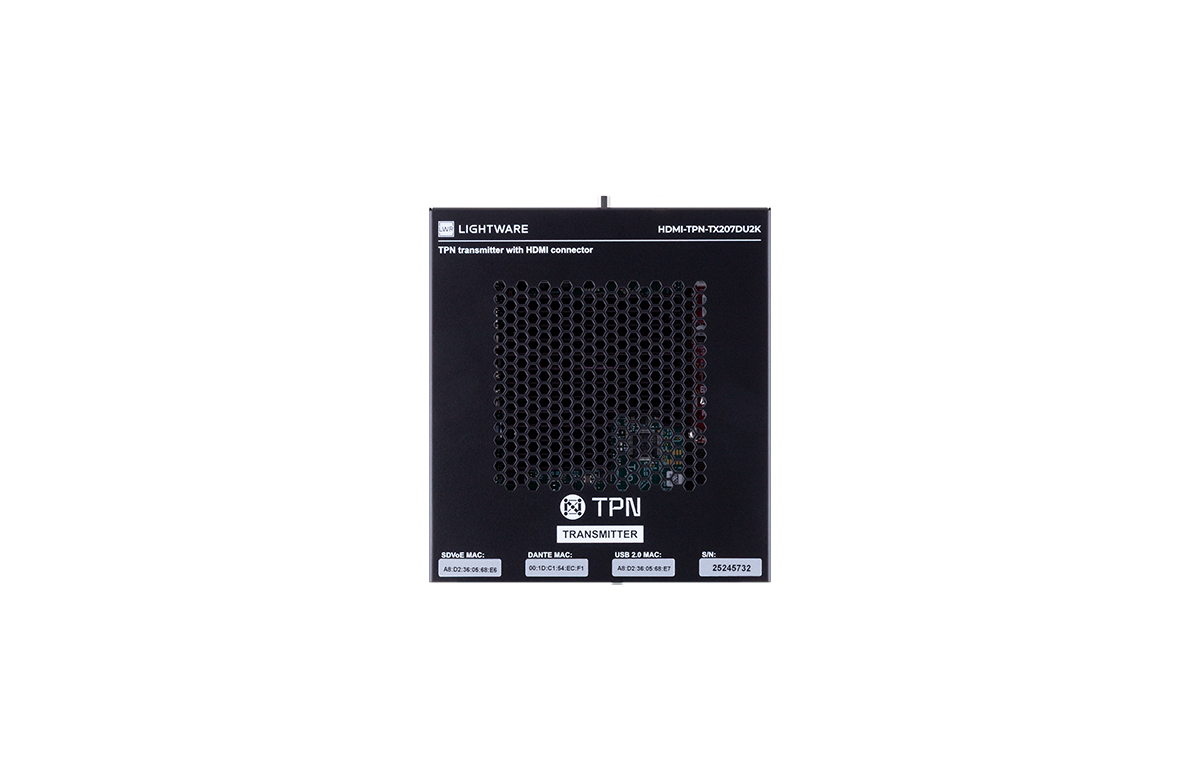

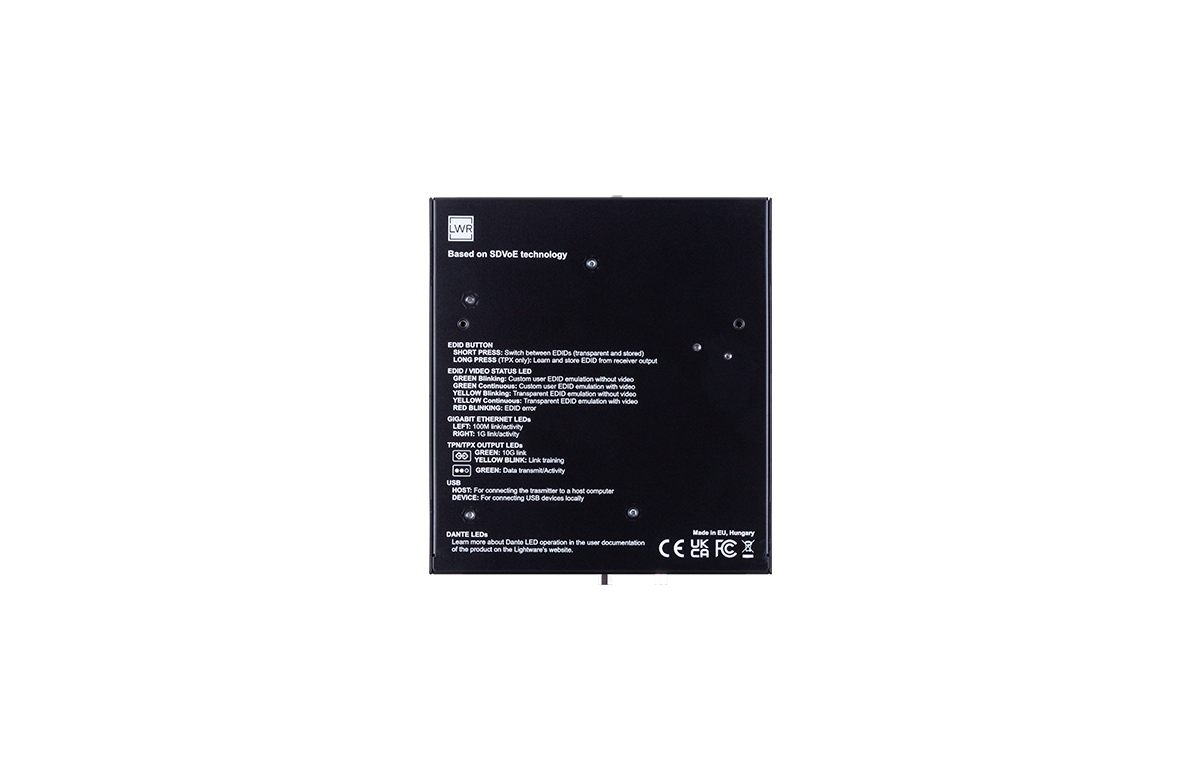

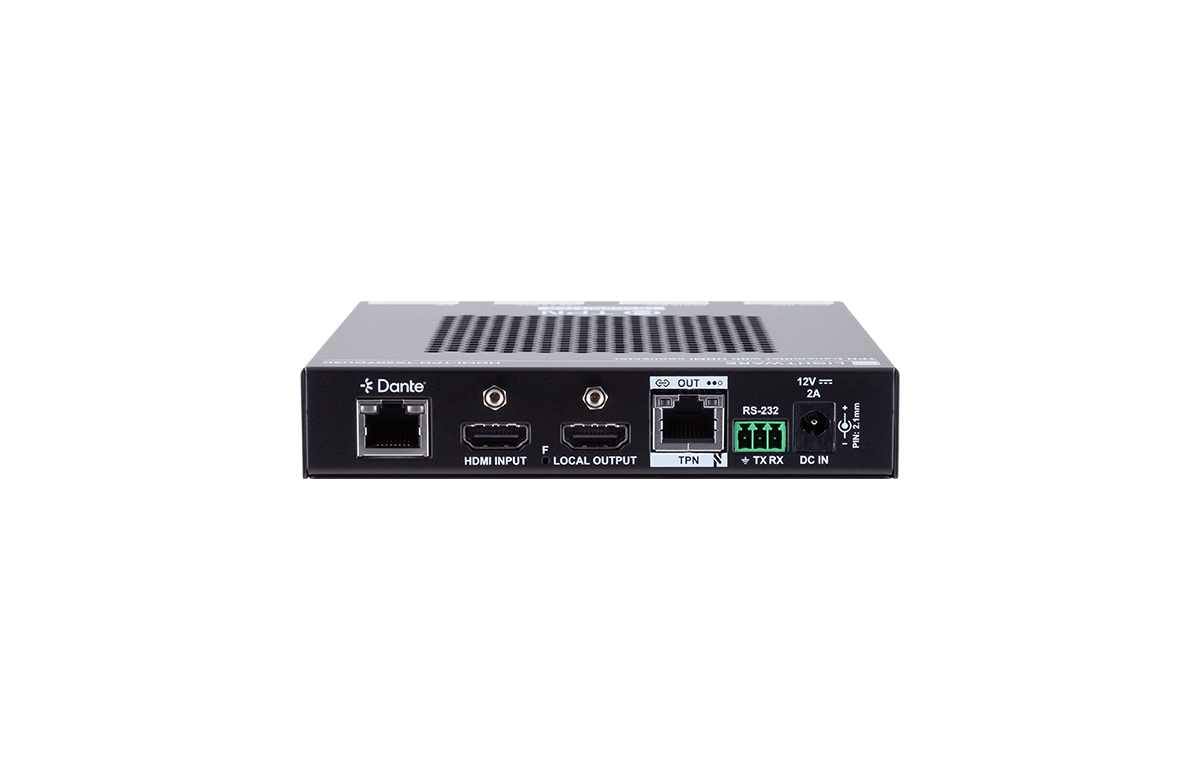

HDMI-TPN-TX207DU2K
SKU: 91710012
ShippingSDVoE compatible HDMI 2.0 scaling receiver with Dante audio
Details
SDVoE-compatible Transmitter for HDMI 2.0 Signals
The HDMI-TPN-TX207DU2K transmitter is based on SDVoE technology and allow users to extend HDMI 2.0 compliant video, audio and control signals from a single source to multiple destinations through 10G Ethernet networks. Moreover, these USB2.0 capable extenders also allow transparent and composite USB2.0 transmission in the opposite direction.
Ensure Simple Connectivity
Beyond the benefits of sending high-resolution video and USB2.0 data over long distances, the extenders are also able to handle various connectivity standards, including a 1G user Ethernet channel over the 10G link, as well as command injection into RS-232.
The Gigabit Ethernet ports are also valuable additions, allowing users to connect Ethernet capable devices to the network directly through the TPN extenders. This is particularly useful for controlling external devices like projectors and displays.
Take Control with EDID Management
HDCP 2.3 and basic EDID management functionality are also among the features offered by these devices, such as their connectivity and easy integration into a wide range of AV operations and with 3rd party devices, such as the Christie Terra projector.
Connect Remote USB-HID Devices
Composite USB2.0 transmission adds the ability to connect remote USB-HID devices to a host computer through an extender pair without re-enumeration on the host side. Besides this being a convenient and instantaneous way of switching keyboard and mouse control between multiple hosts, it also allows for added-value features like mouse roaming and hotkey detection.
Transparent USB2.0, on the other hand, provides support for various types of USB2.0 devices like webcams, microphones, touch displays just to name a few.
When using direct connection in point-to-point mode between HDMI-TPN-TX207AU2K and HDMI-TPN-RX107AU2K endpoints, both the transmitter and receiver are compatible with Lightware’s TPX family of products.
HDMI Solutions
Effortless AV Connectivity for Professionals
The HDMI-TPN series delivers high-performance HDMI signal extension, ensuring reliable video and audio transmission for professional AV installations over long distances.
Features
Allows for the reception of HDMI 2.0, embedded audio, Ethernet, and RS-232 from compatible TPN transmitters through a 10G Ethernet switch
By utilising rescaling, provides fast and seamless switching (with appropriate HDCP and signal format settings)
Supports rescaling either to the EDID of the connected display, or to custom resolutions
Plug&Play compatible with Lightware TPX devices
Can be remote powered through CATx cable (PoE PD)
Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
HDR and Low Latency Dolby Vision support when no scaling is applied
Transparent USB transmission (for various USB2.0 devices including cameras, microphones, and touch screens) and composite USB transmission (for USB-HID devices) when connected to USB2.0 compliant extenders (e.g. HDMI-TPN-TX207AU2K or USB20-1GBE-HS10
2 channels of LPCM audio embedded in the HDMI stream can be de-embedded to Dante/AES67 streams
Video wall functionality
is supported using the native SDVoE API.*
Other Features
Compatible with third-party SDVoE devices and controllers
HDCP 2.3 compliant
Ethernet extension (1 Gbps)
Command injection on RS-232
