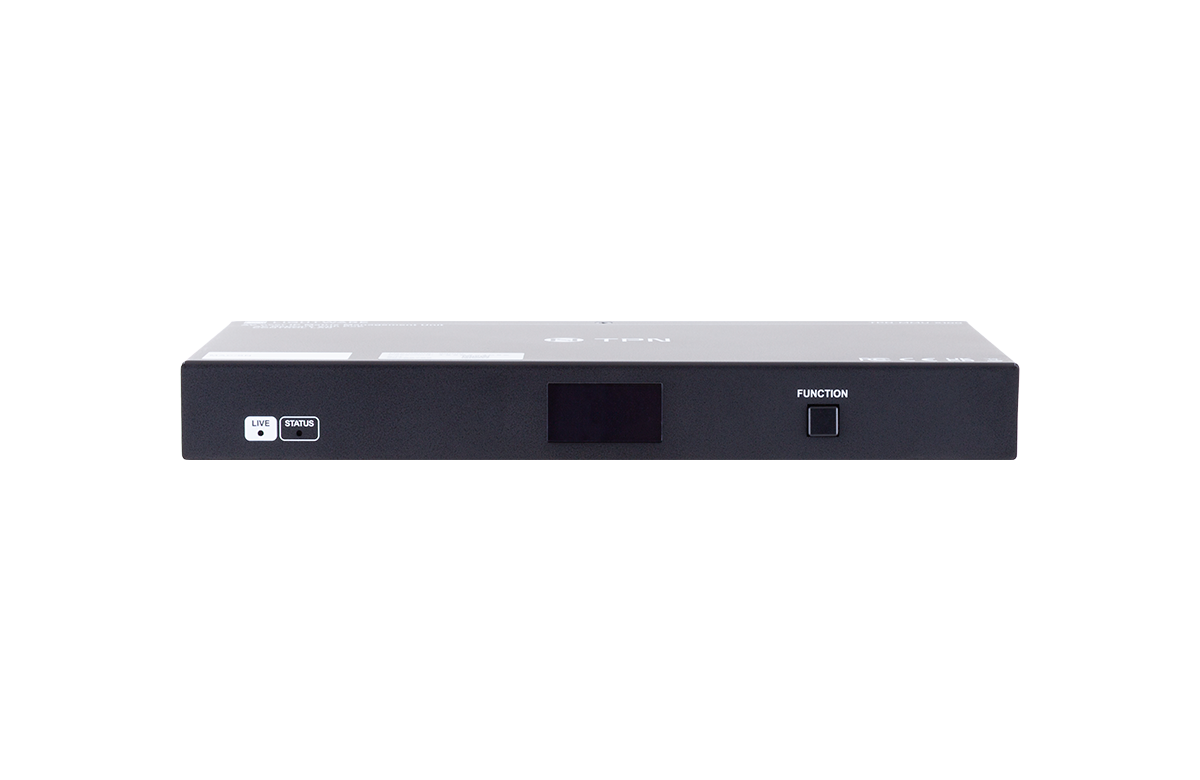

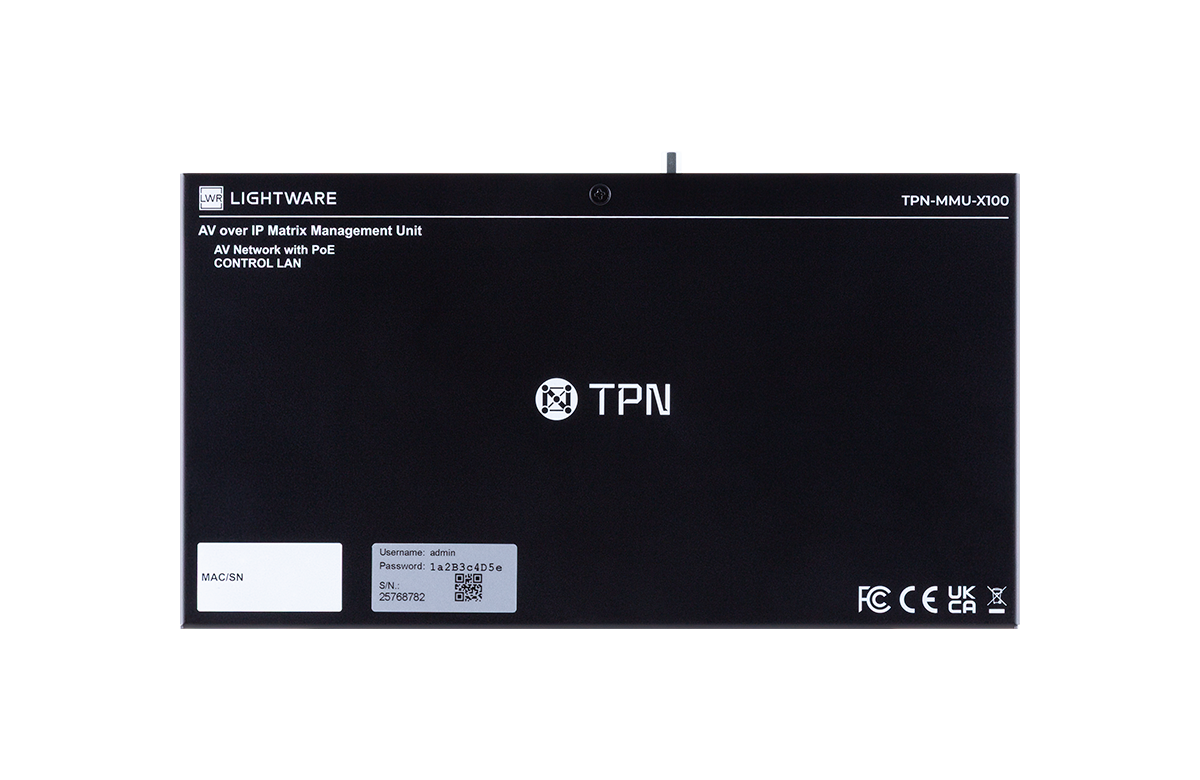

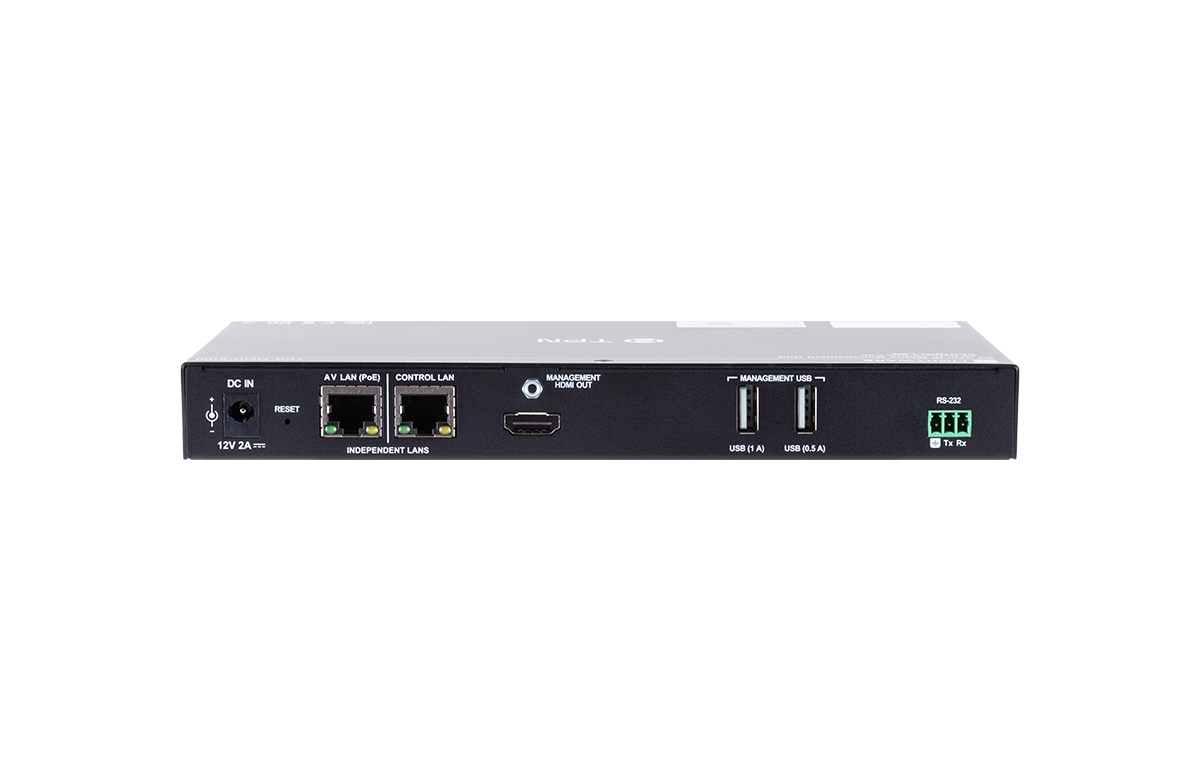

TPN-MMU-X100-20
SKU: 91710014
Coming soonManagement Unit for TPN Series
Details
Matrix Management Unit for Lightware’s new 10 Gb AV-over-IP extension family TPN, where scalability, flexibility and rapid deployment are in focus. It boasts enhanced features like. TPN is a virtual matrix system, designed for seamless switching of audio, video, and USB transmission, featuring a delay of less than 1 frame.
The TPN-MMU-X100 has been designed to enable the fastest and simplest configuration of Lightware TPN systems.
The TPN-MMU-X100 runs an SDVoE Control Server instance and exposes a Lightware API on top of it, allowing users to integrate their systems with minimal effort.
The TPN-MMU-X100-20 is the smaller version of the TPN-MMU-X100, recommended for controlling a maximum of 20 endpoints.
With its built-in device discovery feature and professional network management tools, the application ensures that system installation is both fast and error-free.
From the MMU interface, individual endpoints can be easily named, and all Lightware SDVoE-specific settings—including Serial (RS-232) port configuration—are accessible from one place.
The system also includes integrated video crosspoint routing (with upcoming USB and audio crosspoint support), making it simple to configure and later modify the connections of audio, USB, and video streams between endpoints.
When the Lightware TPN MMU is part of the system:
- You gain a centralized management layer - all TPN endpoints are discovered automatically and controlled from one interface.
- Configuration time is drastically reduced .settings can be pushed to multiple devices simultaneously.
- Crosspoint routing (video, audio, USB) is visual, fast, and intuitive - (First release USB and Audio will just follow the Video)
- The MMU creates a bridge between AV and IT, allowing secure deployment within both AV Network and Corporate network environments.
Specification Table
| Operating Temperature |
0 to 45°C (32 to 113 °F), 10% to 90%, non-condensing |
| Storage Temperature | -20 to 70°C (-4 to 158 °F), 10% to 90%, non-condensing |
| Power Consumption | < 4 W |
| ESD Protection Human-body Model | ±8kV (Air-gap discharge) / ±4kV (Contact discharge) |
| Dimensions | 221mm x 25mm x 120mm (W x H x D) |
| Weight | 698g (without power supply) |
Compatible Product Families
HDMI-TPN Series
Taurus TPN Series
HDMI-OPTN Series
Features
Integrated Device Discovery
Automatically detects and manages SDVoE devices through a built-in, intuitive interface.
Easy TPN System Configuration
Quickly and easily build complete system configurations with dynamic endpoint naming.
Advanced Network Configuration
Simplified setup for both automatic and static IP addressing. Includes intelligent error detection to resolve potential network incompatibilities.
Secure Multi-Network Operation
Operates seamlessly across AV Utility and Corporate network segments, ensuring secure and reliable integration.
Scalable Control Management
Centrally manage up to 20 connected endpoints simultaneously from a single interface.
Comprehensive Endpoint Configuration
Easily configure scaler settings, RS-232 serial parameters, and inject custom commands directly from the management interface.
Intuitive Video Crosspointing
Seamless video routing between transmitters and receivers, ensuring flexible and efficient signal control.
Built-in LARA Support
Includes integrated LARA audio communication and monitoring features within the MMU interface.
Other Features
Future-Ready Platform
Firmware-upgradable architecture designed for upcoming protocol extensions and new device families.
