HDMI-OPTN-RX100AU2K-SR

SKU: 91536002

Coming soon

SDVoE-based Point-to-multipoint HDMI 2.0 over Fiber Optical Link Scaling Receiver

Interested in this product?

Optical HDMI 2.0 scaling receiver with analog audio output, local video output, KVM, and full USB2.0 support for point-to-multipoint (networked) applications. Full 4K HDMI 2.0 and HDCP 2.3 compliant with scaling and seamless switching (SFP+ module not included)

User Manual

Firmware

Details

Fiber Optical Extender for HDMI 2.0 Signals

The HDMI-OPTN-RX100AU2K-SR receiver devices are fiber extenders based on SDVoE technology and allow users to extend HDMI 2.0 compliant video, audio and control signals from a single source to multiple destinations through a fiber optical link.

Ensure Simple Connectivity

Beyond the benefits of sending high-resolution video and USB2.0 data to a distance of up to 10km via fiber, the extenders are also able to handle various connectivity standards, including a 1G user Ethernet channel over the 10G link, as well as command injection into RS-232.

The in-built scaler can cater for adjusting the video content to the format of the attached display. Moreover, the scaler is also able to handle glitches in the video arriving at the input of the corresponding transmitter by outputting an uninterrupted HDMI signal.

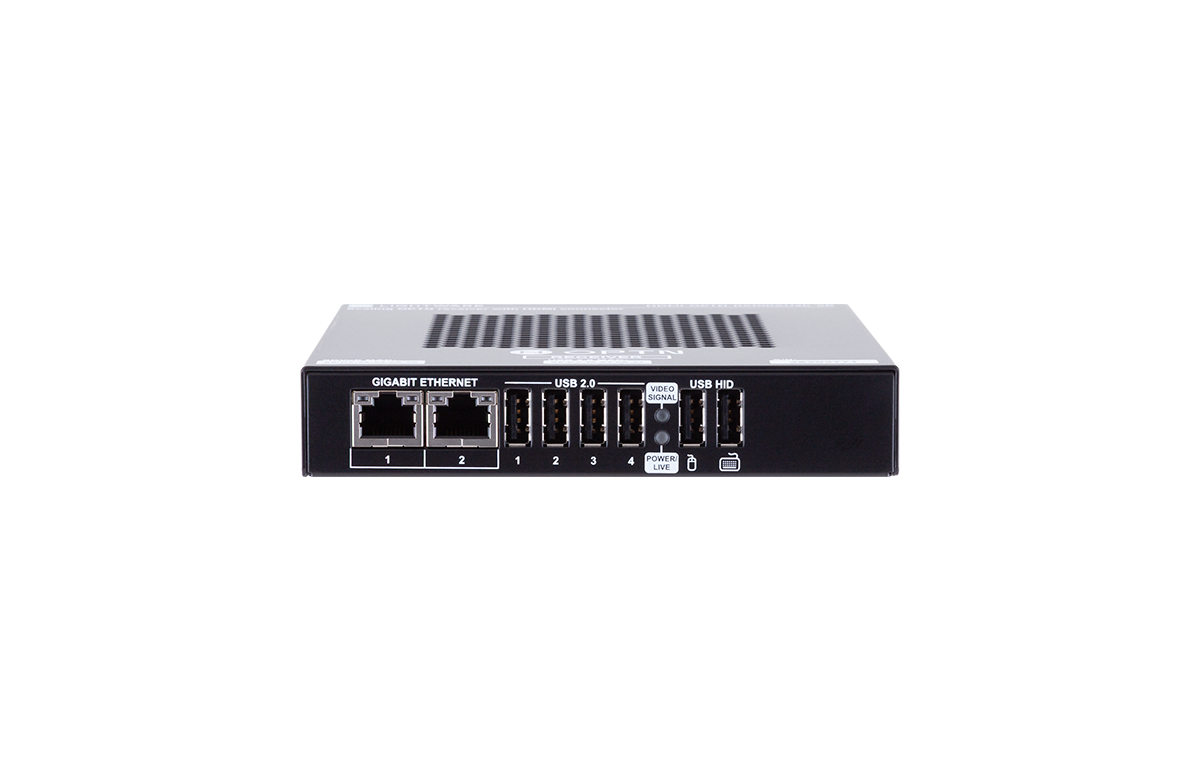

The Gigabit Ethernet ports are also valuable additions, allowing users to connect Ethernet capable devices to the network directly through the OPTX extenders. This is particularly useful for controlling external devices like projectors and displays.

Take Control with EDID Management

HDCP 2.3 and basic EDID management functionality are also among the features offered by these devices, such as their connectivity and easy integration into a wide range of AV operations and with 3rd party devices, such as the Christie Terra projector.

USB2.0 Device Connectivity

Composite USB2.0 transmission adds the ability to connect remote USB-HID devices to a host computer through an extender pair. Transparent USB2.0, on the other hand, provides support for various types of USB2.0 devices like webcams, microphones, touch displays just to name a few.

A Portfolio of Cables with Validated SFP Modules

No matter which type of cable you choose when building your network system, we can provide a validated and fully compatible SFP module. Just like the cables, these modules are available in our portfolio. For more information or any related inquiries, please contact your nearest Lightware Sales office.

Features

Transmission distance of up to 10km (when SM SFP+ module is used)

Offers scaling for format conversion and uninterrupted output

SFP+ cage for single mode or multimode SFP+ modules

Allows for the transmission of HDMI 2.0, embedded audio, Ethernet, and RS-232 data between an extender pair through single mode or multimode fiber

Transparent USB transmission mode (for various USB2.0 devices including cameras, microphones, and touch screens) and composite USB transmission mode (for USB-HID devices)

Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
