USB20 1GBe Configurator

SKU: USB20 1GBe Configurator

Shipping

Effortless configuration for Icron-based Lightware USB extension devices

Interested in this product?

USB20 1GBe Configurator is a free Windows utility designed to streamline the configuration of Lightware devices with Icron-based SB extension capabilities. It enables fast setup, intuitive device pairing, and efficient system deployment for AV professionals.

Details

Download the USB20 1GBe Configurator

Fill out the form to access the USB20 1GBe Configurator and ensure seamless device configuration.

USB20 1GBe Configurator is a dedicated software tool for configuring Lightware products with USB extension functionality. The application automatically detects compatible devices on the network and provides a user-friendly interface for setting IP addresses, assigning device roles (LEX, REX, or BiDi), and selecting USB operating modes such as Virtual Hub, MSA, or Single Port.

With its visual crosspoint interface, users can easily pair devices and adjust system layout. The built-in REST API enables intuitive crosspoint control and status monitoring, helping seamless third-party integration. For streamlined deployments, the software supports exporting and importing configurations via editable JSON files—ideal for replicating setups or restoring earlier states.

Developed exclusively for Lightware devices, USB20 1GBe Configurator simplifies Icron-based USB extension configuration across a range of professional AV environments.

Specification Table

Minimum System Requirements
Operating Systemﾠ	Windows 10 (64-bit)
CPU	ﾠSingle core 2.0 GHz
RAM	2 GB
Storage	300 MB free space
Display Resolutionﾠ	1600 × 900

Features

Auto Device Discovery

USB Role & Mode Configuration

Crosspoint Interface

Built-in REST API

JSON Import/Export

Configuration Validation

Compatible Devices

HDMI-OPTN-RX100AU2K-SR

Optical HDMI 2.0 scaling receiver with analog audio output, local video output, KVM, and full USB2.0 support for point-to-multipoint (networked) applications. Full 4K HDMI 2.0 and HDCP 2.3 compliant with scaling and seamless switching (SFP+ module not included)

HDMI-OPTN-TX200AU2K

Optical HDMI2.0 transmitter with analog audio output, local video output, KVM, and full USB2.0 support for point-to-multipoint (networked) applications. Full 4K HDMI 2.0 and HDCP 2.3 compliant (SFP+ module not included)

HDMI-TPN-RX107AU2K-SR

The HDMI-TPN-RX107AU2K-SR scaling receiver device is based on SDVoE technology. When installed in a networked environment with corresponding TPN transmitters or SDVoE- compatible third-party TX units, the HDMI-TPN-RX107AU2K-SR allows users to receive HDMI 2.0 compliant video, audio and control signals from compatible transmitters through 10G Ethernet networks. Moreover, this USB2.0 capable extender also allows transparent and composite USB2.0 transmission in the opposite direction.

HDMI-OPTN-RX100AU2K

Optical HDMI2.0 receiver with analog audio output, local video output, KVM, and full USB2.0 support for point-to-multipoint (networked) applications. Full 4K HDMI 2.0 and HDCP 2.3 compliant (SFP+ module not included)

UCX-4x3-TPN-TX30-R

Rack-mountable universal transmitter switcher is part of the AV over IP ecosystem with SDVoE technology that provides the same functionality as the UCX product range from a single source to multiple destinations through 10G Ethernet networks. All the cabling on the rear and internal power supply allow easy installation in racks, lecterns or credenzas.

UCX-2x1-TPN-TX20

Universal transmitter switcher is part of the AV over IP ecosystem with SDVoE technology that provides the same functionality as the UCX product range from a single source to multiple destinations through 10G Ethernet networks.

UBEX-PRO20-HDMI-F130

UBEX is an optical scaling extender which allows 4K UHD@60Hz 4:4:4 uncompressed signal extension with latency-free multistreaming. The device is designed to use Video Over IP transmission on a 10G Ethernet network with full USB 2.0 support.

UCX-4x3-TPN-TX20

Universal transmitter switcher is part of the AV over IP ecosystem with SDVoE technology that provides the same functionality as the UCX product range from a single source to multiple destinations through 10G Ethernet networks.

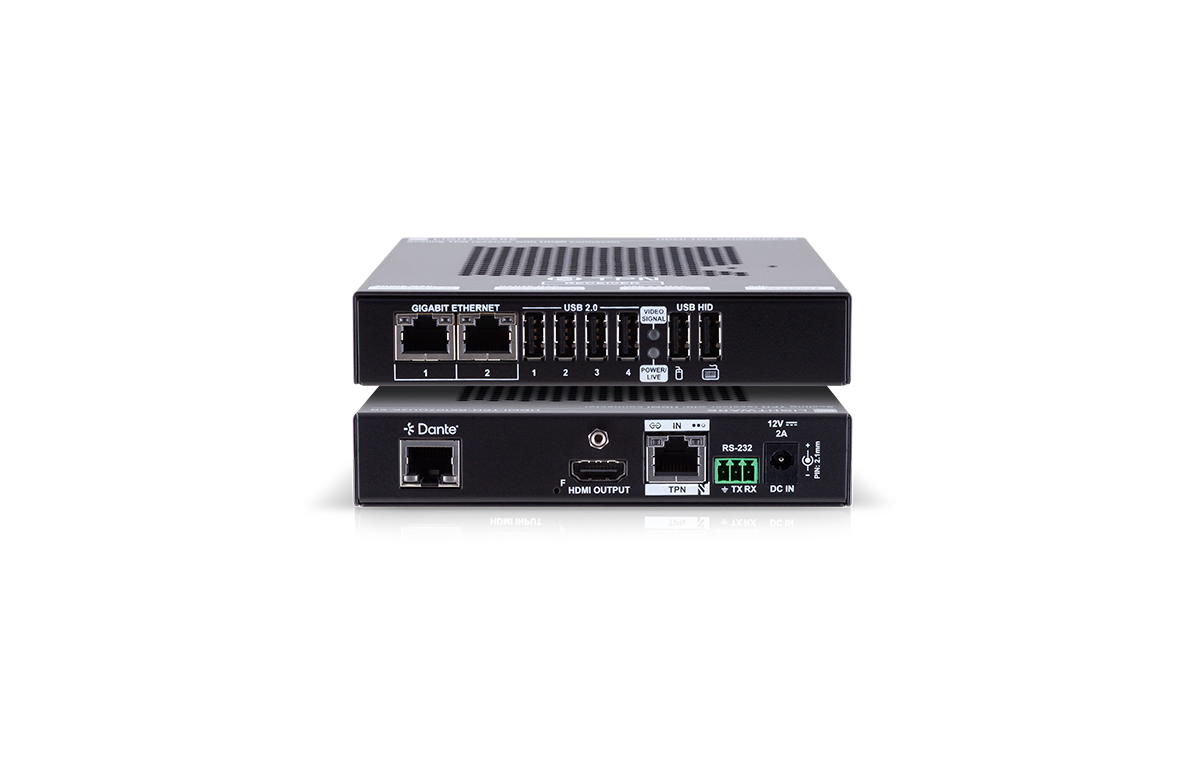

HDMI-TPN-RX107DU2K-SR

The HDMI-TPN-RX107DU2K-SR scaling receiver device with Dante audio is based on SDVoE technology. When installed in a networked environment with corresponding TPN transmitters or SDVoE-compatible third-party TX units, the HDMI-TPN-RX107DU2K-SR allows users to receive HDMI 2.0 compliant video, audio and control signals from compatible transmitters through 10G Ethernet networks. Moreover, this USB2.0 capable extender also allows transparent and composite USB2.0 transmission in the opposite direction.

HDMI-TPN-RX107AU2K

The HDMI-TPN-TX207AU2K and HDMI-TPN-RX107AU2K transmitter and receiver devices are based on SDVoE technology and allow users to extend HDMI 2.0 compliant video, audio and control signals from a single source to multiple destinations through 10G Ethernet networks. Moreover, these USB2.0 capable extenders also allow transparent and composite USB2.0 transmission in the opposite direction.

USB20-1GBE-DS4P

Being part of an ExtremeUSB(R) USB 2.0 extension solution, this remotely powerable extender can be used to attach USB devices and transmit their data over the LAN or directly towards any AV device that functions as a compatible host side extender.

USB20-1GBE-HS13P

Being part of an ExtremeUSB(R) USB 2.0 extension solution, this remotely powerable extender can be used to receive USB data directly or over the LAN from multiple AV devices which function as compatible device side extenders.

HDMI-TPN-TX207AU2K

The HDMI-TPN-TX207AU2K and HDMI-TPN-RX107AU2K transmitter and receiver devices are based on SDVoE technology and allow users to extend HDMI 2.0 compliant video, audio and control signals from a single source to multiple destinations through 10G Ethernet networks. Moreover, these USB2.0 capable extenders also allow transparent and composite USB2.0 transmission in the opposite direction.

USB20-1GBE-DS4

Being part of an ExtremeUSB® USB 2.0 extension solution, this extender can be used to attach USB devices and transmit their data over the LAN or directly towards any AV device that functions as a compatible host side extender.

USB20-1GBE-HS10

Being part of an ExtremeUSB™ USB 2.0 extension solution, this extender can be used to receive USB data directly or over the LAN from multiple AV devices which function as compatible device side extenders.
