UCX-4x3-TPN-TX30-R
SKU: 91310107

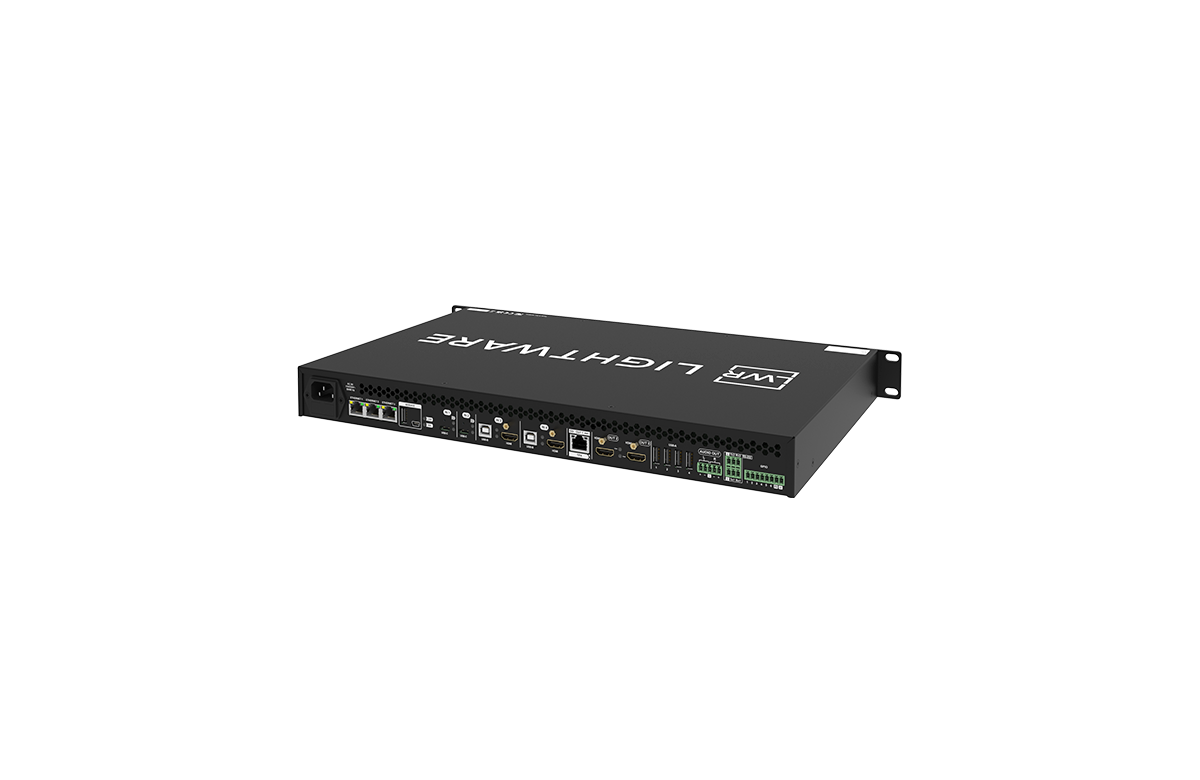

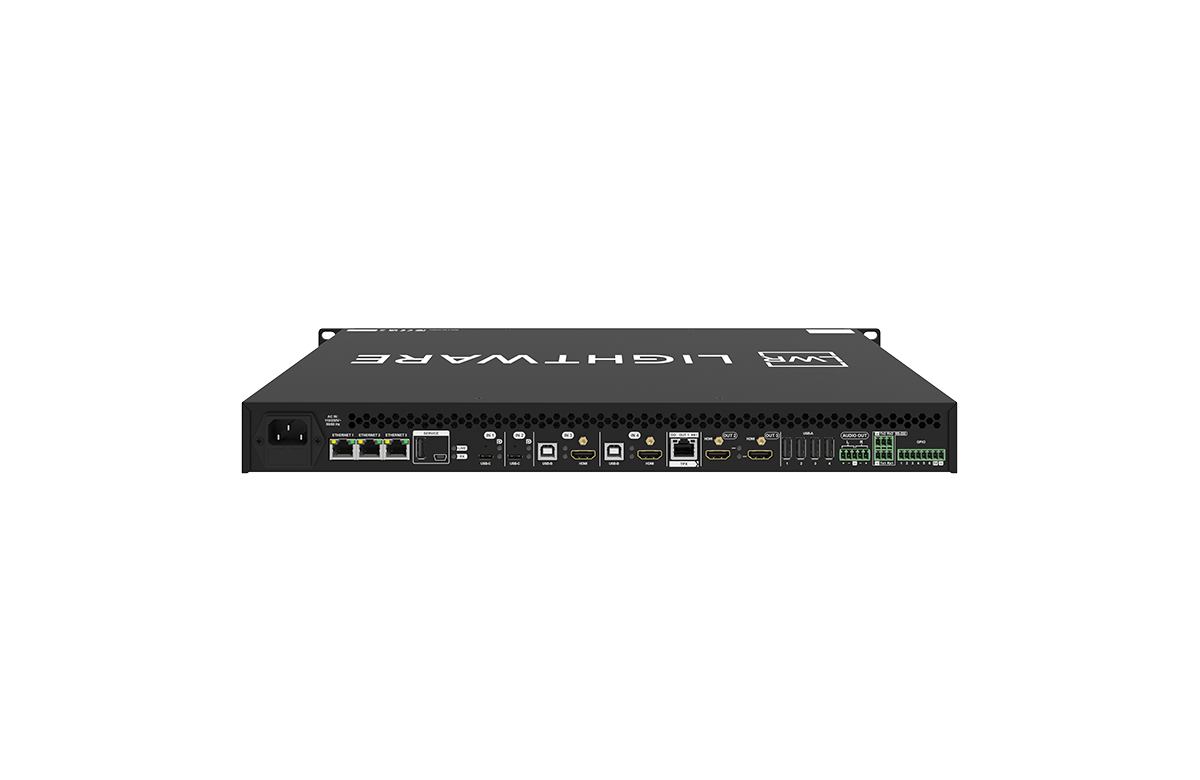

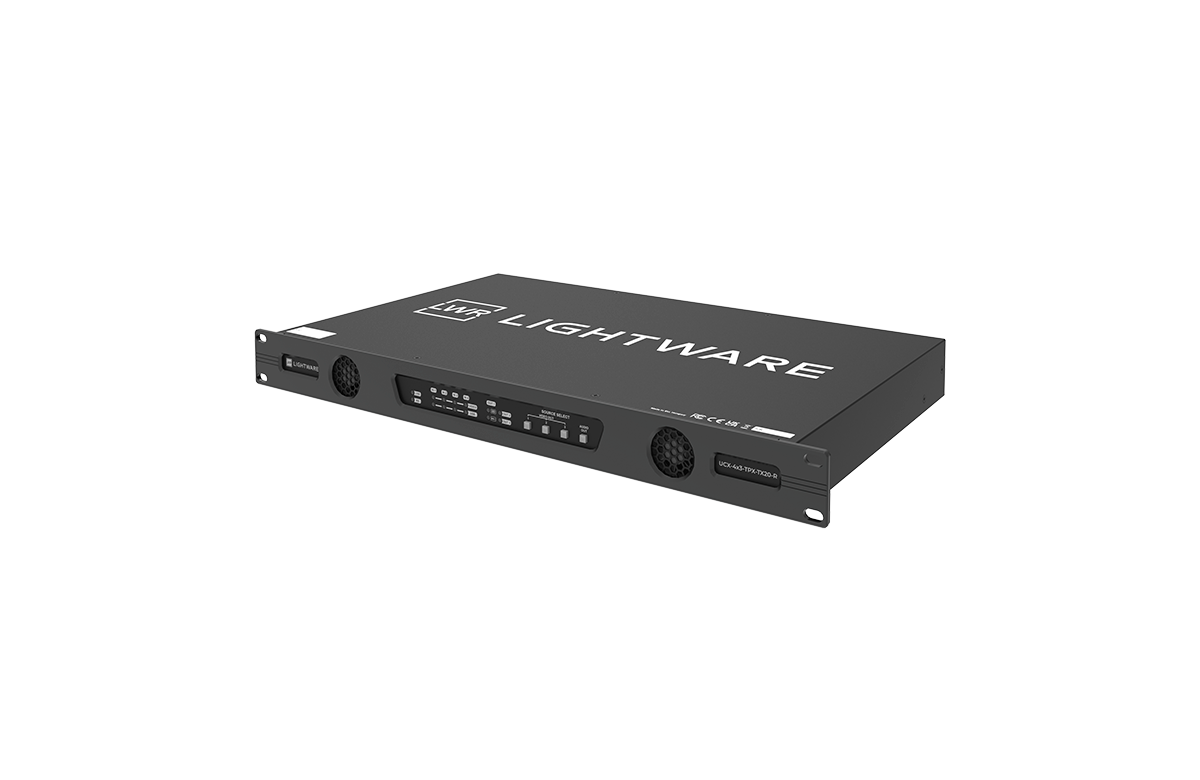

Coming soonRack-mountable USB Type-C and HDMI Matrix Switcher Transmitter
Details

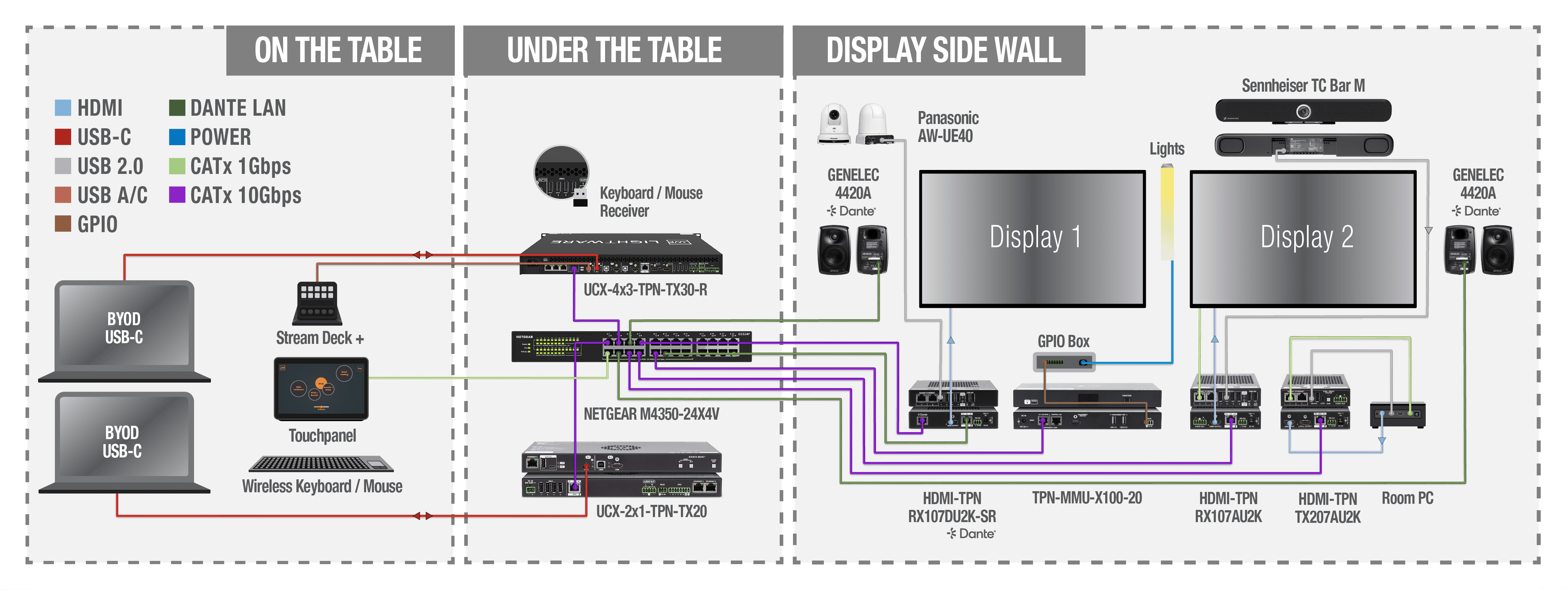

Rack-mountable universal transmitter switcher is part of the AV over IP ecosystem with SDVoE technology that provides the same functionality as the UCX product range from a single source to multiple destinations through 10G Ethernet networks. All the cabling on the rear and internal power supply allow easy installation in racks, lecterns or credenzas. At the same time, the bundle overcomes the limitations imposed by the USB and HDMI cables and allows for the extension of video, audio, and control signals in one direction and the USB 2.0 data in the other up to a transmission distance of 100m.
Moreover, the transmitter can provide remote power to the connected receiver up to the power limit of 25.4W of the PoE+ specification.
Remote System Logging (Syslog)
Taurus devices now support remote system logging via industry-standard Syslog protocols (RFC3164 and RFC5424). This allows seamless integration with external SIEM and log monitoring systems.
- Forward logs via TCP, UDP, TLS
- Choose between human-readable and structured formats
- Easy configuration via LW3 protocol
- Local journald logging remains unaffected
Features
USB-C charging
up to 100W, with 120W total output
Over a single USB-C connection
Dual port Video, Audio, Data and Charging Power
Multiple USB 2.0 connectivity
For any type of USB device (Camera, speakerphone, touch monitor, USB-HID devices etc.)
Room device control
Via Ethernet (TCP/IP), Serial, OCS or local GPIOs
Independent USB Host switching layer
for multiple USB hosts, for devices connected to TPN receivers and for 4 devices at TX side
Allows transmission
of USB-C, HDMI 2.0, embedded audio, Ethernet, RS-232 to multiple TPN receiver devices through a 10G Ethernet switch
SDVoE Control
Integrated SDVoE Control Server
Variant available with NIST FIPS 140-2
certified Lightware Crypto Core (UCX-4x3-TPN-TX20-LCC, SKU: 91360035)
Other Features
CEC at the HDMI outputs
Supporting Lightware Advanced Room Automation (LARA)
Supports uncompressed HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps, 600 MHz pixel clock)
Welcome Screen for custom corporate logo and on-screen display warning messages
Occupancy sensor (OCS) connection at the RX device (with 24V power supply), GPIO control ports at TX device
SSH, SSL, and HTTPS for IT security
Multiple Ethernet network configurations fitting various corporate network topologies and IT security standards (e.g. 802.1x compliance)
Audio de-embedding
Remote system logging
