MX8x8DVI-DL
SKU: 91310013
Discontinued8x8 Dual link DVI matrix switcher
Details

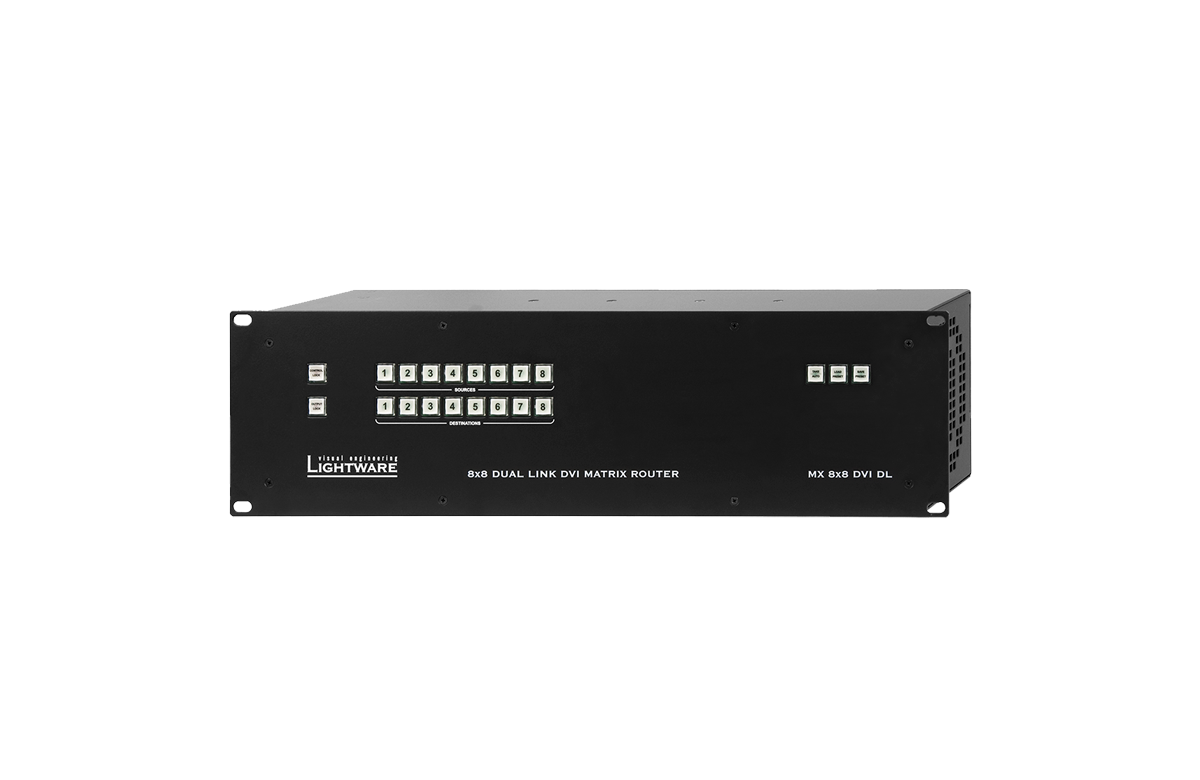

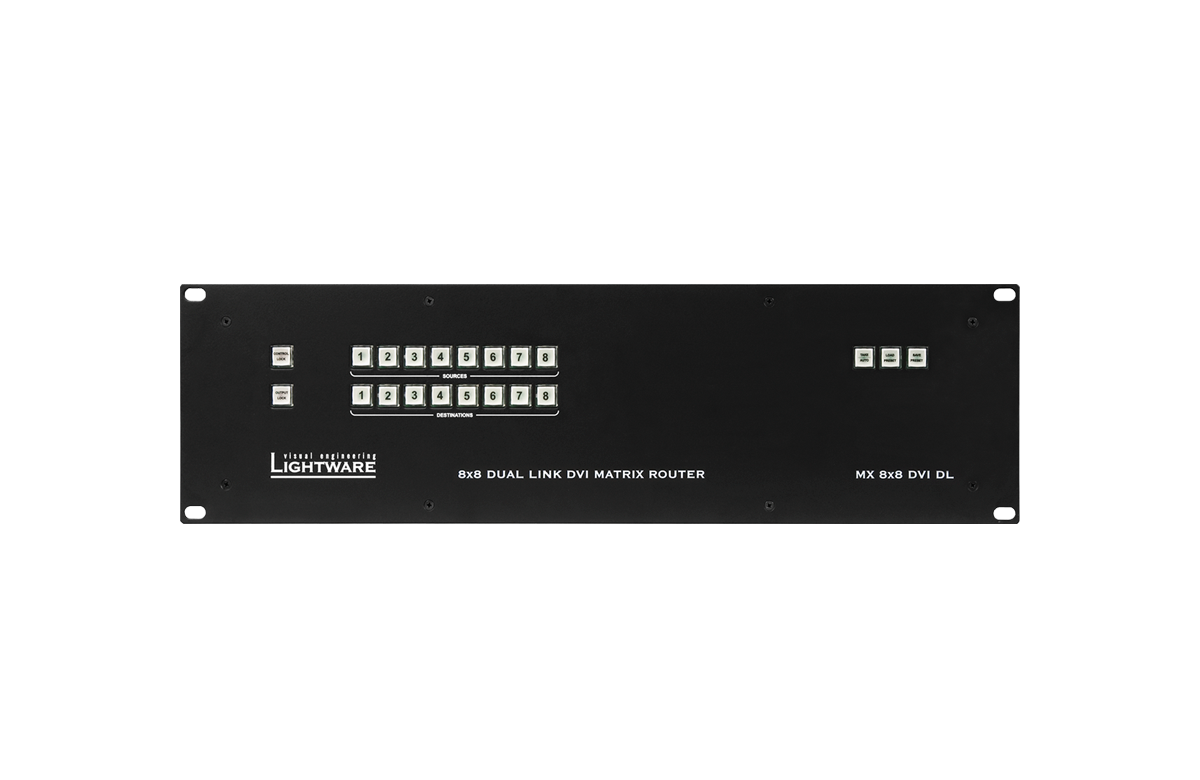

Lightware MX8x8DVI-DL is a Dual-Link DVI crosspoint matrix switcher supporting all Single-Link and Dual-Link DVI-D resolutions coming from PC VGA cards or other DVI-D sources. The device supports resolutions from 640 x 480 @ 60Hz to 3840 x 2400 including all HDTV resolutions: 720p, 1080i, 1080p and 2K. The DVI matrix routers have non-blocking architecture, that route DVI signals to any displays for example LCD and Plasma monitors or projectors. All outputs support 500 mA power on DVI +5V pin to power fiber optical DVI cables.
The DVI Matrix switcher has an Advanced EDID Management feature that learns and stores 100 EDID's, and emulates any monitor resolution on its different inputs. The unit can be controlled either by RS-232 / RS-422 port or TCP/IP LAN connection or by built-in website.
Specification Table
| Connectors | |
| Inputs: | 24 pole DVI-D connectors |
| Outputs | 24 pole DVI-D connectors |
| RS-232 or 422: | 9p D-sub female |
| LAN: | RJ45 |
| Power: | IEC Power inlet |
| Specifications | |
| Inputs: | DVI-D dual link |
| Bit rate: | 1.65 Gbit/ color |
| Resolution: | all from 640x480@60Hz to 3840x2400 |
| EDID memory: | 50 factory preset, and 50 user programmable |
| Equalization: | No |
| RS-232/422: | 9600 Baud Rx; Tx |
| LAN: | Ethernet 10Base-T or 100Base-TX (Auto-Sensing) |
| Matrix: | 8x8 non-blocking, any input(s) to any output(s) |
| Outputs: | DVI-D dual link |
| Reclocking: | No |
| Power: | 100 to 240 V AC 1.4 A |
| Power consumption: | 26 W |
| Dimensions: | 446 (482)W x 103D x 133H mm |
| Net weight: | 4,25 Kg |
