MX8x8DVI-HDCP-Pro
SKU: 91310004
Discontinued8x8 DVI Router with HDCP 1.2, HDMI 1.3 and DVI 1.0 Compatibility
Details
Recommended Alternative
1 product
Specification Table
| Specifications | |
| Routing | |
| 8x8 non-blocking - | any input(s) to any output(s) |
| Bit rate: | 2.25 Gbit/s per color |
| Resolution: | 640x480 to 1920x1200 or 2048x1080 deep colour |
| EDID memory | 50 factory preset, and 50 user programmable |
| EDID emulation | 256 Byte Extended EDID v1.3 |
| Connectors | |
| Power: | IEC standard |
| Inputs: | 29 pole DVI |
| Outputs: | 29 pole DVI |
| Serial control: | 9 pole D-sub |
| Ethernet: | RJ45 |
| Control | |
| Front panel buttons: | Yes |
| RS-232/422: | 9600 Baud Rx; Tx |
| LAN: | Ethernet 10Base-T or 100Base-TX (Auto-Sensing) |
| WEB: | built-in website |
| Power: | |
| Power consumption: | 72,6W (typ) 94,3W (max) |
| Housing: | 1U rack mount metal enclosure |
| Compliance: | CE |
| Dimensions: | 446 (482)W x 413D x 43,9H mm |
| Net weight: | 6,52 Kg |
| Warranty: | 3 years |

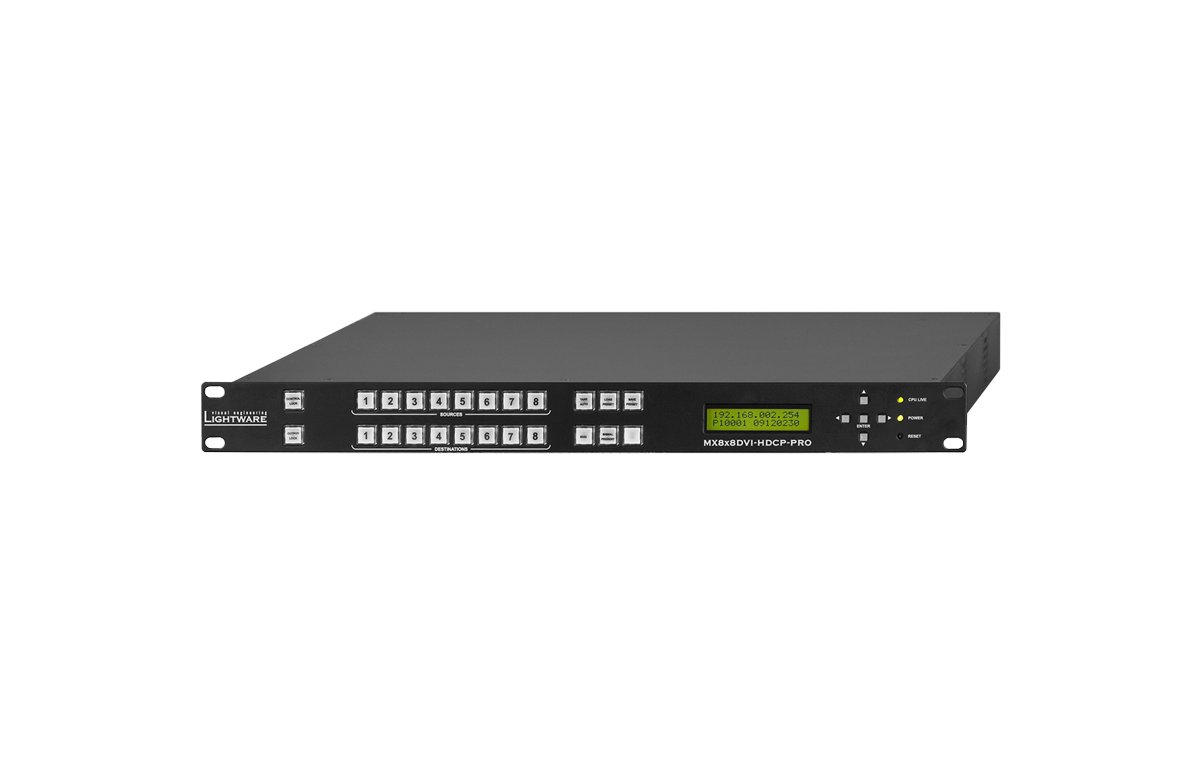

MX8x8DVI-HDCP-Pro digital video router supports DVI 1.0, HDCP 1.2 and HDMI 1.3 with 36 bit deep colour.
This router offers eight inputs and eight outputs with 29 pole screw lockable DVI-I connectors. The built-in sophisticated software and hardware features make the router the most flexible and integrated solution for AV professionals and high end home theatre applications. Any input can be switched to any or more outputs without switching delay or frame latency. Supporting the latest HDMI 1.3 36 bit deep colour standard, it can be connected even to the latest BluRay players, set top boxes or AV receivers or Apple TV.
Advanced HD audio transmission and sample rate conversion proves the compatibility with previous generation products whilst handling the Dolby TrueHD and DTS-HD formats as well. DVI, HDMI and HDCP signals can be seamlessly integrated in any AV system using Lightware MX8x8DVI-HDCP-Pro.
All inputs are equalized and reclocked for up to 60 meter long DVI copper cable, and all outputs of the matrix router are reclocked for stable, jitter free signal transmission. The unit can be controlled either by RS-232/RS-422 port or TCP/IP LAN connection or by built-in website.
Features
Status LED for video detection
Frame Detector
(analyze detailed video timings)
High power DVI 5V output
(for fiber adapters, etc)
PCM audio subsampling by 2x or 4x
Active fan cooling
Directly mountable in 19" rack
Built-in universal power supply
Supports embedded audio formats
(including PCM, Dolby Digital and DTS)
Other Features
Automatic or adjustable color space
and color range conversion
Input cable equalization
up to 50m at 1080p60Hz (with high quality DVI/HDMI)
HDCP enable/disable function, input
HDMI 1.3, HDCP 1.1 and DVI 1.0
Uncompressed video up to 6.75 Gbps
(225 MHz pixel clock)
Vista Spyder and Barco Encore
Device control via Ethernet
and RS-232
Advanced EDID Management
(50 Factory presets, 50 user programmable slots)
Save and reload
full crosspoint configurations as preset
Front panel LCD menu
and buttons for crosspoint control
Intuitive control software
for device configuration
Front panel for crosspoint control
Non-blocking switching architecture
Built-in website for configuration
Supports deep color signals
(24/30/36 bit RGB/YCbCr 4:4:4)
Pixel Accurate Reclocking
No video compression
HDCP 1.4 compliant
Firmware upgrade through Ethernet
Video format conversion
Automatic or adjustable (DVI, HDMI or HDMI deep color)
No signal latency, zero frame delay
