MX8x8HDMI-Pro
SKU: 91310014
DiscontinuedHDCP Compliant Pro Series 8x8 HDMI Matrix
Details
Recommended Alternative
1 product
Specification Table
| Connectors | |
| Power: | IEC standard |
| Inputs | HDMI |
| Outputs: | HDMI and S/PDIF |
| Serial control: | 9-pole D-sub |
| Ethernet: | RJ45 |
| Specifications | |
| Routing: | 8x8 non-blocking - any input(s) to any output(s) |
| Bit rate: | 2.25 Gbit/s per color |
| Resolution: |
640 x 480 to 1920 x 1200 or 2048 x 1080 deep color |
| EDID memory: | 50 factory preset and 50 user programmable |
| EDID emulation: | 256 Byte extended EDID v1.3 |
| Front panel buttons: | Yes |
| RS-232 / RS-422: | 9600 Baux Rx; Tx |
| LAN: | Ethernet 10 Base-T or 100 Base-TX (auto-sensing) |
| WEB: | Built-in website |
| Power: | 100 to 240 V AC 3.0 Amps internal power supply |
| Power consumption: | 72.6 W (typ), 94.3 W (max) |
| Dimensions: | 446 (482) W x 413 D x 43.9 H mm |
| Weight: | 6250 g |
| Compliancy: | CE |
| Warranty: | 3 years |
| Control | |
| Front panel buttons: | Yes |
| RS-232 / RS-422: | 9600 Baud Rx; Tx |
| LAN: | Ethernet 10Base-T or 100Base-TX (Auto-Sensing) |
| WEB: | built-in website |
| Power: | 100 to 240 V AC 3.0 Amps internal power supply |
| Power consumption: | 72,6W (typ), 94,3W (max) |
| Dimensions: | 446(482)W x 413D x 43,9H mm |
| Housing: | 1U rack mount metal enclosure |
| Compliance: | CE |
| Net weight: | 6520 gramms |
| Warranty: | 3 years |

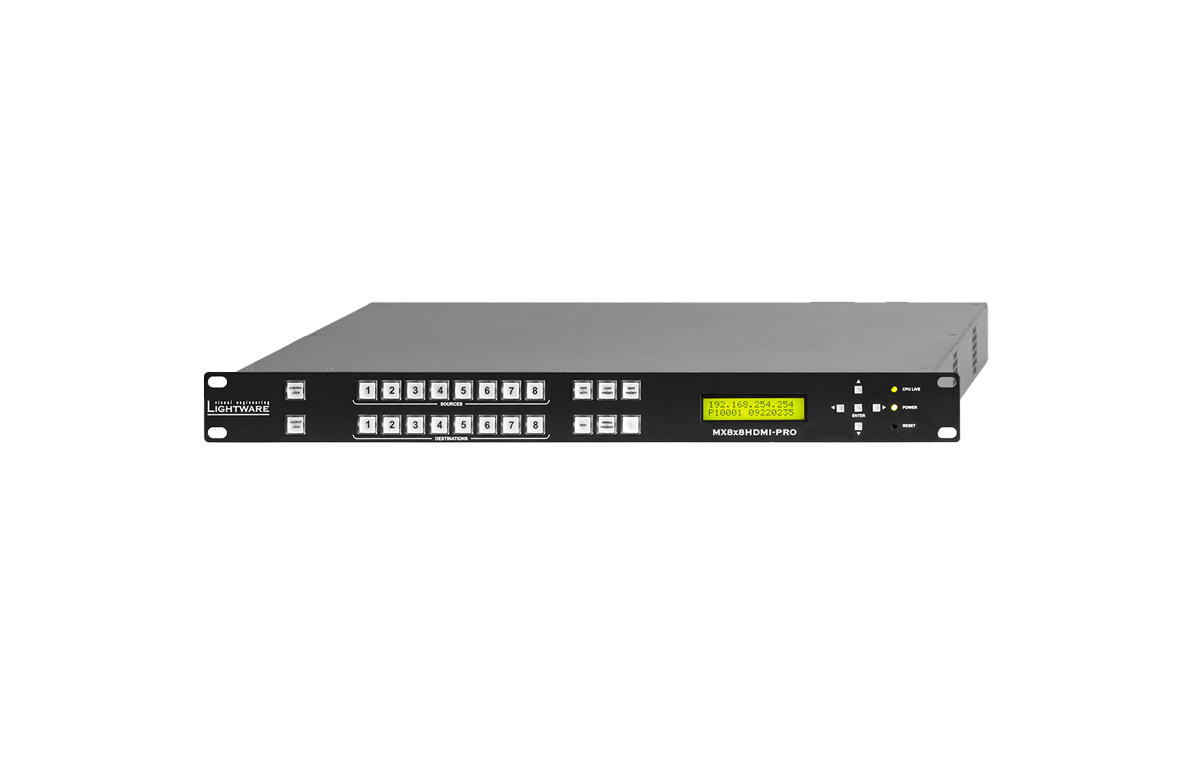

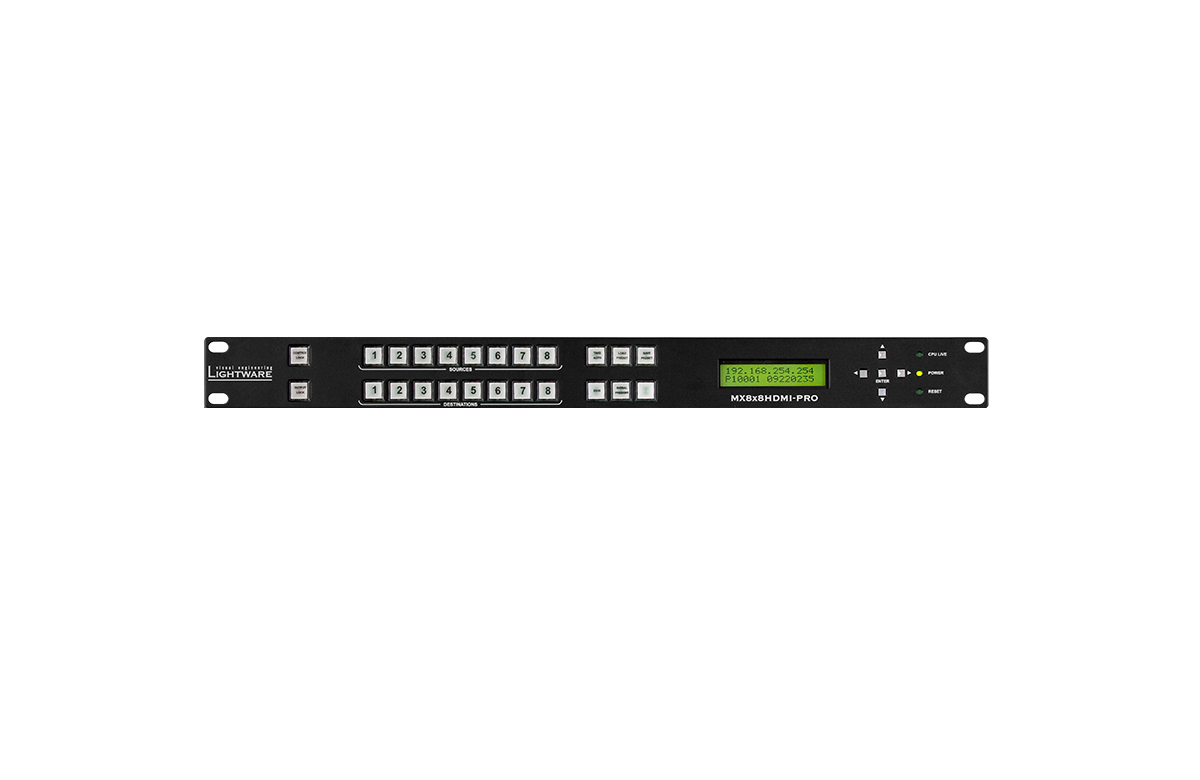

MX8x8HDMI‑Pro supports DVI 1.0, HDCP 1.2 and HDMI 1.3 deep color standards. This high performance router has eight HDMI inputs and eight HDMI outputs. The built‑in sophisticated software and hardware features turn this router into the most flexible integrated solution for AV professionals and high end home theatre applications. Any input can be switched to any one or more outputs without switching delay or frame latency. Supporting HDMI 1.3 36 bit deep color standard, it can be connected to Blu-Ray players, set top boxes, AV receivers or Apple TV.
Advanced HD audio transmission and sample rate conversion assures compatibility with previous generation products while also handling Dolby TrueHD and DTS‑HD.
All inputs are equalized and reclocked for up to 60 meters of DVI copper cable, and all outputs of the matrix router are reclocked for stable, jitter-free signal transmission. The unit can be controlled either via the RS‑232 / RS‑422 port, TCP/IP LAN connection or via the built‑in website.
Features
S/PDIF de-embedded audio output
Frame Detector
(analyze detailed video timings)
High power DVI 5V output
(for fiber adapters, etc)
PCM audio subsampling by 2x or 4x
Active fan cooling
Directly mountable in 19" rack
Built-in universal power supply
Supports embedded audio formats
(including PCM, Dolby Digital and DTS)
Other Features
Maximum resolution
1920x1200 or 2048x1080 (165MHz)
Automatic or adjustable color space
and color range conversion
Input cable equalization
up to 50m at 1080p60Hz (with high quality DVI/HDMI)
HDCP enable/disable function, input
HDMI 1.3, HDCP 1.1 and DVI 1.0
Uncompressed video up to 6.75 Gbps
(225 MHz pixel clock)
Vista Spyder and Barco Encore
Device control via Ethernet
and RS-232
Advanced EDID Management
(50 Factory presets, 50 user programmable slots)
Save and reload
full crosspoint configurations as preset
Front panel LCD menu
and buttons for crosspoint control
Intuitive control software
for device configuration
Non-blocking switching architecture
Built-in website for configuration
Supports deep color signals
(24/30/36 bit RGB/YCbCr 4:4:4)
Pixel Accurate Reclocking
No video compression
HDCP 1.4 compliant
Firmware upgrade through Ethernet
Video format conversion
Automatic or adjustable (DVI, HDMI or HDMI deep color)
No signal latency, zero frame delay
