HDMI-TPX-RX106-V2

SKU: 91710019

Coming soon

AVX (non-switchable) HDMI 2.0 receiver

Interested in this product?

The HDMI-TPX-RX106‑V2 is an AVX (non-switchable) HDMI 2.0 extender receiver designed to extend HDMI signals over a single CATx cable up to 100 m, supporting resolutions up to UHD/4K@60Hz 4:4:4 (18 Gbps) with HDCP support and PoC (Power over Cable) capability.

User Manual

Firmware

Details

Specification Table

Video
Resolution	Up to UHD/4k@60Hz 4:4:4
Signal Type	HDMI 2.0, HDMI 1.x, DVI
Maximum data rate	18 Gbps
Maximum pixel clock	600 MHz
Content protections	HDCP 1.x, HDCP 2.3
Connector type	1x HDMI receptacle type A with screw locking option
Standards	HDMI 2.0, HDMI 1.4, DVI

Ethernet
Control & User Data	1x 1000Base-T via RJ-45
RS-232
Connector type	1x 3Pol Phoenix
Symbol rate	between 4800 and 115200 baud
Default configuration	9600 BAUD, 8N1

General
Powering	External 24W (12V, 2A)	or PoC remote power receiving
		and PoC remote power sending
Power consumption (max)		16W
Thermal dissipation (max)		54.6 BTU/h
Weight		476 g (1.05 lbs)
Dimensions in mm		100.4 W x 151.8 D x 26 H
Dimensions in inch		3.95 W x 5.98 D x 1.02 H
Operating conditions	Ambient temperature	0-50°C
Operating conditions	Relative humidity	0-90% (non-condensing)
Transportation conditions	Ambient temperature	-20-70°C
Transportation conditions	Relative humidity	0-95% (non-condensing)
Compliance		CE, UKCA
Warranty		3 years

Video performance and compatibility

The HDMI-TPX-RX106‑V2 provides reliable HDMI 2.0 signal extension for professional AV applications, supporting video resolutions up to UHD/4K@60Hz 4:4:4 with 18 Gbps bandwidth and a maximum pixel clock of 600 MHz. The device is compatible with HDMI 2.0, HDMI 1.x and DVI signals, and supports HDCP 1.x and HDCP 2.3.

Control interfaces and connections

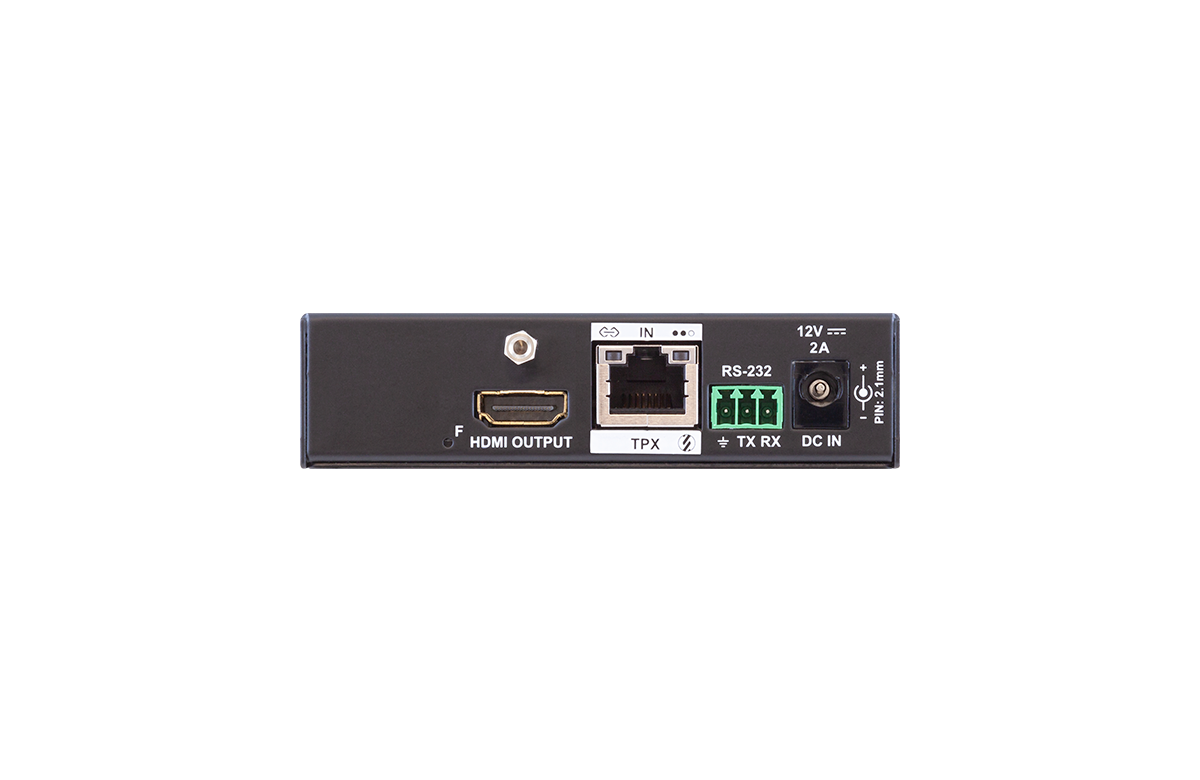

For control and user data, it offers a 1000Base‑T RJ‑45 Ethernet interface and an RS‑232 connection on a 3‑pole Phoenix connector with 4800–115200 baud rates (default 9600, 8, N, 1). Video output is provided on an HDMI Type A connector (with screw locking option).

Powering

Power can be supplied by an external 12V DC / 2A (16 W) adapter or via PoC remote powering, with a maximum consumption of 16 W.

V2 hardware updates

This V2 model is not a new extender generation; it is a hardware platform update that keeps the device’s core functionality and system role unchanged. The V2 version combines the previous multiple status indicators into one dedicated Status LED for simpler operation and improved user experience, and it features an updated housing design with an approximate depth of 151 mm (around 20 mm deeper than the previous version). Minor connector layout adjustments may also be present; for RX106‑V2 this primarily affects the physical placement of the HDMI output connector, so mechanical fit and connector clearance should be verified when replacing earlier units in existing installations. The IR output connector is not included on the V2 model in line with the streamlined V2 hardware platform design.
