HDMI-TPX-TX106-V2
SKU: 91710017
Coming soonAVX (non-switchable) HDMI 2.0 transmitter
Details
Specification Table
| Video | |
| Resolution | Up to UHD/4k@60Hz 4:4:4 |
| Signal Type | HDMI 2.0, HDMI 1.x, DVI |
| Maximum data rate | 18 Gbps |
| Maximum pixel clock | 600 MHz |
| Content protections | HDCP 1.x, HDCP 2.3 |
| Connector type | 1x HDMI receptacle type A with screw locking option |
| Standards | HDMI 2.0, HDMI 1.4, DVI |
| Ethernet | |
| Control & User Data | 1x 1000Base-T via RJ-45 |
| RS-232 | |
| Connector type | 1x 3Pol Phoenix |
| Symbol rate | between 4800 and 115200 baud |
| Default configuration | 9600 BAUD, 8N1 |
| EDID management | |
| 1x pass-through or 1x stored (learned) EDID selected by the push button | |
| General | ||
| Powering | External 24W (12V, 2A) | or PoC remote power receiving |
| and PoC remote power sending | ||
| Power consumption (max) | 16W | |
| Thermal dissipation (max) | 54.6 BTU/h | |
| Weight | 476 g (1.05 lbs) | |
| Dimensions in mm | 100.4 W x 151.8 D x 26 H | |
| Dimensions in inch | 3.95 W x 5.98 D x 1.02 H | |
| Operating conditions | Ambient temperature | 0-50°C |
| Relative humidity | 0-90% (non-condensing) | |
| Transportation conditions | Ambient temperature | -20-70°C |
| Relative humidity | 0-95% (non-condensing) | |
| Compliance | CE, UKCA | |
| Warranty | 3 years | |
Video performance and compatibility
The HDMI-TPX-TX106‑V2 supports video resolutions up to UHD/4K@60Hz 4:4:4 with 18 Gbps bandwidth and a maximum pixel clock of 600 MHz. It is compatible with HDMI 2.0, HDMI 1.x and DVI signals, and supports HDCP 1.x and HDCP 2.3 content protection.
Control, EDID and connectivity

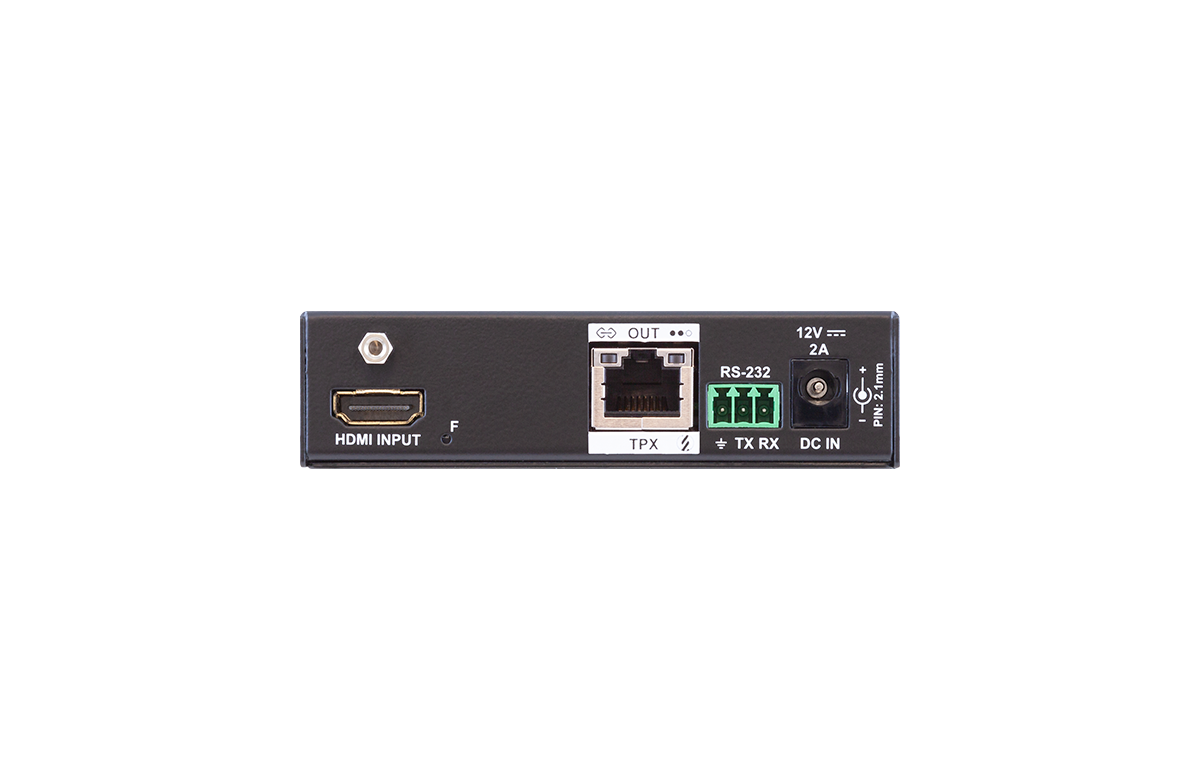

For control and user data, it provides a 1000Base‑T RJ‑45 Ethernet interface and an RS‑232 connection on a 3‑pole Phoenix connector with 4800–115200 baud rates (default 9600, 8, N, 1). Basic EDID management is supported with pass-through or stored (learned) EDID selection via a push button.
Powering
Power can be supplied by an external 24 W power source (12 V DC, 2 A) or via PoC remote power receiving and PoC remote power sending, with a maximum consumption of 24 W.
V2 hardware updates
This V2 model is not a new extender generation; it is a hardware platform update that keeps the device’s core functionality and system role unchanged. The V2 version combines the previous multiple status indicators into one dedicated Status LED for simpler operation and improved user experience, and it features an updated housing design with an approximate depth of 151 mm (around 20 mm deeper than the previous version). Minor connector layout adjustments may also be present; for TX106‑V2 this primarily affects the physical placement of the HDMI connector, so mechanical fit and connector clearance should be verified when replacing earlier units in existing installations. The IR output connector is not included on the V2 model in line with the streamlined V2 hardware platform design.
TPX Series
for Seamless AV Connectivity
The TPX Series offers high-performance signal extension and conversion, ideal for professional AV environments. With support for HDMI, DisplayPort, and other formats, TPX ensures reliable, long-distance transmission for demanding installations. Explore more on our product page.
Features
Supports HDMI 4K signal formats
4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
Bi-directional PoC remote powering
Extends HDMI 2.0
audio, Ethernet, RS-232 up to 100m over one CATx cable
HDR and Low Latency Dolby Vision support
