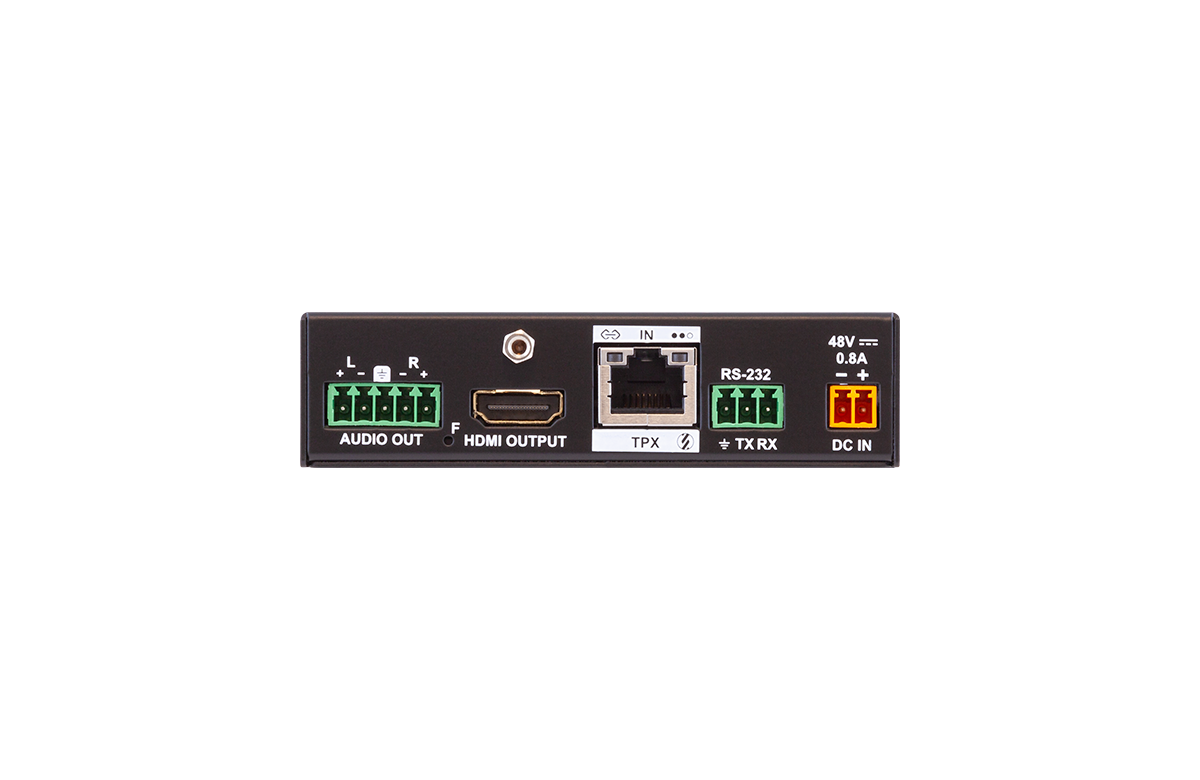

HDMI-TPX-RX109AK-V2

SKU: 91710022

Coming soon

AVX (non-switchable) HDMI 2.0 receiver

Interested in this product?

The HDMI-TPX-RX109AK‑V2 extends high-resolution HDMI signals over long distances while supporting multiple connectivity standards for seamless AV integration.

User Manual

Firmware

Details

Specification Table

Video Outputs
HDMI output
Connector type	19-pole HDMI Type A receptacle
A/V standard	DVI 1.0, HDMI 1.4, HDMI 2.0
HDCP compliance	HDCP 2.3
Color space	RGB, YCbCr
Supported resolutions at 8 bits/color *	up to 4096x2048@60Hz (4:4:4)
	up to 3840x2160@60Hz (4:4:4)
	4096x2048@60Hz (4:2:2) up to 10 bits/color
Audio formats	All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio
TPX input
Connector type	RJ45 connector
Power over Ethernet (PoE)	yes (IEEE 802.3af) (can send and receive power)
Compliance	SDVoE
HDCP compliance	HDCP2.3
Transferred signals	Video, Audio, RS-232, Ethernet
Color space	RGB, YCbCr
Video delay	0 frame
Supported resolutions at 8 bits/color *	up to 4096x2048@60Hz (4:4:4)
	up to 3840x2160@60Hz (4:4:4)
	4096x2048@60Hz (4:2:2) up to 10 bits/color
Audio formats	All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio

Analog audio output
Connector type	5-pole Phoenix connector
Audio formats	2-ch PCM
Sampling frequency	48 kHz
Volume	-78 dB - 0 dB
Balance	0 - 100 (50 = center)
Nominal Differential Output Level @ 0 dB Gain	+4 dBu
Nominal Differential Output Level @ 3 dB Gain	+7 dBu

Control Ports
RS-232 serial port
Connector type	3-pole Phoenix connector
Baud rates	Between 4800 and 115200 Baud
Data bits	8 or 9
Parity	None / Odd / Even
Stop bits	1 / 1.5 / 2
Ethernet port
Connector type	RJ45 female connector (2x)
Ethernet data rate	10/100/1000Base-T, full duplex with autodetect
USB port
Connector type	mini-B type
USB compliance	USB 2.0
Device class	HID

Enclosure
Rack mountable	Yes, 4U high
Enclosure material	1 mm steel
Dimensions in mm	100.4 W x 151.8 D x 26 H
Dimensions in inch	3.95 W x 5.98 D x 1.02 H

Extend 4K HDMI signals

The HDMI-TPX-RX109AK-V2 receiver with AVX technology allow users to extend HDMI 2.0 signals up to 4K60 4:4:4 video resolution through a single CATx cable over distances up to 100 meters. It features a stereo analog audio output for audio content generated from the audio in the input HDMI stream for feeding local audio receivers, and a local HDMI video connector for monitoring or loop-through connection is also a valuable addition that makes this device even more versatile.

Ensure simple connectivity

Beyond the benefits of sending high-resolution video over long distances, the extenders are also capable to handle various connectivity standards, including USB-HID for extending keyboard and mouse, bi-directional RS-232, as well as sending and receiving PoE remote powering.

Take control with EDID management

HDCP 2.3 and basic EDID management functionality are also among the features offered by these devices, such as their connectivity and easy integration into a wide range of AV operations and with 3rd party devices.

V2 hardware updates

This V2 model is not a new extender generation; it is a hardware platform update that keeps the device’s core functionality and system role unchanged. The V2 version combines the previous multiple status indicators into one dedicated Status LED for simpler operation and improved user experience, and it features an updated housing design with an approximate depth of 151 mm (around 20 mm deeper than the previous version). Minor connector layout adjustments may also be present, so mechanical fit and connector clearance should be verified when replacing earlier units in existing installations. The IR output connector is not included on the V2 model in line with the streamlined V2 hardware platform design.
