MX-TPS2-IB-SP
SKU: 91120037

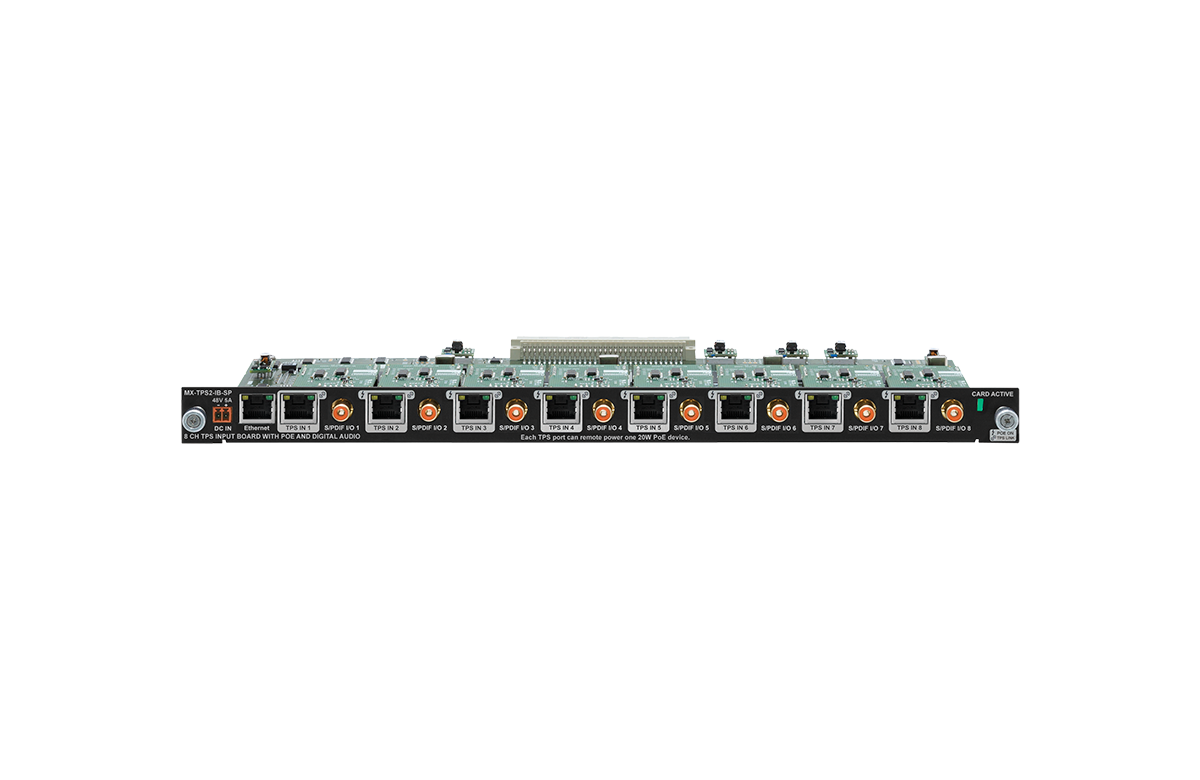

DiscontinuedTPS Input Board with Digital Audio and PoE
Interested in this product?
MX‑TPS2‑IB-SP is an eight channel HDMI and single CAT HDBaseTTM Input Board providing HDMI 1.4, audio, Ethernet and RS‑232 extension on a single CAT5/6/7 cable up to a 100m in HDBaseT and a 170m distance in Long Reach Mode.
Details
Discover the MX Series
Versatile, High-Performance Video Switching Solutions
The MX Series features advanced matrix switchers for simple 4K UHD video and audio management, perfect for conference rooms, event venues, and operation centers.
Discover MX
Specification Table
| Analog Audio Inputs | |
| Volume: | -63 .. 0 dB |
| Gain: | 0 .. 24 dB |
| Balance: | Yes |
| Analog Audio Outputs | |
| Volume: | -78 .. 0 dB |
| Balance: | Yes |
| Specifications | |
| HDCP compliancy: | Yes |
| Max resolution: | Up to 4K, UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0) |
| 3D signal compatibility: | Frame packing, side-by-side, top-bottom |
| Input connectors: | RJ45, S/PDIF, PHOENIX |
|
Power consumption (3.3 V): |
2,9A typ., 6,7A max. |
| Power consumption (5 V): | 5A typ., 6,9A max. |
| Calculated AC Power: | 35W typ., 51,6W max. |
| Heat dissipation: | 120 BTU/h (typ.), 176 BTU/h (max.) |
| Weight: | 1130 g |
| Max cable lengths with the available firmware versions | ||||
| Resolution | Pixel clock rate | Cable lengths (Auto / LR link mode) | ||
| CAT5e AWG24 | CAT7 AWG26** | CAT7 AWG23 | ||
| 1024x768@60Hz | 65 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1280x720p@60Hz | 73,8 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1920x1080p@60Hz / 24bpp | 148,5 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1920x1200@60Hz | 152,9 MHz | 100 m / NA | 90 m / NA | 120 m / NA |
| 1600x1200@60Hz | 162 MHz | 100 m / NA | 90 m / NA | 120 m / NA |
| 1920x1080@60Hz / 36bpp | 223 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| 3840x2160@30Hz UHD | 297 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| 4096x2160@30Hz 4K | 297 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
