MX-TPS2-IB-AP
SKU: 91120036
ShippingTPS Input Board with Analog Audio and PoE
Details
High-Performance Input Board for Signal Extension
MX-TPS2-IB-AP is an eight channel twisted pair input board providing HDMI 1.4, audio, Ethernet, and RS-232 extension on a single CAT5/6/7 cable up to 120m in HDBaseT™ and 170m distance in Long reach mode (maximal resolution is Full HD 1080p in Long reach mode). Resolutions up to 4K, UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0) and 48-bit color depth are handled with all standard audio formats as well as 120Hz 3D signals. The board offers bi-directional RS-232 and Ethernet transmission (each board has a 10/100 uplink connector for the Ethernet network connection) and remote powering option for the TPS extenders with the PoE add-on. The built-in PoE injector function requires the supplied PSU-48vp external power source to be connected directly to the board. The input board with audio add-on has analog stereo connectors and advanced audio functions (HDMI embedded audio signals are managed by the board).
Advanced Audio and Video Processing Capabilities

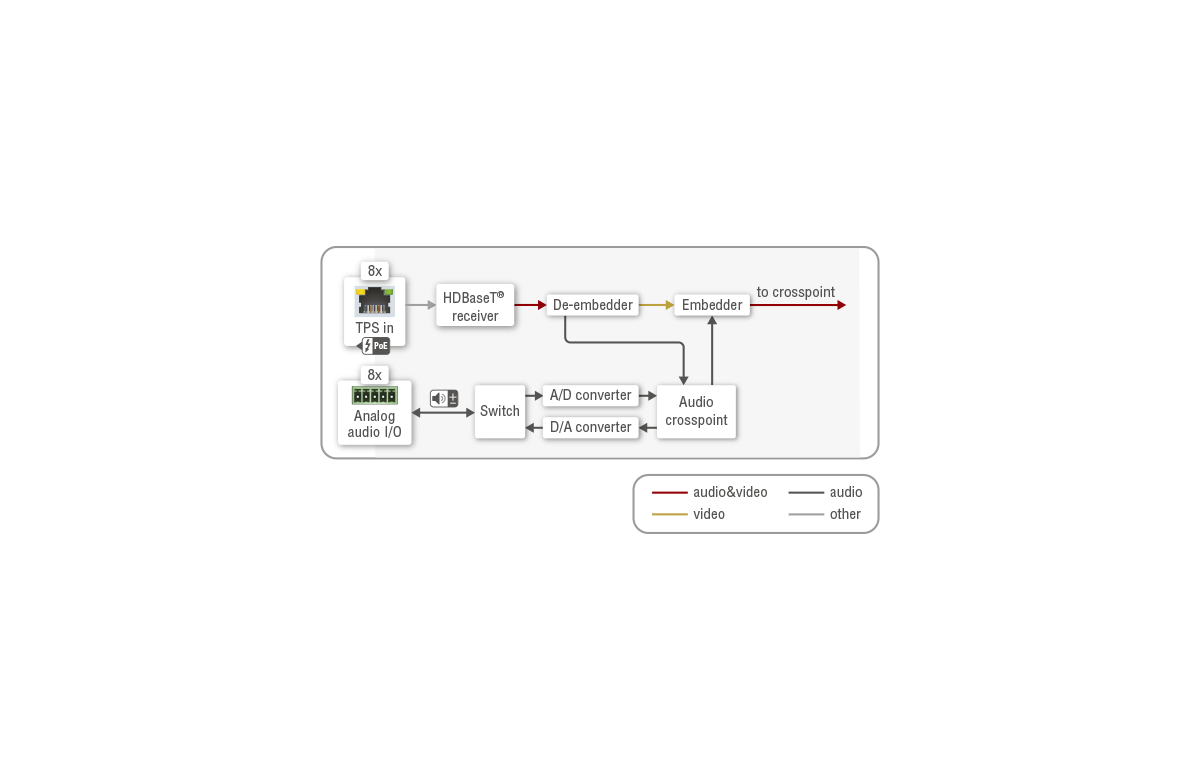

The MX-TPS2-IB-AP also handles HDMI embedded audio. Advanced professional functions such as HDCP enable/disable mode, Pixel Accurate Reclocking, Advanced EDID Management and Frame Detector are also integrated. The board is compatible with deep color, Dolby TrueHD and DTS-HD audio.
Discover the MX Series
Versatile, High-Performance Video Switching Solutions
The MX Series features advanced matrix switchers for simple 4K UHD video and audio management, perfect for conference rooms, event venues, and operation centers.
Specification Table
| Analog Audio Inputs | |
| Volume: | -63 .. 0 dB |
| Gain: | 0 .. 24 dB |
| Balance: | Yes |
| Analog Audio Outputs | |
| Volume: | -78 .. 0 dB |
| Balance: | Yes |
| Specifications | |
| HDCP compliancy: | Yes |
| Max resolution: | Up to 4K, UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0) |
| 3D signal compatibility: | Frame packing, side-by-side, top-bottom |
| Input connectors: | RJ45, S/PDIF, PHOENIX |
| Power consumption (3.3 V): | 3,3A typ., 7,1A max. |
| Power consumption (5 V): | 5A typ., 6,9A max. |
| Calculated AC Power: | 36W typ., 53W max. |
| Heat dissipation: | 123 BTU/h (typ.), 180 BTU/h (max.) |
| Weight: | 1095 g |
| Max cable lengths with the available firmware versions | ||||
| Resolution | Pixel clock rate | Cable lengths (Auto / LR link mode) | ||
| CAT5e AWG24 | CAT7 AWG26** | CAT7 AWG23 | ||
| 1024x768@60Hz | 65 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1280x720p@60Hz | 73,8 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1920x1080p@60Hz / 24bpp | 148,5 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1920x1200@60Hz | 152,9 MHz | 100 m / NA | 90 m / NA | 120 m / NA |
| 1600x1200@60Hz | 162 MHz | 100 m / NA | 90 m / NA | 120 m / NA |
| 1920x1080@60Hz / 36bpp | 223 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| 3840x2160@30Hz UHD | 297 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| 4096x2160@30Hz 4K | 297 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| *with long reach firmware option. Long reach firmware supports pixel clock frequencies up to 148,5 MHz. **Distances are 20% shorter if remote powering used. AWG 26 cables are not recommended with remote powering. |
||||
Features
Built-in PoE power injector*
for remote powering extenders
