GVN-HC-TX220AP-DNT
SKU: 91810040
Coming soon1G AV-over-IP Transmitter for 4K60 signals with Dante audio support
Details

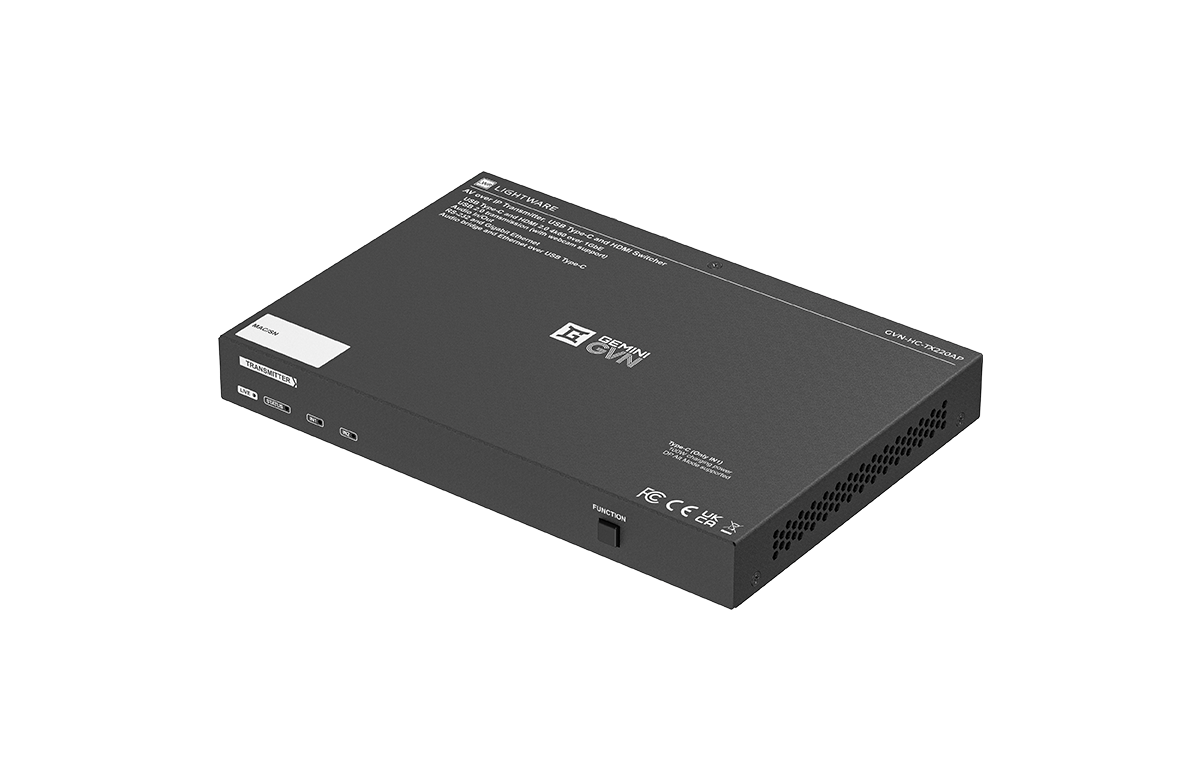

Lightware’s Gemini GVN ecosystem offers a flexible and scalable AV-over-IP solution. The TX220AP supports 4K60 4:4:4 video, HDR, Dolby Vision, and high-bitrate audio formats. It is fully compatible with the GVN Matrix Management Unit (MMU) for centralized configuration and monitoring. The transmitter serves as a bridge between modern USB-C laptops and HDMI-based AV systems.
Unleash Performance with Gemini GVN
High-Density Video Networking for Pro AV Systems
Discover the Gemini GVN product family, offering unparalleled video networking solutions with advanced scalability, robust reliability, and seamless 4K signal distribution. Perfect for large-scale, mission-critical AV environments.
Specification Table
| Parameters | Specification |
| Video Inputs | HDMI 2.0 + USB-C (video, audio, data, Ethernet, Charging) |
| Local Video Output | HDMI 2.0 (up to 4K60 4:4:4) |
| AUDIO Input/output | LPCM stereo (analog) |
| Video Codec | JPEG2000 (visually lossless) |
| Latency (endpoint to endpoint) | ≈ 3 ms E2E at 4K60 |
| Network | 1 Gb Ethernet (CAT5e) + or fiber |

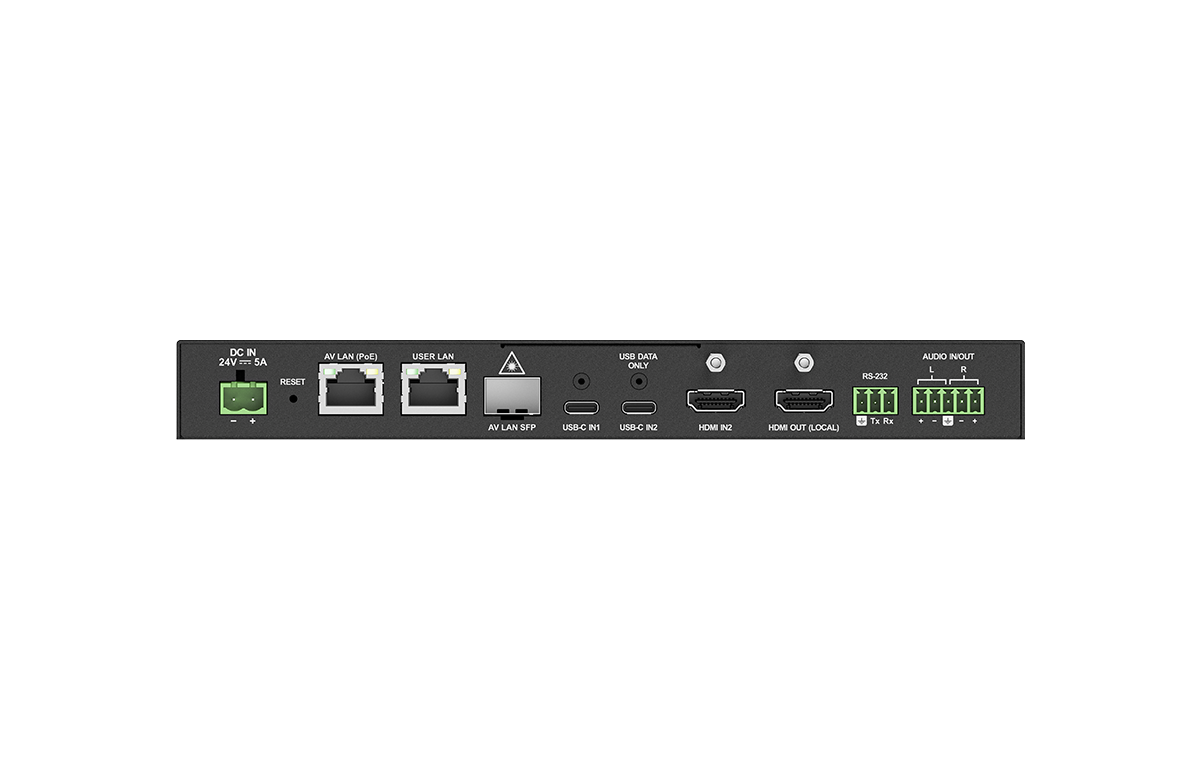

| Connector | 2x RJ45 + SFP |
| USB | USB 2.0 + KVM support |
| Power | PoE (without 100W charging) or 24V / 160W PSU (included) |
| Security | HDCP 2.2 |
| Dimensions | 221 × 25 × 150 mm (W×H×D) |
| Certifications | CB, CE EMC, CE LVD, FCC |
| Dante | 2 channel bi directional Dante capability , with UAC function |
Features
Full USB-C functionality
video, audio, data, Ethernet (100 Mbps), and 100 W charging
Dual input
+ HDCP 2.2
Auto-select
between video inputs
Low-frame latency (3 ms end-to-end)
USB 2.0
Transparent full USB device transmission
USB KVM
Composit USB HID device transmission
PoE PD
and external 24 V/160 W PSU
DANTE capable
Audio bridge over USB-C
Other Features
SFP cage for fiber extension
(Mode and distance depends on the module )optical module optional
Local HDMI 2.0 output
Analog audio support
Audio bridge over USB-C
User Ethernet (100 Mbps) over USB-C
Charging up to 100 W (with PSU)
CAT distance up to 100 m (328 ft)
SFP cage for fiber extension
optical module not included
External UL-certified 24 V/160 W power supply
Security: HDCP 2.2
Preview MJPEG stream
up to 1280×720
CE, CB, FCC certifications
Eco-friendly paper-based packaging

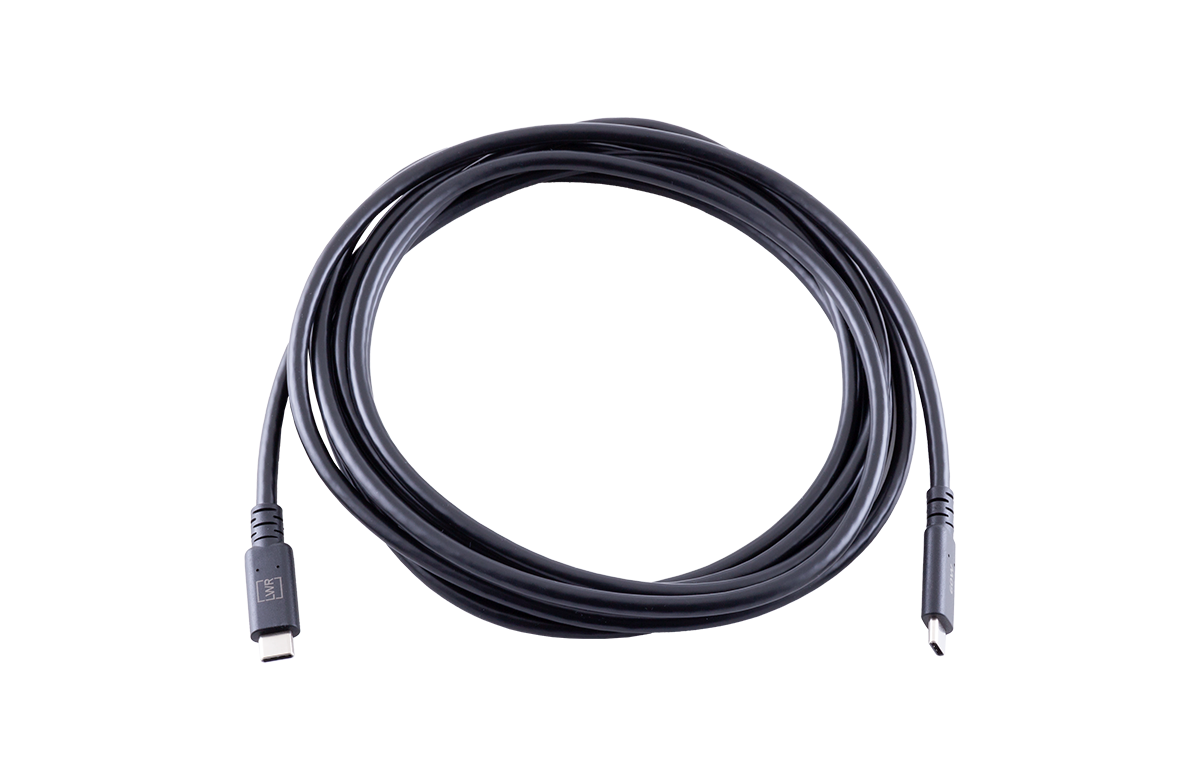

Supplied Accessories
