HDMI-TPN-RX107-V2

SKU: 91710015

Coming soon

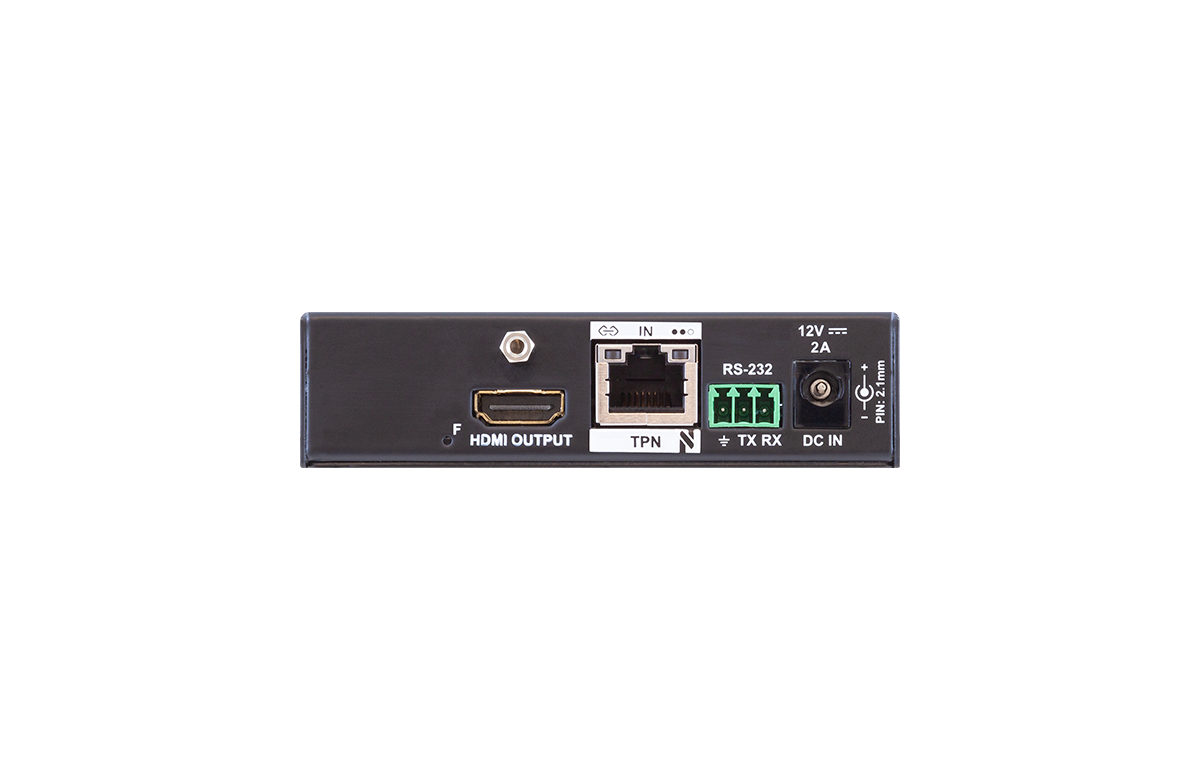

SDVoE compatible HDMI 2.0 receiver

Interested in this product?

The HDMI-TPN-RX107‑V2 is an SDVoE compatible HDMI 2.0 receiver that allows users to extend HDMI 2.0 signals up to 4K60 4:4:4 from a single source to multiple destinations through 10G Ethernet networks, with support for HDMI embedded audio and control integration for professional AV applications

User Manual

Firmware

Details

Specification Table

General
Compliance	UL, CE
Electrical safety	IEC/EN/UL/CSA 62368-1:2014, Class II
EMC (emission)	IEC/EN 55032:2015
EMC (immunity)	IEC/EN 55035:2017
RoHS	EN 63000:2018
Warranty	3 years
Operating temperature	0° to +50°C (+32° to +122°F)
Storage temperature	-30° to +80˚C (-22° to +176˚F)
Operating humidity	10% to 90%, non-condensing
Cooling	passive

Power
Power supply option	Power adaptor / PoE
Power consumption (max)	TBD
Power consumption (min)
Heat dissipation	TBD
Power over Ethernet (PoE)	via TPN output (IEEE802.3af) (can receive power)
Power adaptor
Supported power source	100-240 V AC; 50/60 Hz
Supplied power	12V DC, 2A
AC power plug	Interchangable (EU, UK, JP/US, AUS/NZ)
DC power plug	2-pole Phoenix, orange

Enclosure
Rack mountable	No
Enclosure material	1 mm steel
Dimensions in mm	100.4 W x 151.8 D x 26 H
Dimensions in inch	3.95 W x 5.98 D x 1.02 H
Weight	0.476 kG

Video inputs
TPN input
Connector type	RJ45 connector
Power over Ethernet (PoE)	IEEE 802.3af (PD)
Compliance	SDVoE
HDCP compliance	HDCP2.3
Transferred signals	Video, Audio, RS-232, Ethernet
Color space	RGB, YCbCr
Video delay	0 frame
Supported resolutions at 8 bits/color *	up to 4096x2048@60Hz (4:4:4)
	up to 3840x2160@60Hz (4:4:4)
	4096x2048@60Hz (4:2:2) up to 10 bits/color
Audio formats	All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio

Video Outputs
HDMI output
Connector type	19-pole HDMI Type A receptacle
A/V standard	DVI 1.0, HDMI 1.4, HDMI 2.0
HDCP compliance	HDCP 2.3
Color space	RGB, YCbCr
Supported resolutions at 8 bits/color *	up to 4096x2048@60Hz (4:4:4)
	up to 3840x2160@60Hz (4:4:4)
	4096x2048@60Hz (4:2:2) up to 10 bits/color
Audio formats	All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio
* All standard VESA and CEA resolutions up to 600MHz (HDMI2.0) and other custom resolutions up to 600Mhz are supported.

Control Ports
RS-232 serial port
Connector type	3-pole Phoenix connector
Baud rates	Between 4800 and 115200 Baud
Data bits	8 or 9
Parity	None / Odd / Even
Stop bits	1 / 1.5 / 2
Ethernet port
Connector type	RJ45 female connector (2)
Ethernet data rate	10/100/1000Base-T, full duplex with autodetect
Power over Ethernet (PoE)	No

Extend 4K HDMI Signals

The HDMI-TPN-TX107-V2 and HDMI-TPN-RX107-V2 devices with SDVoE technology are designed to extend HDMI 2.0 signals up to 4K60 4:4:4 video resolution from a single source to multiple destinations through 10G Ethernet networks.

Ensure Simple Connectivity

In addition to high-resolution video transmission, the extenders support multiple connectivity standards, including a 1G user Ethernet channel over the 10G link and RS-232. The additional Gigabit Ethernet port enables connecting another network device directly through the TPN extender, which can be useful for controlling external devices such as projectors and displays.

Take Control with EDID Management

HDCP 2.3 and basic EDID management functionality are also provided to support smooth interoperability and integration into a wide range of AV operations and third-party environments.

Compatibility and ecosystem integration

When used in direct point-to-point mode, the transmitter and receiver are compatible with Lightware’s TPX family of products. Within a TPN-based system, the device can operate as part of a unified SDVoE ecosystem, where Taurus TPN, HDMI-TPN, and OPTN endpoints can be managed together by the Matrix Management Unit (MMU) for centralized configuration and consistent operation across mixed endpoint types.

V2 hardware updates

This V2 model is not a new extender generation; it is a hardware platform update that keeps the device’s core functionality and system role unchanged. The V2 version combines the previous multiple status indicators into one dedicated Status LED for simpler operation and improved user experience, and it features an updated housing design with an approximate depth of 151 mm (around 20 mm deeper than the previous version). Minor connector layout adjustments may also be present, so mechanical fit and connector clearance should be verified when replacing earlier units in existing installations. The IR output connector is not included on the V2 model as part of the streamlined V2 hardware platform design.

HDMI Solutions

Effortless AV Connectivity for Professionals

The HDMI-TPN series delivers high-performance HDMI signal extension, ensuring reliable video and audio transmission for professional AV installations over long distances.

Discover TPN

Unify All TPN Endpoints into One AV-over-IP System

Within a TPN-based system, this device operates as part of a unified SDVoE ecosystem. When managed by the Matrix Management Unit (MMU) Taurus TPN, HDMI-TPN, and OPTN endpoints work together on the same network, enabling centralized configuration and consistent operation across mixed endpoint types.
