HDMI-TPN-TX107-V2
SKU: 91710016
Coming soonSDVoE compatible HDMI 2.0 transmitter
Details
Specification Table
| General | |
| Compliance | UL, CE |
| Electrical safety | IEC/EN/UL/CSA 62368-1:2014, Class II |
| EMC (emission) | IEC/EN 55032:2015 |
| EMC (immunity) | IEC/EN 55035:2017 |
| RoHS | EN 63000:2018 |
| Warranty | 3 years |
| Operating temperature | 0° to +50°C (+32° to +122°F) |
| Operating humidity | 10% to 90%, non-condensing |
| Cooling | passive |
| Power | |
| Power supply option | Power adaptor / PoE |
| Power consumption (max) | 8.1W |
| Power consumption (min) | |
| Heat dissipation | 27.6 BTU/h (max) |
| Power over Ethernet (PoE) | via TPN output (IEEE802.3af) (can receive power) |
| Power adaptor | |
| Supported power source | 100-240 V AC; 50/60 Hz |
| Supplied power | 12V DC, 2A |
| AC power plug | Interchangable (EU, UK, JP/US, AUS/NZ) |
| DC power plug | 2-pole Phoenix, orange |
| Enclosure | |
| Rack mountable | No |
| Enclosure material | 1 mm steel |
| Dimensions in mm | 100.4 W x 151.8 D x 26 H |
| Dimensions in inch | 3.95 W x 5.98 D x 1.02 H |
| Weight | 0.476 kG |
| Video inputs | |
| HDMI input | |
| Connector type | 19-pole HDMI Type A receptacle |
| A/V standard | DVI 1.0, HDMI 1.4, HDMI 2.0 |
| HDCP compliance | HDCP 2.3 |
| Color space | RGB, YCbCr |
| Video delay | 0 frame |
| Supported resolutions at 8 bits/color * | |
| up to 4096x2048@60Hz (4:4:4) | |
| up to 3840x2160@60Hz (4:4:4) | |
| 4096x2048@60Hz (4:2:2) up to 10 bits/color | |
| Reclocking | Pixel Accurate Reclocking |
| 3D support | yes |
| Audio formats | All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio |
| EDID management | |
| EDID emulation | yes, default EDID and 1 locally stored EDID |
| EDID memory | 1 stored EDID |
| Supported standard | EDID v1.3 |
| Video Outputs | |
| TPN output | |
| Connector type | RJ45 connector |
| Power over Ethernet (PoE) | IEEE 802.3af (PD) |
| Compliance | SDVoE |
| HDCP compliance | HDCP2.3 |
| Transferred signals | Video, Audio, RS-232, Ethernet |
| Color space | RGB, YCbCr |
| Video delay | 0 frame |
| Supported resolutions at 8 bits/color * | up to 4096x2048@60Hz (4:4:4) |
| up to 3840x2160@60Hz (4:4:4) | |
| 4096x2048@60Hz (4:2:2) up to 10 bits/color | |
| Audio formats | All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio |
| Control Ports | |
| RS-232 serial port | |
| Connector type | 3-pole Phoenix connector |
| Baud rates | Between 4800 and 115200 Baud |
| Data bits | 8 or 9 |
| Parity | None / Odd / Even |
| Stop bits | 1 / 1.5 / 2 |

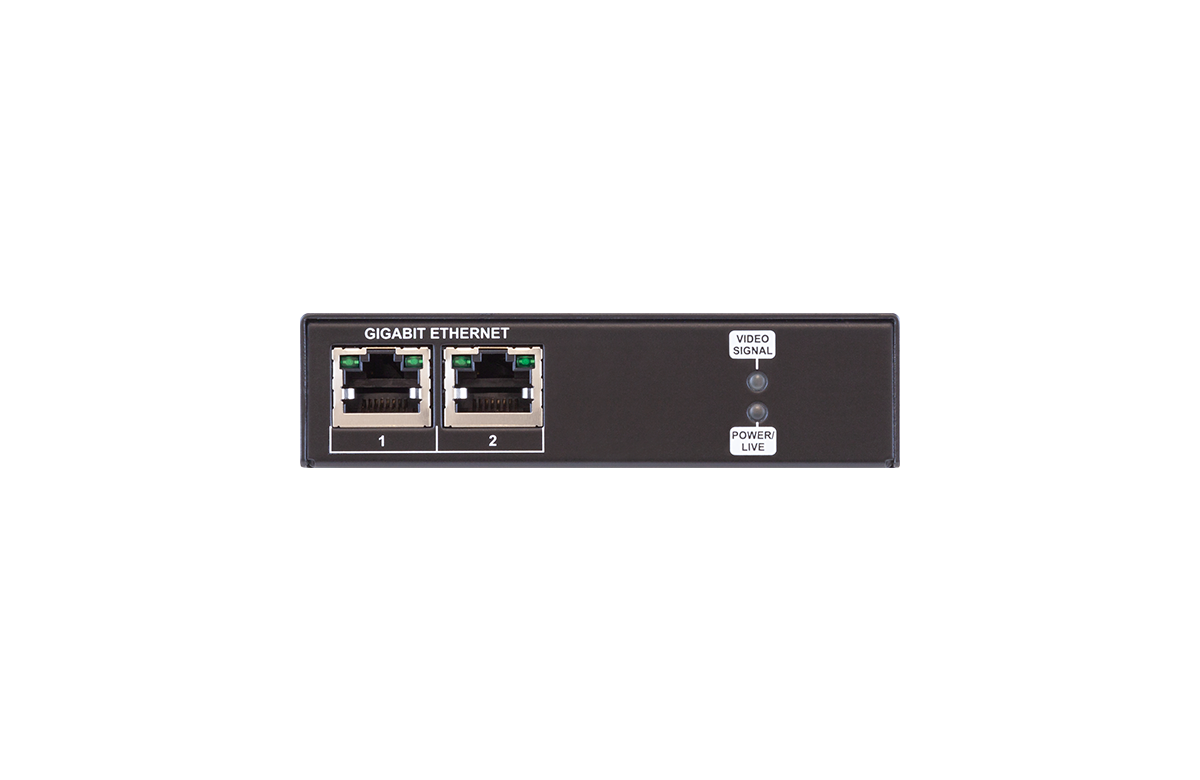

| Ethernet port | |
| Connector type | RJ45 female connector (2) |
| Ethernet data rate | 10/100/1000Base-T, full duplex with autodetect |
| Power over Ethernet (PoE) | No |
Extend 4K HDMI signals over 10G networks
The HDMI-TPN-TX107‑V2 is built on SDVoE technology to transmit HDMI 2.0 video up to 4096×2048@60Hz (4:4:4) and 3840×2160@60Hz (4:4:4) with zero-frame video delay, while supporting HDMI 2.0 embedded audio formats including multi-channel PCM, Dolby True-HD, and DTS-HD Master Audio.
Connectivity and control channels
Beyond video and audio transport, the device supports integration-friendly connectivity, including a user Ethernet channel and the ability to carry control such as RS‑232 for end-to-end system control in AV-over-IP environments.
EDID and content protection
HDCP 2.3 support and EDID functionality (including EDID emulation with a default EDID and one locally stored EDID) help ensure consistent interoperability with sources and displays across a wide range of deployments.
Powering
The unit supports powering via power adaptor or PoE (receiving power via the TPN output, IEEE 802.3af) with a maximum power consumption of 8.1 W.
Compatibility and ecosystem integration
When used in direct point-to-point mode, the transmitter and receiver are compatible with Lightware’s TPX family of products. Within a TPN-based system, the device can operate as part of a unified SDVoE ecosystem, where Taurus TPN, HDMI-TPN, and OPTN endpoints can be managed together by the Matrix Management Unit (MMU) for centralized configuration and consistent operation across mixed endpoint types.
V2 hardware updates

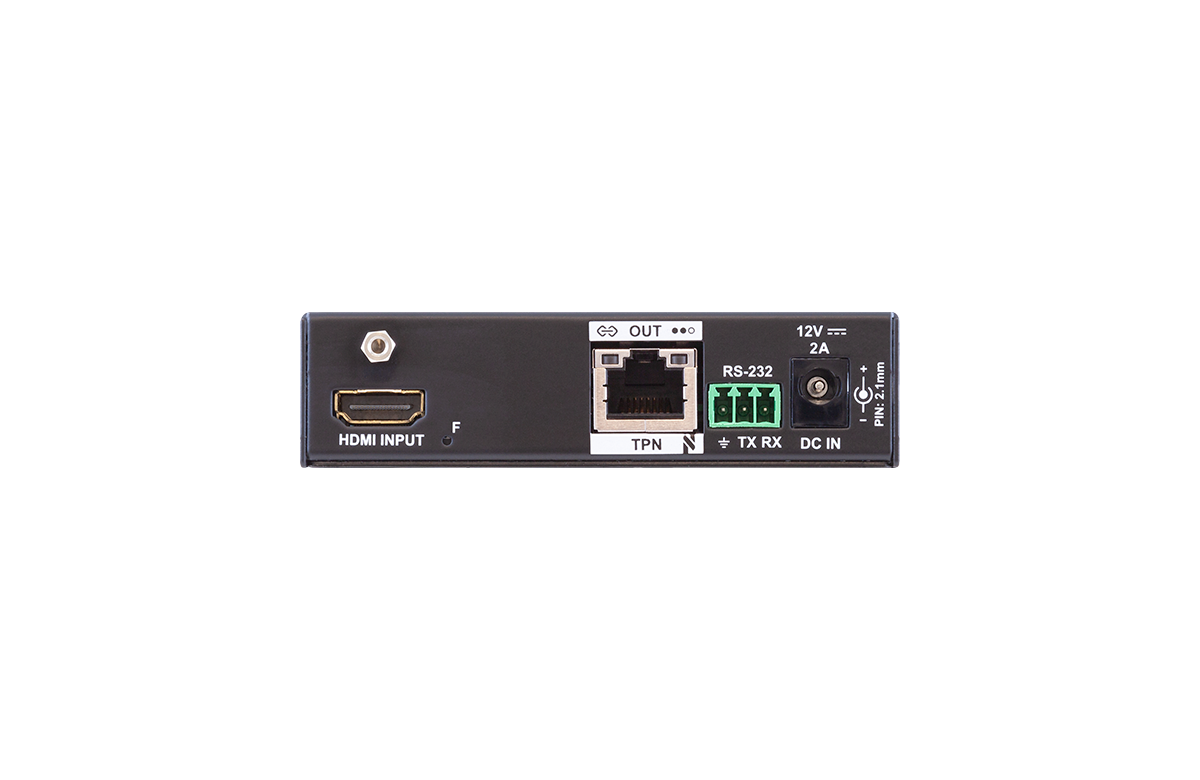

This V2 model is not a new extender generation; it is a hardware platform update that keeps the device’s core functionality and system role unchanged. The V2 version combines the previous multiple status indicators into one dedicated Status LED for simpler operation and improved user experience, and it features an updated housing design with an approximate depth of 151 mm. Minor connector layout adjustments may also be present (primarily around the HDMI input-side panel layout), so mechanical fit and connector clearance should be verified when replacing earlier units in existing installations. The IR output connector is not included on the V2 model in line with the streamlined V2 hardware platform design.
HDMI Solutions
Effortless AV Connectivity for Professionals
The HDMI-TPN series delivers high-performance HDMI signal extension, ensuring reliable video and audio transmission for professional AV installations over long distances.
Unify All TPN Endpoints into One AV-over-IP System
Within a TPN-based system, this device operates as part of a unified SDVoE ecosystem. When managed by the Matrix Management Unit (MMU) Taurus TPN, HDMI-TPN, and OPTN endpoints work together on the same network, enabling centralized configuration and consistent operation across mixed endpoint types.
Features
Enables HDMI 2.0 transmission
embedded audio, Ethernet, RS-232 to multiple receiver devices through a 10G Ethernet switch
Plug&Play compatible
with Lightware TPX devices
Remote powered through CATx
PoE PD
Supports HDMI 4K signal formats
4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
HDR and Low Latency Dolby Vision support
