HDMI-TPS-RX110AY-Plus
SKU: 91540070
ShippingHDBaseT™ Receiver with Relay Modules and Balanced Audio Out
Details
Simplify Control and Audio Management with HDBaseT™ TPS Receiver
This dual relay capable HDBaseT™ compatible TPS receiver has one PoE capable TPS input and one HDMI output, and features audio de-embedding.

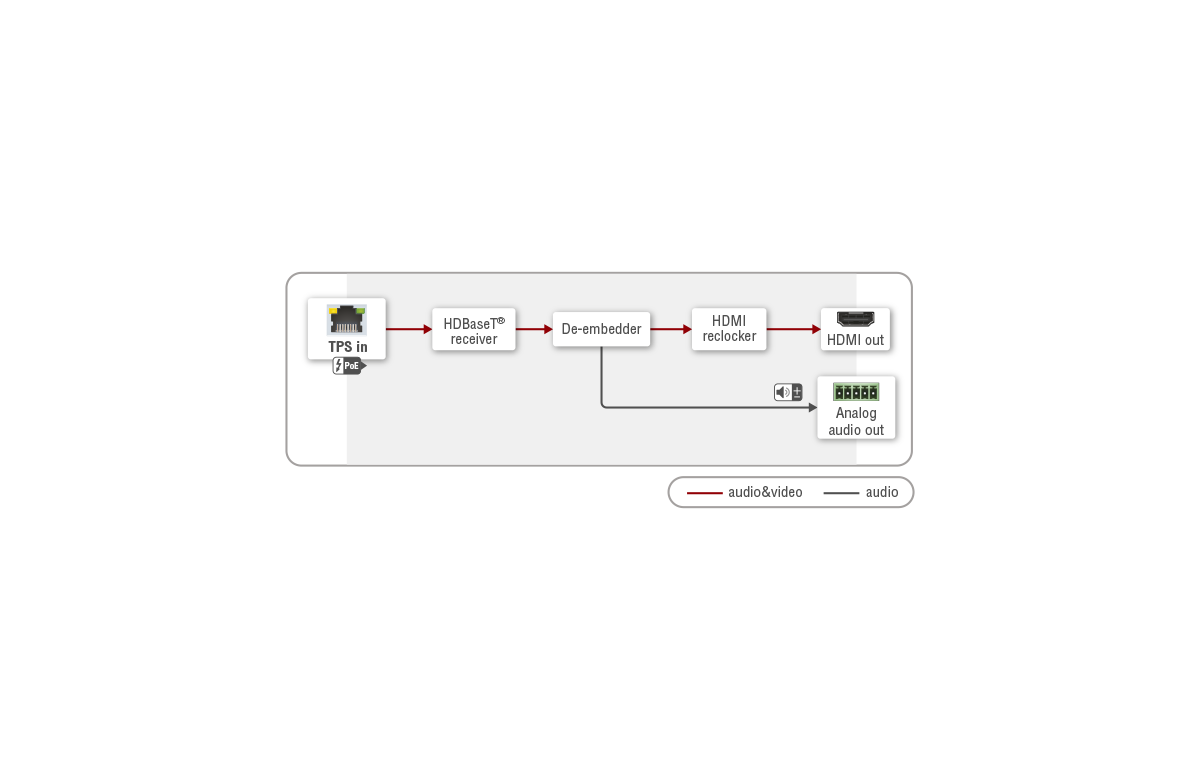

The HDMI audio is de-embedded to the balanced audio output via a Phoenix (Euroblock) connector, the audio port has volume control. The unit is HDCP compliant and has 4K/UHD and 3D capabilities. The built-in Event Manager room control feature provides the necessary control in a less complex application environment. Both the Event Manager feature and the dual relay module of the device are configurable via the freely available Lightware Device Controller software. USB, RS-232, IR (in and out) and Ethernet ports provide further connection options for control.
TPS Series
Reliable Connectivity for Any Environment
TPS extenders provide robust and flexible AV solutions for a variety of professional environments, supporting HDMI, DVI, and VGA signals. These devices offer high-quality transmission over twisted pair cables, ensuring reliable performance for critical installations.
Specification Table
| Specifications | |
| Resolution: |
Up to 4K UHD 3840×2160@30Hz,1600x-1200@60Hz, FullHD 1920x1080@60Hz |
| Digital audio formats: |
Supports up to 8 channel PCM, Dolby TrueHD and DTS-HD Master Audio 7.1 formats |
| Input cable equalization: | Automatic max 170 m* |
| EDID emulation: | Yes, Advanced EDID Management |
| EDID memory: | 120 factory preset, 15 user programmable |
| HDCP pass through: | Yes |
| RS-232 pass-through: | Yes, configurable |
| RS-232 (control option): |
9600, 19200, 38400, 57600, 115200 Baud Rx,Tx (local or through TPS)(default: 57600) |
| Local power: | 2-pole, DC 12V, 1A |
| Power over TPS: | DC 48V, 0.3A |
| Power consumption: | max. 10 W |
| Dimensions: | 221 W x 100.4 D x 26 H mm |
| Enclosure: | 1 mm metal |
| Weight: | 610 g / product |
| Compliance: | CE |
| Warranty: | 3 years |
| *Depends on cable category and quality | |
| Connectors | |
| Digital video output: | HDMI connector |
| Balanced audio output: | 5-pole Phoenix (Euroblock) connector |
| Relays: | 2×2-pole Phoenix (Euroblock) connector |
| Ethernet: | RJ45 |
|
IR in and out: |
3.5mm jack |
| TPS input | RJ45 |
| Serial port: | 3-pole Phoenix (Euroblock) |
| Power: |
Locking DC connector (2.1 / 5.5 mm) |
| Analog Audio Output | |
| Volume: | -57 .. 0 dB |
| Mute function: | yes |
| Balance: | -100 .. 0 .. 100% |
| Max Cable Lengths with the Available Firmware Versions | ||||
| Resolution | Pixel clock rate | Cable lengths (Auto / LR link mode) | ||
| CAT5e AWG24 | CAT7 AWG26** | CAT7 AWG23 | ||
| 1024x768@60Hz | 65 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1280x720p@60Hz | 73,8 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1920x1080p@60Hz / 24bpp | 148,5 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1920x1200@60Hz | 152,9 MHz | 100 m / NA | 90 m / NA | 120 m / NA |
| 1600x1200@60Hz | 162 MHz | 100 m / NA | 90 m / NA | 120 m / NA |
| 1920x1080@60Hz / 36bpp | 223 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| 3840x2160@30Hz UHD | 297 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| 4096x2160@30Hz 4K | 297 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| *with long reach firmware option. Long reach firmware supports pixel clock frequencies up to 148,5 MHz. **Distances are 20% shorter if remote powering used. AWG 26 cables are not recommended with remote powering. |
||||
Features
Cisco VC room integration compatibility
Advanced control feature pack
for 3rd party video conference collaboration
Built-in Event Manager control automation
1920x1080@120Hz/4:4:4
4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
Command injection on RS-232 and IR ports

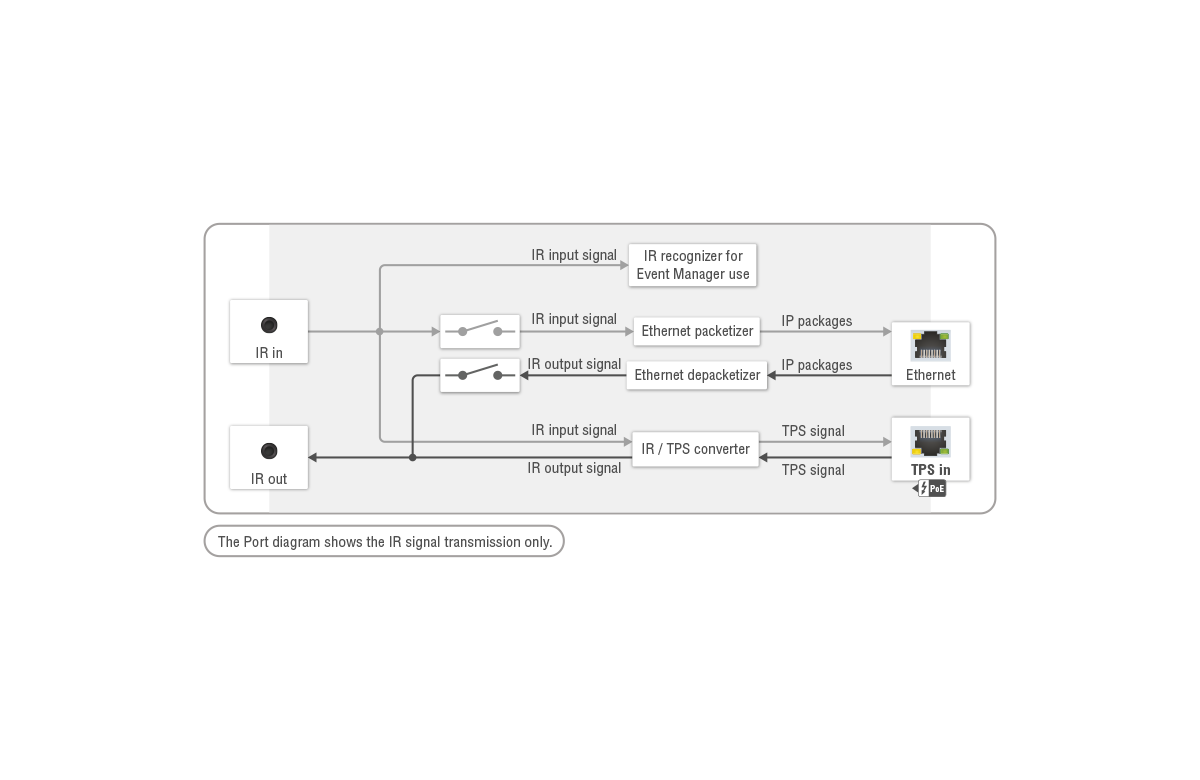

Bi-directional RS-232 and IR extension
pass-through and control
Extends DVI or HDMI 1.4
