HDMI-TPS-RX220AK
SKU: 91540022
ShippingHDBaseTTM Compatible TPS Receiver with USB KVM
Details
Specification Table
| Specifications | |
| Resolution: |
Up to 4K UHD 3840×2160@30Hz,1600x-1200@60Hz, FullHD 1920x1080@60Hz |
| Digital audio formats: |
Supports up to 8 channel PCM, Dolby TrueHD and DTS-HD Master Audio 7.1 formats |
| Input cable equalization: | Automatic max 170 m* |
| EDID emulation: | Yes, Advanced EDID Management |
| EDID memory: | 120 factory preset, 15 user programmable |
| HDCP pass through: | Yes |
| RS-232 pass-through: | Yes, configurable |
| RS-232 (control option): |
9600, 19200, 38400, 57600, 115200 Baud Rx,Tx (local or through TPS)(default: 57600) |
| Local power: | 2-pole, DC 12V, 1A |
| Power over TPS: | DC 48V, 0.3A |
| Power consumption: | max. 10 W |
| Dimensions: | 221 W x 100.4 D x 26 H mm |
| Enclosure: | 1 mm metal |
| Weight: | 610 g / product |
| Compliance: | CE |
| Warranty: | 3 years |
| *Depends on cable category and quality | |
| Connectors | |
| Digital video output: | 2 x HDMI connector |
| Digital video output: | 1 x HDMI connector |
| Balanced audio output: | 3.5mm jack |
| Ethernet: | 1 x RJ45 |
|
USB device: |
2 x USB-A |
| USB control: | mini-USB-B connector |
| IR in and out: | 3.5mm jack |
| TPS input | 1 x RJ45 |
| Serial port: | 3-pole Phoenix (Euroblock) |
| Power: |
Locking DC connector (2.1 / 5.5 mm) |
| Analog Audio Output | |
| Volume: | -57 .. 0 dB |
| Mute function: | yes |
| Balance: | -100 .. 0 .. 100% |
| Max Cable Lengths with the Available Firmware Versions | ||||
| Resolution | Pixel clock rate | Cable lengths (Auto / LR link mode) | ||
| CAT5e AWG24 | CAT7 AWG26** | CAT7 AWG23 | ||
| 1024x768@60Hz | 65 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1280x720p@60Hz | 73,8 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1920x1080p@60Hz / 24bpp | 148,5 MHz | 100 m / 130 m* | 90 m / 120 m* | 120 m / 170 m* |
| 1920x1200@60Hz | 152,9 MHz | 100 m / NA | 90 m / NA | 120 m / NA |
| 1600x1200@60Hz | 162 MHz | 100 m / NA | 90 m / NA | 120 m / NA |
| 1920x1080@60Hz / 36bpp | 223 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| 3840x2160@30Hz UHD | 297 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| 4096x2160@30Hz 4K | 297 MHz | 70 m / NA | 70 m / NA | 100 m / NA |
| *with long reach firmware option. Long reach firmware supports pixel clock frequencies up to 148,5 MHz. **Distances are 20% shorter if remote powering used. AWG 26 cables are not recommended with remote powering. |
||||
Simplify Integration and Control
The Lightware HDMI-TPS-RX220AK receiver offers seamless HDBaseT™ integration with additional Lightware product lines and developments, including TPS matrices and 25G boards. The device receives digital video at a resolution up to 4K, as well as audio and control up to 170 meters* over a single CAT cable.

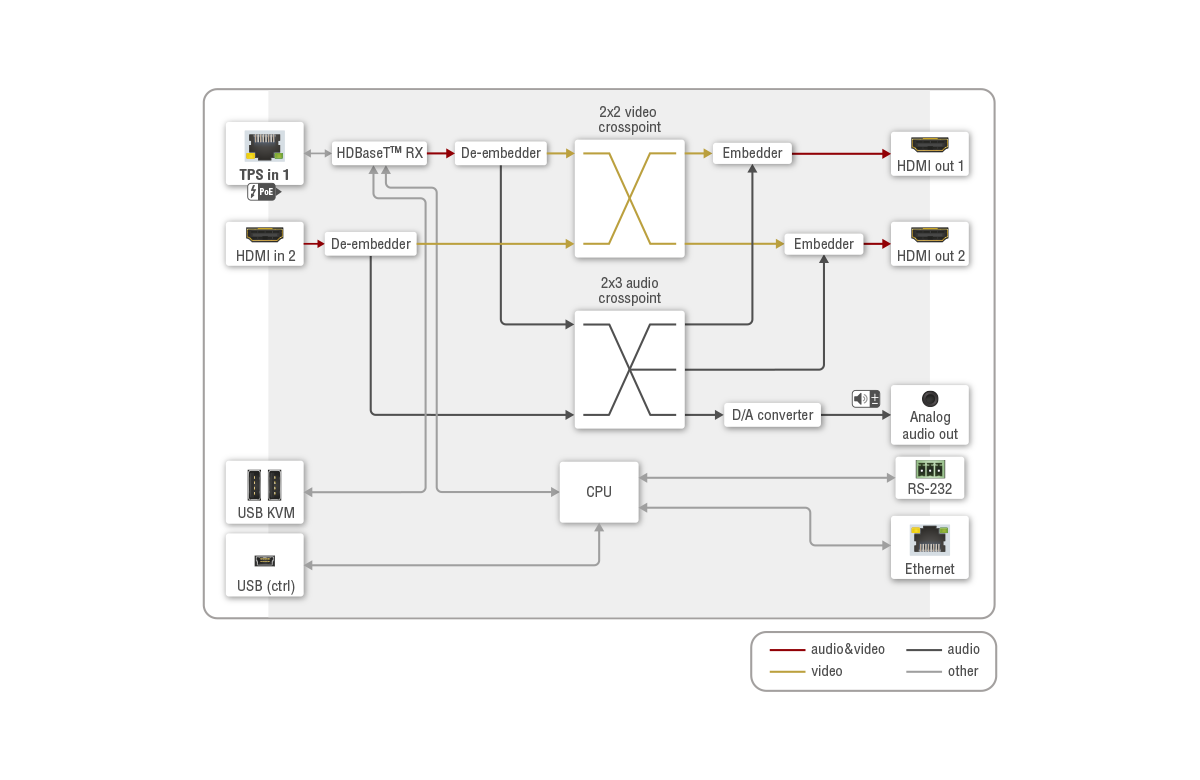

The extender features audio de-embedding and allows independent switching between the TPS input and local HDMI input, which combined with the two HDMI outputs essentially makes this device a 2x2 matrix switcher.
Furthermore, the device utilizes control over USB KVM in a point-to-point extension when connected to the UMX-TPS-TX140K transmitter, and can also be remotely powered over TPS link with PoE (IEEE 802.3af), a useful array of features to further simplify the operation for system integrators and users.
TPS Series
Reliable Connectivity for Any Environment
TPS extenders provide robust and flexible AV solutions for a variety of professional environments, supporting HDMI, DVI, and VGA signals. These devices offer high-quality transmission over twisted pair cables, ensuring reliable performance for critical installations.
Features
Local HDMI Input
Cisco VC room integration compatibility
Advanced control feature pack
for 3rd party video conference collaboration
Built-in Event Manager control automation
1920x1080@120Hz/4:4:4
4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
Audio de-embedding
USB KVM (HID) extension
Command injection on RS-232 and IR ports

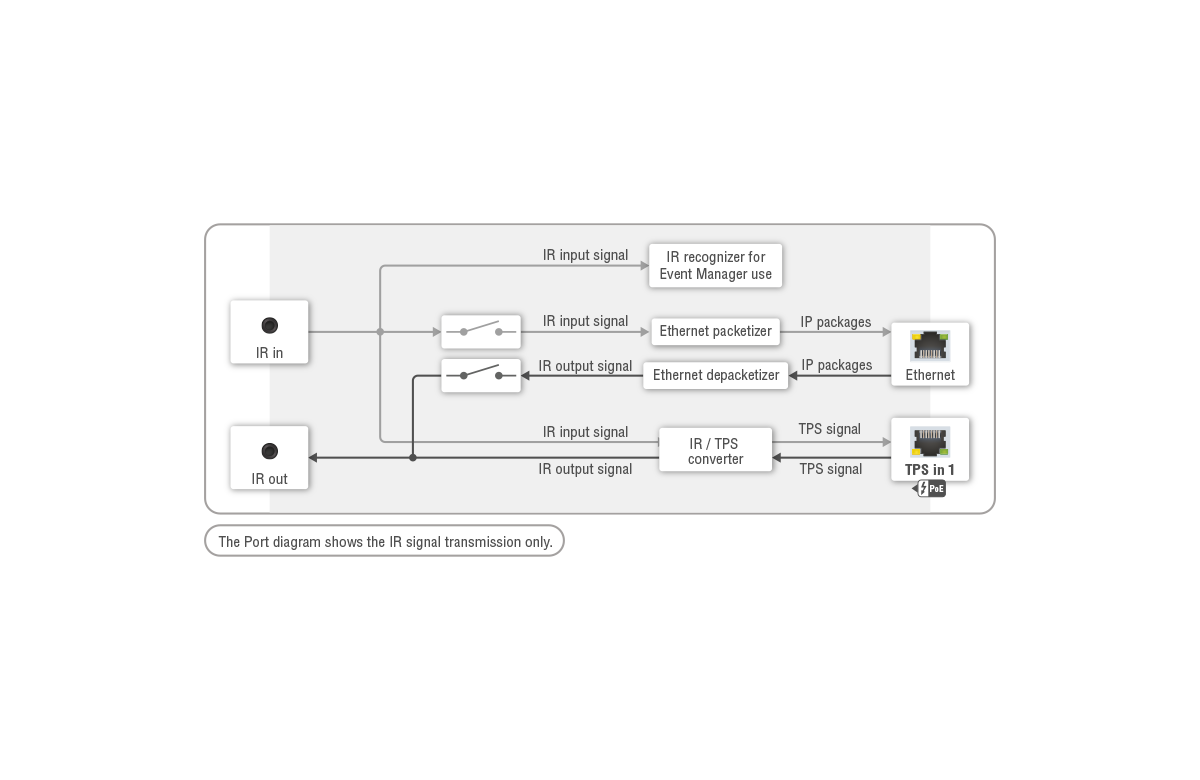

Bi-directional RS-232 and IR extension
pass-through and control
Extends DVI or HDMI 1.4
